Quick Details
-
Brand Name:
-
AIMIX
-
Motor Power:
-
5.5kw
-
Charging Capacity:
-
1200L
-
Reclaiming capacity:
-
1200L
-
Speed of Mixing Drum:
-
13rpm
-
Water Supply Mode:
-
Automatic
-
Working Cycle Period:
-
4700
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
7730*2700*2080
-
Weight (KG):
-
9000 kg
-
Product name:
-
Aimix self loading concrete mixer truck
-
Water tank:
-
620L
-
Oil tank:
-
16L
-
Fuel tank:
-
75L
-
Gear box model:
-
ZL-280
-
Maximum grade:
-
30
-
Keywords:
-
self loading concrete mixer truck
-
Local Service Location:
-
United Kingdom
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE, ISO
Quick Details
-
Mixing Power:
-
0.5kw
-
Productivity:
-
16M3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AIMIX
-
Motor Power:
-
5.5kw
-
Charging Capacity:
-
1200L
-
Reclaiming capacity:
-
1200L
-
Speed of Mixing Drum:
-
13rpm
-
Water Supply Mode:
-
Automatic
-
Working Cycle Period:
-
4700
-
Discharge Way:
-
Automatic
-
Outline Dimension:
-
7730*2700*2080
-
Weight (KG):
-
9000 kg
-
Product name:
-
Aimix self loading concrete mixer truck
-
Water tank:
-
620L
-
Oil tank:
-
16L
-
Fuel tank:
-
75L
-
Gear box model:
-
ZL-280
-
Maximum grade:
-
30
-
Keywords:
-
self loading concrete mixer truck
-
Local Service Location:
-
United Kingdom
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
CE, ISO

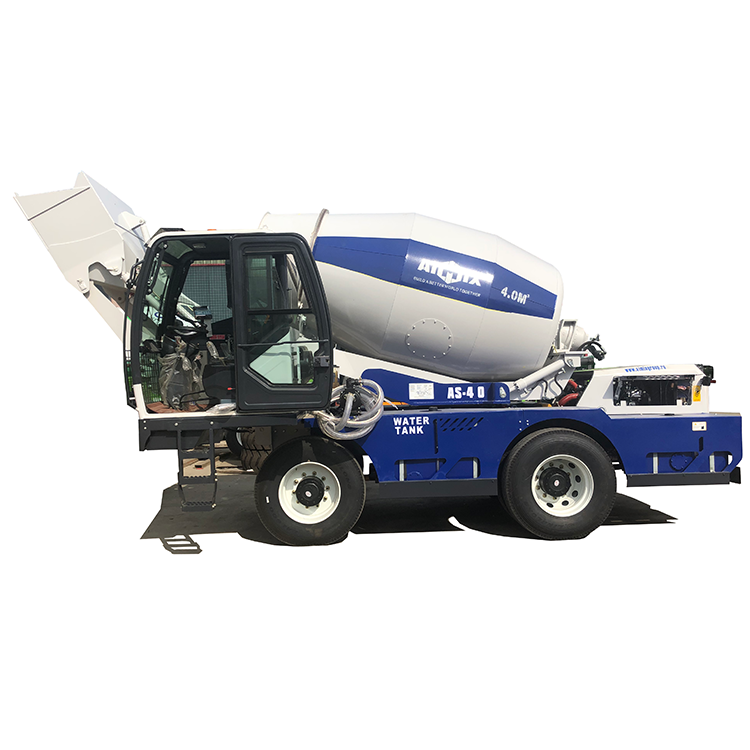

Aimix 1.8m3 2.6m3 3.5m3 5.5 m3 mobile self loading lifting concrete mixer truck machine
Self-loading aggregate, cement and water, mix and transport.
Our product is the top-choice for the concrete transporation for rural construction,urban construction,tunnel,airport,seaport,high-speed rail,beam field,bridge construction projects and so on.
Self-loading concrete mixer is equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is easy to operate and go everywhere needed.It’s the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture.
Self-loading concrete mixer just needs an operator .It’s safe and fast to operate. Greatly improve work efficiency and save manpower, reduce the the costs.
|
Equipment Model |
AS-1.8 |
AS-2.6 |
AS-3.5 |
AS-4.0 |
AS-5.5 |
AS-6.5 |
|
Rated Power (KW) |
78 |
78 |
85 |
85 |
110 |
92 |
|
Gear |
2 Forward 2 Back
|
2 Forward 2 Back,Front Wheels Steering |
2 Forward 2 Back |
|||
|
Fuel Tank (L) |
75 |
75 |
75 |
230 |
180 |
370 |
|
Total Hydraulic System Capacity (L) |
75 |
75 |
75 |
170 |
180 |
278 |
|
Oil Tank (L) |
16 |
|||||
|
Water Tank (L) |
500 |
500 |
620 |
660 |
860 |
1465 |
|
Wheelbase (mm) |
2600 |
2800 |
2900 |
2480 |
3350 |
2850 |
|
Curb Weight (Kg) |
6500 |
6500 |
7500 |
9000 |
11200 |
12520 |
|
Drive Form |
Torque Converter |
|||||
|
Drum Rotate |
270º |
|||||
|
Max.Speed (Km/h) |
30 |
30 |
30 |
35 |
30º |
40 |
|
Maximum Gradeability |
30º |
30º |
30º |
30º |
42 |
30º |
|
Maximum Turning Radius (mm) |
5300 |
5300 |
5300 |
4800 |
6200 |
4800 |
FAQ:
Q: What is your accept payment method?
A: TT,L/C,Western-Union,Escrow,Paypal and so on.
(30% deposit, and the 70% balance must be paid before shipping )
Q:How long about the delivery time?
A: Within 7 days after received deposit.
Q: How long is your warranty terms?
A: Our Warranty terms is 15 months guarantee.
Q: Do you provide after-sale service ?
Yes. We provide service according to your requires including engineers guide on site.
