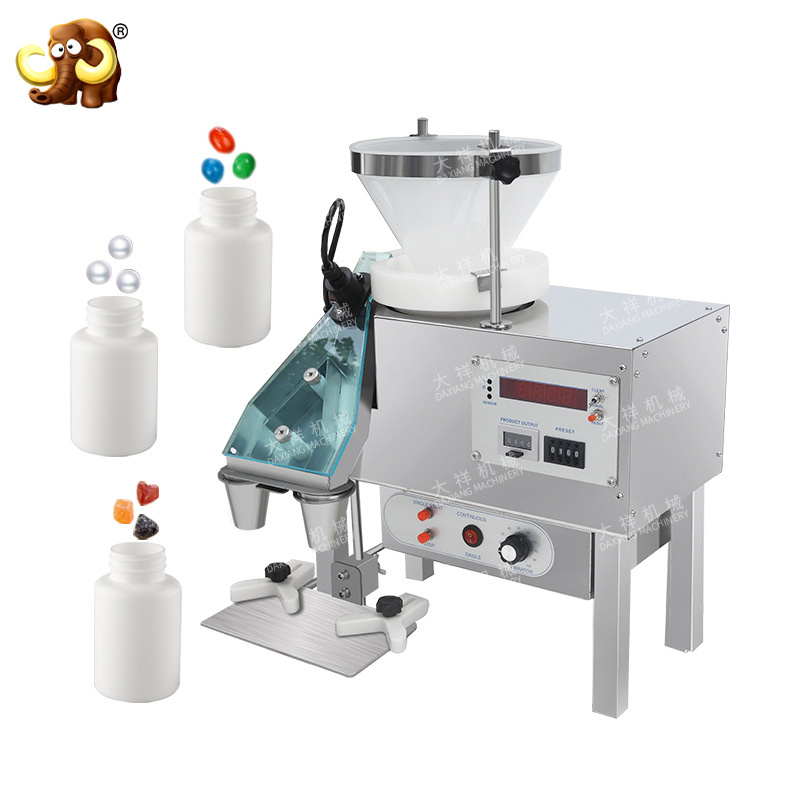

DXS-2A Small Size Automatic Bench Top Hard and Soft Capsule Counting Machine

DXS-2A Small Size Automatic Bench Top Hard and Soft Capsule Counting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3200

≥3 Sets

US $3050

≥5 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Material:: tablet, pill, capsule, pellet

Place of Origin:: Guangdong, China

Brand Name:: DAXIANG

Voltage:: 220V 50-60Hz

Dimension(L*W*H):: 400*370*580mm

Weight (KG):: 25

Power (kW):: 0.03

Application:: Counting Tablet Pill Capsule

Function:: Capsuel Counting

After-sales Service Provided:: Engineers

Keyword:: Desktop Capsule Counter

Type:: Digital Counter

Feature:: High Precision

Operation:: Semi-Automatic Operation

Applicable types:: 00-05 Capsules

Product name:: Capsule Tablet Pill Counting Machine

Counting:: 0-9999

Quick Details

Capacity (bottle/min):: 1 - 20 bottle/min

Bottle Capacity (pcs/bottle):: 1 - 9999 pcs/bottle

Capacity (pcs/h):: 30000 pcs/h

Applicable Material:: tablet, pill, capsule, pellet

Place of Origin:: Guangdong, China

Brand Name:: DAXIANG

Voltage:: 220V 50-60Hz

Dimension(L*W*H):: 400*370*580mm

Weight (KG):: 25

Power (kW):: 0.03

Application:: Counting Tablet Pill Capsule

Function:: Capsuel Counting

After-sales Service Provided:: Engineers

Keyword:: Desktop Capsule Counter

Type:: Digital Counter

Feature:: High Precision

Operation:: Semi-Automatic Operation

Applicable types:: 00-05 Capsules

Product name:: Capsule Tablet Pill Counting Machine

Counting:: 0-9999

- Factory Area -

More than 30,000 m ² area.

- Quantity in Stock -

More than 5,000 sets .

- Team Power -

More than 100 employees .

- Monthly Yield -

More than 2,000 sets .

- Established Time -

More than 15 years .

- Monthly Sales -

More than 1,000 sets .

Machine Model	DXS-2A
Application	Capsule/Tablet/Pill/Granule
Counting Range	1-9999
Production Capacity	550pcs/min(capsule #1) 800pcs/min(tablet 11*5mm)
Material Diameter	6-16mm(standard) 16-23mm(customized)
Material Thickness	≥4mm
Bottle Limit	≤180mm
Voltage	220V 50-60Hz 30W
Machine Weight	25kg

Product Application

Product Description

Diagram

1. feeding storage hopper

2. electric eye
3. track
4. output
5. Y-type positioner
6. vibration plate
7. counter
8. control panel
9. position regulator

Feeding Device :

Vibration feeding hopper design. Feeding speed can be controlled by vibration frequency, adjustable.

Electric Eye :

Special electric eye protection device to ensure accurate counting.

Output:

Lay off side by side to make collecting operation easier. Y-type positioner can adjust the position to fit all kinds of bottles.

S witch and Fuse:

A key to turn on and off, simple operation. The machine is equipped with fuse, safe and reliable.

C ounter:

The number of counted tablets can be set at the range of 0-9999. Both the number of counted tablets and the number of bottles can be counted. After counting, press the zero button to reset.

C ontrol Panel:

Equipped with vibration governor, and single start stop switch. Control the number of counted material intelligently, simple and convenient.

Product Parameters

Machine Model	DXS-2A	DXS-2
Application	Capsule/Tablet/Pill/Granule	Capsule/Softgel/Tablet/Pill/Granule
Counting Range	1-9999	1-9999
Production Capacity	550pcs/min(capsule #1) *800pcs/min(tablet 115mm)**	1400pcs/min(capsule #1) 2200pcs/min(tablet 11*5mm)
Material Diameter	6-16mm(standard) 16-23mm(customized)	5-23mm(customized)
Material Thickness	≥4mm	≥4mm
Bottle Limit	≤180mm	≤240mm
Voltage	220V 50-60Hz 30W	220V 50-60Hz 100W
Machine Dimensions	*400370580mm*	850700850mm
Machine Weight	25kg	65kg
