Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA
Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA

Sony imx323 ahd cvi tvi cvbs 4 in 1 hybrid camera 2mp 1080p MINI Pin hole CAMERA

FOB Reference Price: Get Latest Price
≥1 Pieces
US $22.5
≥10 Pieces
US $17.5
≥50 Pieces
US $15.5
≥100 Pieces
US $14.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
HDVscope
Model Number:
HDV-41HD200M15-P3.7
Technology:
Pinhole
Definition:
HD Ex-view CMOS
Video Format:
PAl or NTSC
Exellent night vision:
0.5Lux
Roundhead Size and Weight:
15mm 50g
Power Supply:
DC 12V±10%
Video Out:
AV/RCA
Cable Length:
0.5m
Standard Lens:
3.7mm Super Pinhole Lens F1.2/80°

Quick Details

Special Features:
Vandal-proof
Function:
NIGHT VISION, Wide Angle, Vandal-proof
Customized support:
Online technical support, Customized logo, Software reengineering, OEM, ODM
Place of Origin:
Guangdong, China
Brand Name:
HDVscope
Model Number:
HDV-41HD200M15-P3.7
Technology:
Pinhole
Definition:
HD Ex-view CMOS
Video Format:
PAl or NTSC
Exellent night vision:
0.5Lux
Roundhead Size and Weight:
15mm 50g
Power Supply:
DC 12V±10%
Video Out:
AV/RCA
Cable Length:
0.5m
Standard Lens:
3.7mm Super Pinhole Lens F1.2/80°

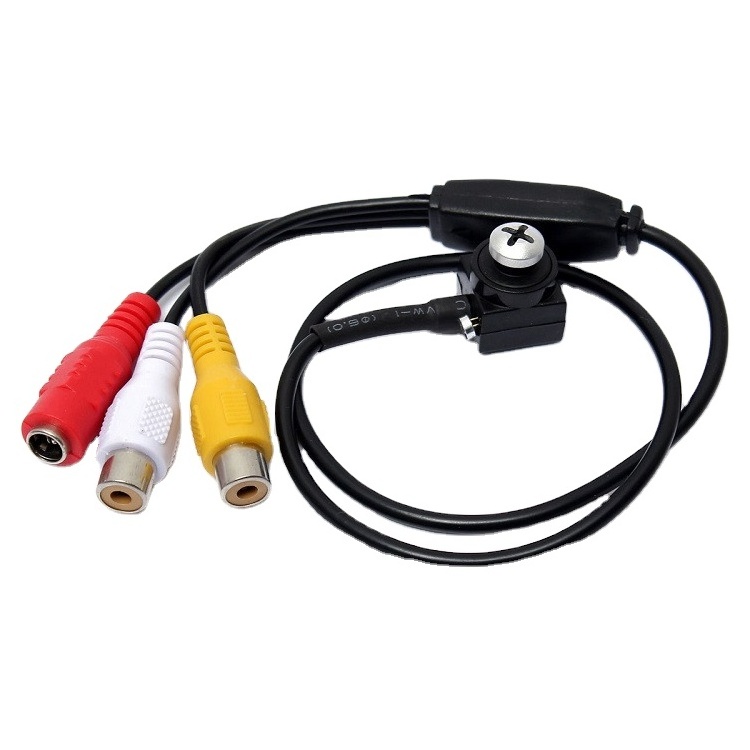

15x15mm 4IN1 AHD TVI CVI CVBS 1080P MINI Camera with 3.7mm Pinhole Lens (HDV-41HD200M15-P3.7)

With Audio MINI Snake Camera

How to adjust the signal format:

1.we can set the default signal from ahd tvi cvi cvbs at our factory.

2.You can set the signal on XVI, DVR etc.

Order symbol:

HDV-41HD200M15-P3.7-MIC 1080P MINI Snake Camera with 3.7mm Pinhole Screw Lens

Featues:

  1. HD Ex-view CMOS
  2. With Audio
  3. 3.7mm Super Pinhole Cone lens
  4. 15*15mm, 50g
  5. Standard BNC for video, AV for Audio
  6. 0.001Lux
  7. DC 12V, 80mA, Optional 5V
  8. Manual focus
  9. Angle of view around 80 degrees (without any distortion)
  10. RCA Connector Standard,
  11. BNC connector optional
  12. Used: Banks'ATM, FPV
  13. Features:Pinhole, Day to Night,White Balance,Auto
  14. Can be customized by your requirements
Product Description
M16 Series Model HDV-41HD200M15-P3.7-MIC
Name 4in1 Mini Snake Camera
Camera Image Sensor 1/2.9" Sony CMOS
DSP Sony IC
Resolution PAL/NTSC : 1920*1080
Min.Illumination 0.01Lux
Signal format AHD/TVI/CVI/CVBS
Frame 30fps
Standard Lens 3.7mm Pinhole lens @ F1.2 View angle:90°
Optional Lens /
Elec Shutter 1/50(1/60)s to 1/100,000s
Day& Night Electronic Day& Night
White Balance Auto
Synchronization Internal Synchronization
Video Output 1Vp-p Composite Output (75Ω/AV)
S/N Ratio More than 48dB
BLC Auto
AGC Auto
Industrial
Standard
Power Supply 12 V DC ± 10%
Working Temp -20 °C - 60 °C (14 °F-140 °F),Humidity 90% or less (non-condensing)
Impact Protection IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10.
Output RCA Connector
Shell Color Black
Dimension 15*15mm
Weight 38g
Accessories Free Brackets *1,Screw *2,Cable *1,Manul book *1
Lenses Optional

Packaging & Shipping

Packing List:

1pc cctv camera

1pc manual

1pc color box

Single Size: 95*65*65mm(LXWXH)

Shipping information:

1. We ship most packages within 48 hours by DHL, UPS ,TNT or EMS(3-7 Day). This allows them to be tracked and insured for loss or damage. If you would like us to ship by a faster method, you can select this option

when you finish your order. DHL, UPS ,TNT or EMS don't ship or deliver on weekends or holidays.

2 .Transportation by sea be the mode ( of transportation ) we usually adopt for our export. And COSCO, SITC, PIL, SINOKOR and other

major shipping companies established a good and close relations of cooperation.
