Quick Details
-
Product name:
-
office collator
-
Machine name:
-
office collator
-
Machine type:
-
8 trays
-
Name:
-
booklet maker machine
-
Function:
-
automatic paper collator
-
Product:
-
paper sheet collating machine
-
Item name:
-
digital paper sheet feeding collating machine
-
Working Speed:
-
0--1800set/h
-
Packing:
-
Wooden Case
-
place of origin:
-
CN;SHG
Quick Details
-
Type:
-
collator machine for paper
-
Production Capacity:
-
2500sets/hour
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
office collator
-
Machine name:
-
office collator
-
Machine type:
-
8 trays
-
Name:
-
booklet maker machine
-
Function:
-
automatic paper collator
-
Product:
-
paper sheet collating machine
-
Item name:
-
digital paper sheet feeding collating machine
-
Working Speed:
-
0--1800set/h
-
Packing:
-
Wooden Case
-
place of origin:
-
CN;SHG
Product Description
Machine features of office collator :
1.The machine has compact structure, small footprint. It can be customized to more pages collating without affecting the collating speed.
2. Advanced PLC touch screen control
3. Paper feeding in vertical direction and paper carried in horizontal direction by accurate timing belt conveying device. Paper are collected by vibration to ensure the tidiness of final collated pages.
4. Equipped with highly advanced paper detection device such the missing page be automatically filled, double sheet alarm device etc
5. The book sewing part or book stitching part is optional.
|
Technical data of paper sheet collator:
|
|
|
|
|||
|
Model
|
XH-XP4-440
|
XH-XP6-560
|
XH-XP14-650
|
|||
|
Max.paper size
|
440*330mm
|
560*400mm
|
650*450mm
|
|||
|
Min.paper size
|
297*210mm
|
|
|
|||
|
Paper thickness
|
30-1000GSM
|
|
|
|||
|
Max.loading height
|
450mm
|
|
|
|||
|
Max.speed
|
2500sets/hour
|
|
|
|||
|
Power
|
380V 50Hz 5.5kw
|
380V 50Hz 6.8kw
|
380V 50Hz 10kw
|
|||
|
Dimensions
|
3200x1700x1300mm
|
3800x1400x1300mm
|
8500x1900x1400mm
|
|||
|
Weight
|
800kg
|
1000kg
|
1700kg
|
|||
|

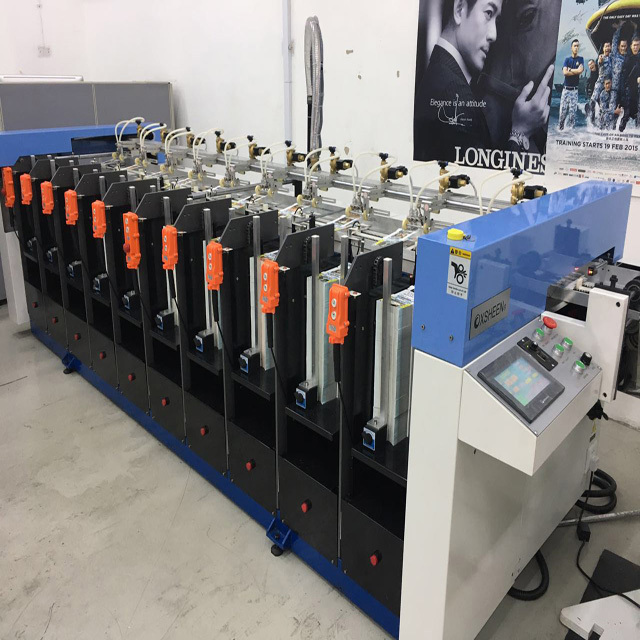

Machine details:
|
|
|
||
|
Collators in Csutomer's site:
|
|
|
||
