Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts
-
Machine Type:
-
Veritcal Milling Machine
-
Drilling diameter:
-
32-45 mm
-
Spindle taper:
-
MT4
-
Spindle travel:
-
130mm
-
Table size:
-
417x416mm
-
Max distance from spindle end to table:
-
725mm
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Color:
-
Customized Option
-
Spindle Speed(r/min):
-
80-1250 r.p.m 95-1500 r.p.m
-
Weight:
-
500kg
-
Certification:
-
CE, ISO9001
-
Power:
-
0.75
Quick Details
-
type:
-
Vertical type
-
Max. Drilling Dia. (mm):
-
45
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts
-
Machine Type:
-
Veritcal Milling Machine
-
Drilling diameter:
-
32-45 mm
-
Spindle taper:
-
MT4
-
Spindle travel:
-
130mm
-
Table size:
-
417x416mm
-
Max distance from spindle end to table:
-
725mm
-
Keyword:
-
Vertical Drilling Tapping Machine
-
Color:
-
Customized Option
-
Spindle Speed(r/min):
-
80-1250 r.p.m 95-1500 r.p.m
-
Weight:
-
500kg
-
Certification:
-
CE, ISO9001
-
Power:
-
0.75
|

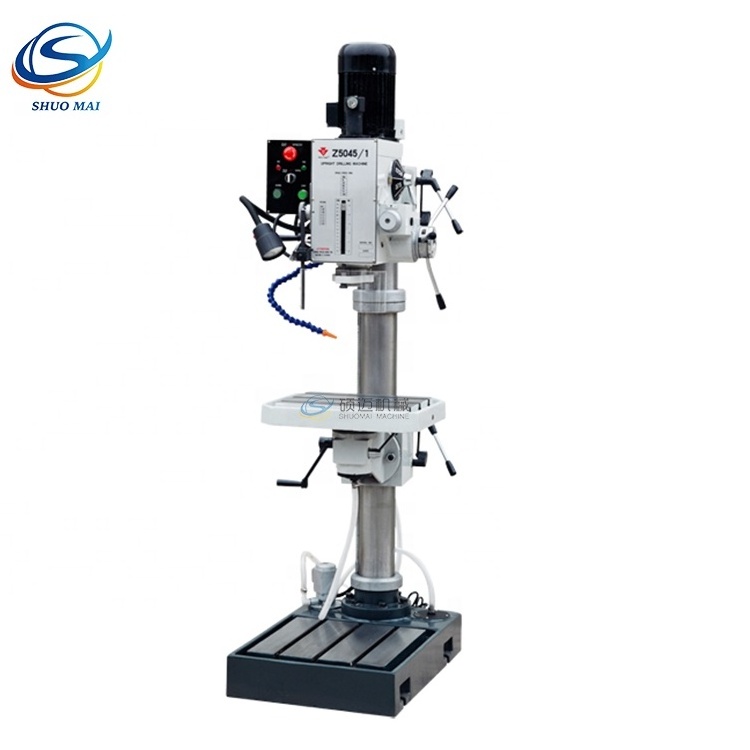

Model |
Z5032/1 |
Z5040/1 |
Z5045/1 |
|
|
|||
|
Maximum drilling diameter |
32mm |
40mm |
45mm |
|
Spindle taper |
M.T.3 or R8 |
M.T.4 |
M.T.4 |
|
Spindle travel |
130mm |
130mm |
130mm |
|
Spindle speed series |
6 |
6 |
6 |
|
Spindle speed range 50Hz |
80-1250 r.p.m |
80-1250 r.p.m |
80-1250 r.p.m |
|
60Hz |
95-1500 r.p.m |
95-1500 r.p.m |
95-1500 r.p.m |
|
Spindle automatic cutting stage |
6 |
6 |
6 |
|
Spindle automatic tooling range |
0.06-0.30mm/r |
0.06-0.30mm/r |
0.06-0.30mm/r |
|
Minimum distance from spindle axis to column surface |
290mm |
290mm |
290mm |
|
Maximum distance from the spindle end to the table |
725mm |
725mm |
725mm |
|
Maximum distance from the spindle end to the base work surface |
1125mm |
1125mm |
1125mm |
|
Maximum headstock stroke |
250mm |
250mm |
250mm |
|
Headstock rotation angle (horizontal direction) |
360° |
360° |
360° |
|
Workbench bracket maximum stroke |
600mm |
600mm |
600mm |
|
Effective working area of the workbench |
380×300mm |
380×300mm |
380×300mm |
|
Work table horizontal rotation angle |
360° |
360° |
360° |
|
Table tilt angle |
±45° |
±45° |
±45° |
|
Base work surface effective working area |
417×416mm |
417×416mm |
|
|
Motor Power |
0.75KW(1HP) |
1.1KW(1.5HP) |
1.5KW(2HP) |
|
Voltage frequency |
As customer's requirement |
As customer's requirement |
As customer's requirement |
|
Motor speed |
1400 r.p.m |
1400 r.p.m |
1400 r.p.m |
|
Cooling pump power |
0.04KW |
0.04KW |
0.04KW |
|
Net weight / gross weight |
437kg/487kg |
442kg/492kg |
442kg/492kg |
|
Package dimensions |
1850×750×1000mm |
1850×750×1000mm |
1850×750×1000mm |
|
Qty |
18pcs/20'container |
18pcs/20'container |
18pcs/20'container |
