Quick Details
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1580 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANDY
-
Voltage:
-
3P AC208-415V 50/60HZ
-
Dimension(L*W*H):
-
3590X1380X1630mm
-
Power (kW):
-
11 kW
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Open Type Paddle Type Powder Hot Mixer Small Model for Mixing Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective Volume:
-
1000L
-
Fullness Coefficient:
-
0.6-0.8
-
Turn Speed:
-
45rpm
-
Features:
-
High uniformity/Low Residue/Zero leakage/Full clean
-
Stirrer type:
-
Scraper
Quick Details
-
Barrel Volume (L):
-
1300L
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
20 - 60 r.p.m
-
Max. Loading Capacity:
-
1000
-
Weight (KG):
-
1580 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TANDY
-
Voltage:
-
3P AC208-415V 50/60HZ
-
Dimension(L*W*H):
-
3590X1380X1630mm
-
Power (kW):
-
11 kW
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Open Type Paddle Type Powder Hot Mixer Small Model for Mixing Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Effective Volume:
-
1000L
-
Fullness Coefficient:
-
0.6-0.8
-
Turn Speed:
-
45rpm
-
Features:
-
High uniformity/Low Residue/Zero leakage/Full clean
-
Stirrer type:
-
Scraper
Open Type Paddle Type Powder Hot Mixer Small Model for Mixing Machine
Features of paddle mixer:

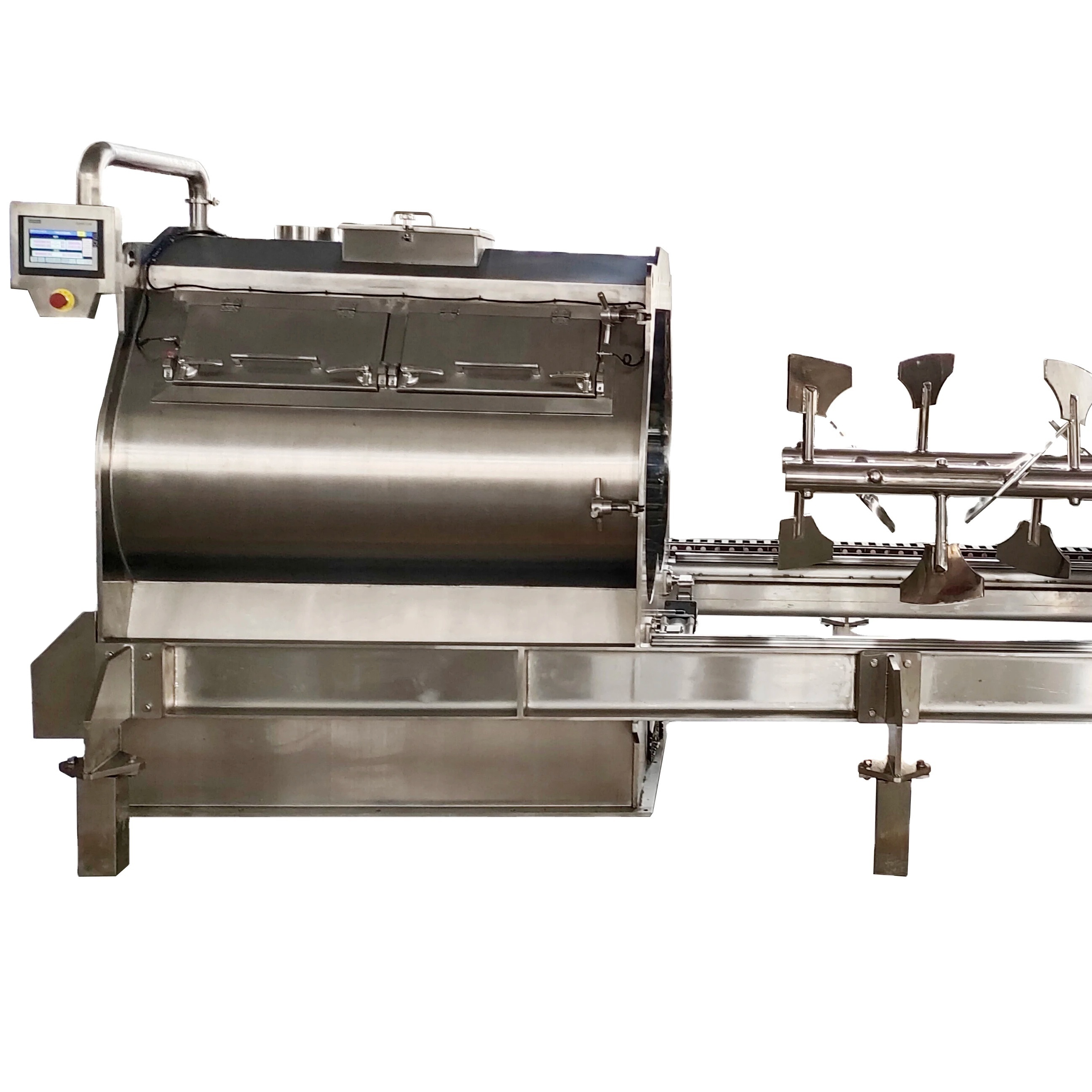

TDWK no gravity open type mixer is also called pulling type paddle mixer. On the basis of long-term practice in the field of mixer, this series machine overcomes the drawback of horizontal mixer to clean up inconveniently. The gear reducer and mixer rotor are direct transmission, higher reliability and longer service life. It is used for mixing powder and powder, granule and granule, granule and powder, and adding a bit liquid. It is wide application in food, chemical, pesticide, feeding stuff and battery etc. The mixer quality can be from 316L, 304, 201, carbon steel, ect.
Picture of double paddle mixer:
Principle of working:
1. Double shaft paddle mixer is with 2 horizontal paddle shaft; there is the paddle on each shaft;
2. With the driven equipment, two cross paddle shafts moves intersection and patho-occlusion.
3. Driven equipment makes paddle rotating fast; the rotating paddle generates centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state). Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed.
Reference paramete of double paddle mixer:
|
Model no. |
Effective Volume(L) |
Loading coefficient |
Power(KW) |
Rotation speed(r/min) |
Dimension (mm) |
Weight(kg) |
|
TDWK-300 |
300 |
0.6-0.8 |
4 |
53 |
3240X1035X1430 |
580 |
|
TDWK-500 |
500 |
0.6-0.8 |
7.5 |
53 |
3390X1160X1480 |
860 |
|
TDWK-1000 |
1000 |
0.6-0.8 |
11 |
45 |
3590X1380X1630 |
1530 |
|
TDWK-1500 |
1500 |
0.6-0.8 |
15 |
45 |
3880X1550X1810 |
1980 |
|
TDWK-2000 |
2000 |
0.6-0.8 |
18.5 |
39 |
4180X1780X1930 |
2590 |
|
TDWK-3000 |
3000 |
0.6-0.8 |
22 |
31 |
4430X1910X2040 |
3620 |
|
Pls feel free to contact us if you need more technical parameters! |
||||||
