Quick Details
-
USED FOR:
-
make round wood stick
-
Motor power:
-
3kw
-
Minimum processing diameter:
-
15mm
-
Maximum processing diameter:
-
55mm
-
blade number:
-
2
-
shortest processing length:
-
450mm
-
Longest processing length:
-
not limited
-
Dimension:
-
850*650*800(mm)
-
Weight:
-
340kg
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FX
-
Weight (KG):
-
340 KG
-
USED FOR:
-
make round wood stick
-
Motor power:
-
3kw
-
Minimum processing diameter:
-
15mm
-
Maximum processing diameter:
-
55mm
-
blade number:
-
2
-
shortest processing length:
-
450mm
-
Longest processing length:
-
not limited
-
Dimension:
-
850*650*800(mm)
-
Weight:
-
340kg
Widely Used Round Wood Rod Machine Broom Stick Making Machine In China
Description of Broom Stick Making Machine
This wood rod making machine is belong to wood round stick processing equipment,
Mainly make long strips bamboo or wood material and square wood into round sticks and smooth round sticks.The final produce most used to make broom handle,mop handle,shovel handle ect.The machine can be customized according to your wood rod diameter from 15-120mm
Features of Broom Stick Making Machine
1.materials widely, can process square stock and round stock embryo.
2.smooth surface, the output round stick close to sanding effect, saves sanding process by changing speed.
3.high productivity, the fastest feed can reach 18m/min, we can also design output more round sticks at one time according to customer's need
Description of Broom Stick Making Machine
1. The proper material is widely,such as elongated wood and round stock embryo,to change the disadvantage of raw material limited.
2. Smooth surface,the stick which processed approach to the one through sanding,to leave the sanding process by changing the speed of the machine .
3. High efficiency, the highest speed of the machine can reach 25 pcs/min,and can be customed the machine which can process more sticks for one time
Specification of Broom Stick Making Machine
Model |
MC9050 |
MC9050A |
MC9050B |
MC9050C |
Main motor power |
3kw |
3kw |
3kw |
4/3kw |
Feeding motor power |
0.55kw |
0.75kw |
0.75kw |
0.75kw |
Spindle velocity |
4000r/min |
4000r/min |
4000r/min |
4000r/min |
Feeding speed |
3/5m/min |
3/5m/min |
3/5m/min |
3/5m/min |
Cutting diameter |
15-50mm |
15-50mm |
15-50mm |
15-50mm |
Overall dimension |
860*650*980mm |
970*650*980mm |
1100*650*980mm |
1470*590*1000mm |
Machine weight |
250kg |
310kg |
350kg |
520kg |

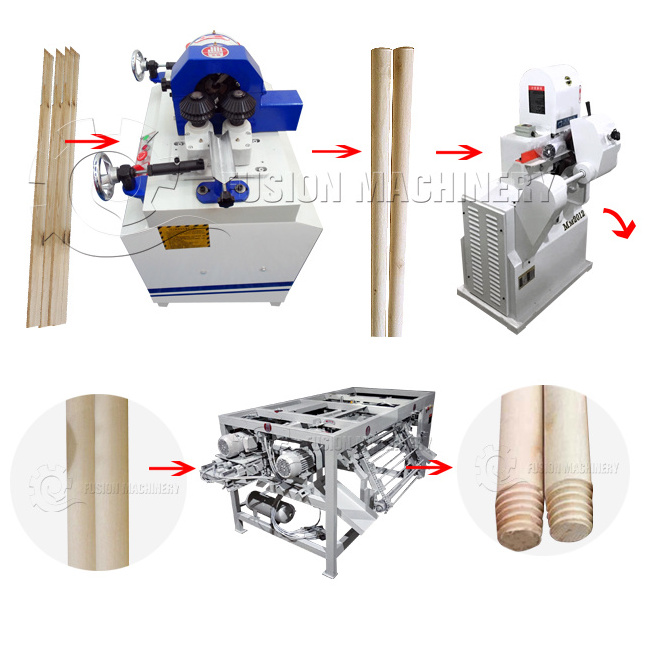

Pictures of Broom Stick Making Machine
Related machines:
Wood rod polishing machine/wood rod sharpening machine/wood rod threading machine and round end machine
