High Quality Other Wifi Switch 12 Volt Units Transformers Ac-dc 150w12v12.5a Power Supply

FOB Reference Price: Get Latest Price

≥100 Pieces

US $5.9

≥500 Pieces

US $3.9

≥1000 Pieces

US $2.9

Free Inquiry

Customized Request

Quick Details

Product Description

Specification

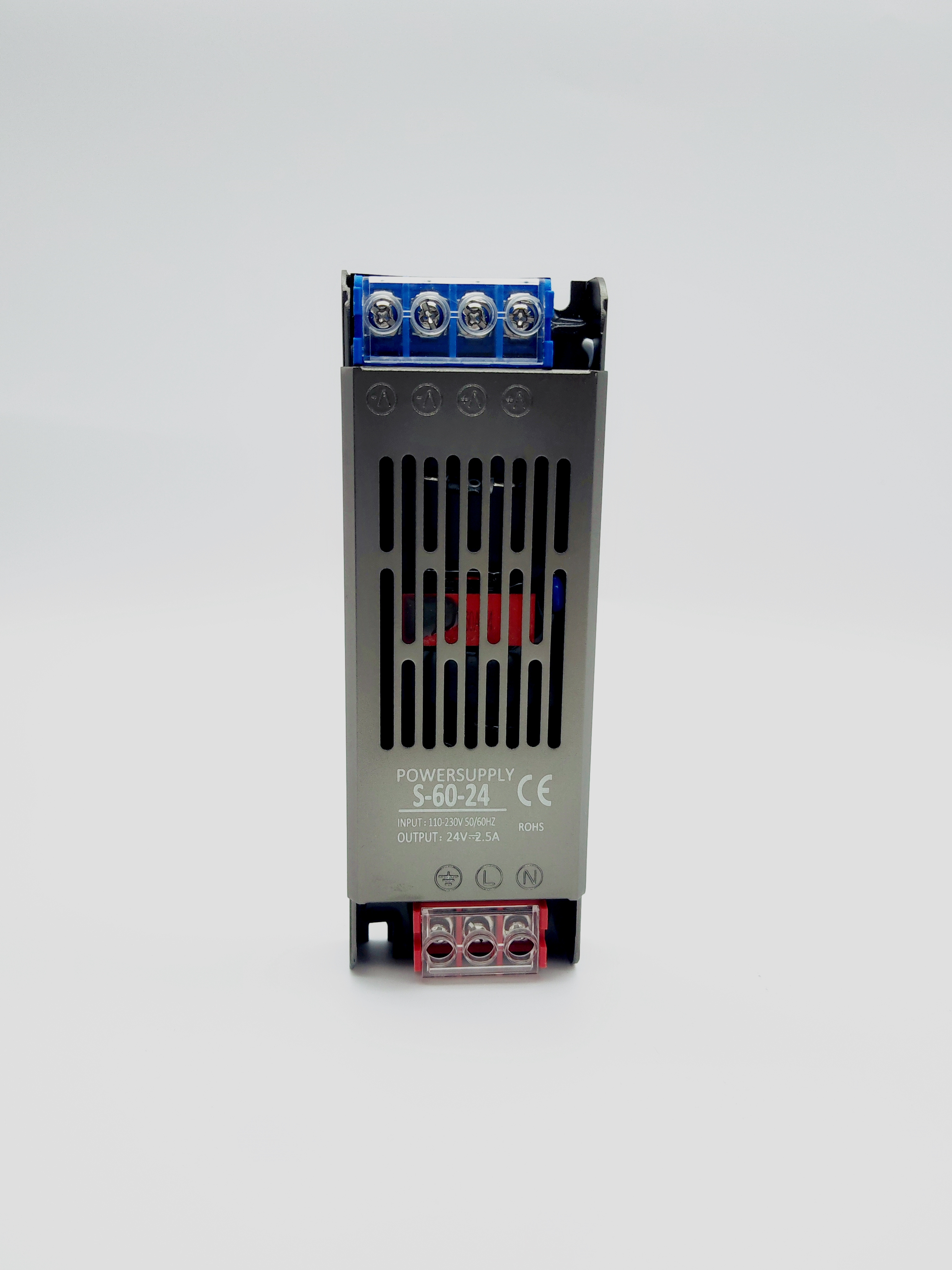

LIANSHENG XJG 60-400W Switching Power supply
DC Output	DC Voltage	12v/24v
		Power	100W
		Ripple&Noise	80MV
		Setup,Rise Time,Hold Up Time	200ms,50ms, 20ms/230VAC
		DC Adjustable Range	±10% Rated Voltage
AC Input	AC Voltage Range	110-220VAC
		Frequency Range	90KHZ
		Efficiency	>85%
		AC Current	0.65A/115V 0.4A/230V
		AC Inrush Current	20A/115V 40A/230V
		Leakage Current	< 0.5mA /240VAC
Protection	Over-load	105%-150% hiccup mode,Auto-recovery
		Over-voltage	115%-135% Cut Off the Output,Auto-recovery
		Over-temp	Shut down O/P voltage, Auto-recovery
Environment	Working temp	-10~ +60C° (Refer to output load derating curve)
		Working Humidity	20 ~ 90% RH, non-condensing
		Storage Temp	-10~ +60C°
		Storage Humidity	10 ~ 95% RH
Safety	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH
		Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
		Safety standards	CE,RoHS,FCC,ISO9001
