Quick Details
-
Model Number:
-
AP-EX-A-Z-25J 1.5inch
-
Brand Name:
-
Aasf
-
Product name:
-

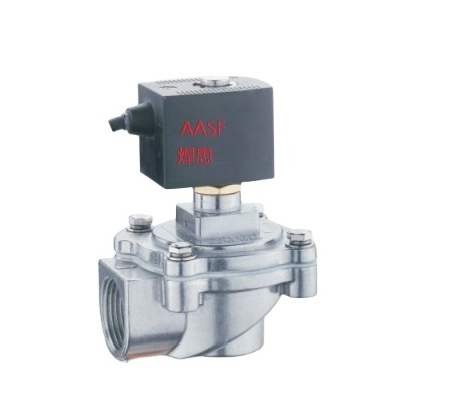

Right angle pulse valve
-
Working pressure:
-
0.3-0.6 Mpa
-
Ambient Temperature:
-
-25~80°C
-
Working medium:
-
clean air
-
Voltage:
-
AC220V /AC110V / AC24V/ DC12V /DC24V Customized
-
protection class:
-
IP 65
-
Diaphragm life:
-
over one million pulses
-
Solenoid coil:
-
Explosion proof
-
Wire length:
-
min.1.5m
Quick Details
-
Port Size:
-
25 mm
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
AP-EX-A-Z-25J 1.5inch
-
Brand Name:
-
Aasf
-
Product name:
-
Right angle pulse valve
-
Working pressure:
-
0.3-0.6 Mpa
-
Ambient Temperature:
-
-25~80°C
-
Working medium:
-
clean air
-
Voltage:
-
AC220V /AC110V / AC24V/ DC12V /DC24V Customized
-
protection class:
-
IP 65
-
Diaphragm life:
-
over one million pulses
-
Solenoid coil:
-
Explosion proof
-
Wire length:
-
min.1.5m
| Product name | Right angle pulse valve |
| Working pressure | 0.3-0.6Mpa |
| Ambient Temperature | -25~80°C |
| Working medium | clean air |
| Voltage | AC220V /AC110V / AC24V/ DC12V /DC24V Customized |
| protection class | IP 65 |
| Diaphragm life |
over one million pulses
|
| Body | ADC12 die casting |
| Armature | 430FR Stainless steel and alloy |
| Diaphragm | nitrile NBR |
| Spring | 321 Stainless steel |
| Fasteners | 302 Stainless steel |
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LCATSIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
