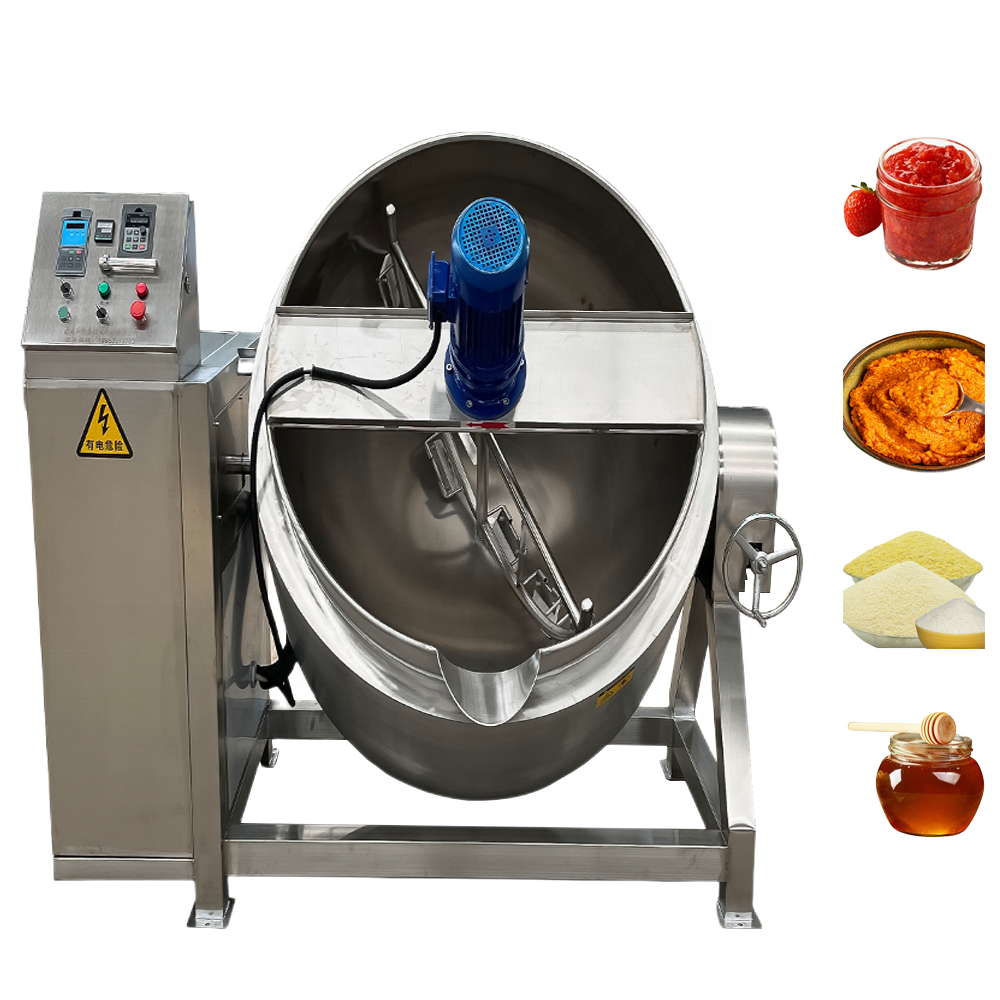

DZJX 10l 1000 l Electric Steam Copper Jacketed Kettle With Mixer still Jacket Cooking Kettle Pot Boilers With Agitator

DZJX 10l 1000 l Electric Steam Copper Jacketed Kettle With Mixer still Jacket Cooking Kettle Pot Boilers With Agitator

FOB Reference Price: Get Latest Price

≥1 Sets

US $1385

≥5 Sets

US $1285

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Machinery Capacity:: 2-3000L

Quick Details

Weight (KG):: 100

Place of Origin:: Henan, China

Brand Name:: DZJX

Machinery Capacity:: 2-3000L

Product Description

DZJX 10l 1000 l Electric Steam Copper Jacketed Kettle With Mixer still Jacket Cooking Kettle Pot Boilers With Agitator

Jacketed pot is also known as steam pot, cooking pot, jacketed steam pot.
It usually consists of a pot body and a supporting foot. The pot body is a double-layer structure consisting of an inner and outer spherical pot body. The middle inter layer is heated by steam.The jacketed pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid material, easy control of heating temperature, beautiful appearance, easy installation, convenient operation, safety and reliability.

Jacketed kettle is widely applied in all kinds of food processing , candy , syrup , lotus paste , bean paste , jam , sweetmeats , pastries , drinks , candied fruit , can , fruit jam , beans , popcorn , jujube paste , sauce , curry prepared food and daily chemical industry , pharmaceutical and other industries, mixing and pharmaceutical, dairy, wine, and other food processing.

Product Details

What You See Is What You Get

Classification of jacketed cooking kettle

By heating method:

1. Electric heating type;

2. Steam heating type;

3. Gas(pls indicate LPG or natural gas) heating type.

By configuration of the Jacketed Kettle:

1. Tilting type / vertical type;

2. With agitator / without agitator;

3. Ordinary stirring type / planetary stirring type;

4. With lid / without lid.

Please click here to contact us, view more.

Product Show

Please click here to contact us, view more.

Technical Parameters

Volume (L)	Motor power (KW)	Diameter depth (mm)	Dimensions (mm)
50	0.75	600*420	12008501200
100	0.75	700*470	13009501250
200	1.5	800*550	145010501350
300	1.5	900*600	155011501450
400	1.5	1000*680	165012501550
500	2.2	1100*720	175013501750
600	2.2	1200*780	185014501850
800	2.2	1300*870	195015502000
1000	2.2	1400*950	205016502100
* More models, support customization, please click here to contact us.

Please click here to contact us, view more.

Application scene

DZJX High Quality Food Steam Gas Electric Heating Stirring Jacketed Kettle

Jacketed Kettle is widely used in candy, cakes, soft drinks, fruit juices, dairy products, canned food and brewing, pharmaceutical, daily life, and so on industry sandwich pot. mainly used in meat products, candy, beverages, canned food, can also be used for large restaurants or dining rooms for porridge, boiling water, cooking.

Please click here to contact us, view more.

Why Choose Us

* Xinxiang Dongzhen Machinery Manufacturing Co. LTD

1.With 36 years of professional production of food, medicine, chemical equipment experience, and has a good cooperative relationship with the world 500. 2.All raw materials purchased with domestic and foreign well-known manufacturers. 3.We have designed production lines for many companies, such as curry production line, fruit and vegetable production line, olive oil production line, flour production line, yeast production line, etc. 4.1 Years Warranty, 14 Days Delivery, Factory Price. 5.14800㎡ factory, Own R&D Team. 6.Free design service, free professional solutions. 7.Passed ISO9001, CE, SGS, Intetek certificates.
