IP68 waterproof fast speed tubular Linear Actuator in-line linear actuator 300N 88mm/s

IP68 waterproof fast speed tubular Linear Actuator in-line linear actuator 300N 88mm/s

FOB Reference Price: Get Latest Price

≥2 Pieces

US $179

≥100 Pieces

US $159

≥500 Pieces

US $149

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-L8-52

Torque:: Requests

Diameter of the outer tube:: 52mm

Load Max.:: 6000N Max.

Voltage:: 12V/24V DC

IP grade:: IP68

Duty Cycle:: 10% 2 Mins Continuous Max

warranty time:: 1 year

Certification:: ce

Color:: Black / stainless steel color

Limited Switches:: built in (not adjustable)

Options:: low noise, Hall Sensor, over current protection

Quick Details

Speed(RPM):: High Speed

Continuous Current(A):: 4A

Efficiency:: IE 1

Warranty:: 1 year

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-L8-52

Torque:: Requests

Diameter of the outer tube:: 52mm

Load Max.:: 6000N Max.

Voltage:: 12V/24V DC

IP grade:: IP68

Duty Cycle:: 10% 2 Mins Continuous Max

warranty time:: 1 year

Certification:: ce

Color:: Black / stainless steel color

Limited Switches:: built in (not adjustable)

Options:: low noise, Hall Sensor, over current protection

Products Description

We are factory. We can OEM and ODM.

Features:
Voltage: 12V / 24V DC
Max. force: 6000N max.
Speed: 3 ~ 88mm/s
Stroke: 20mm-500mm
Diameter of the outer tube: 52mm
Material of outer tube: Aluminium / 304 stainless steel
Protection Class: IP68
Color: Black,stainless steel color
Duty Cycle: 10%
Limited Switches: built in (not adjustable)
Ambient temperature -35°C to +70°C
Options: low noise, Hall Sensor, over current protection

Product Paramenters

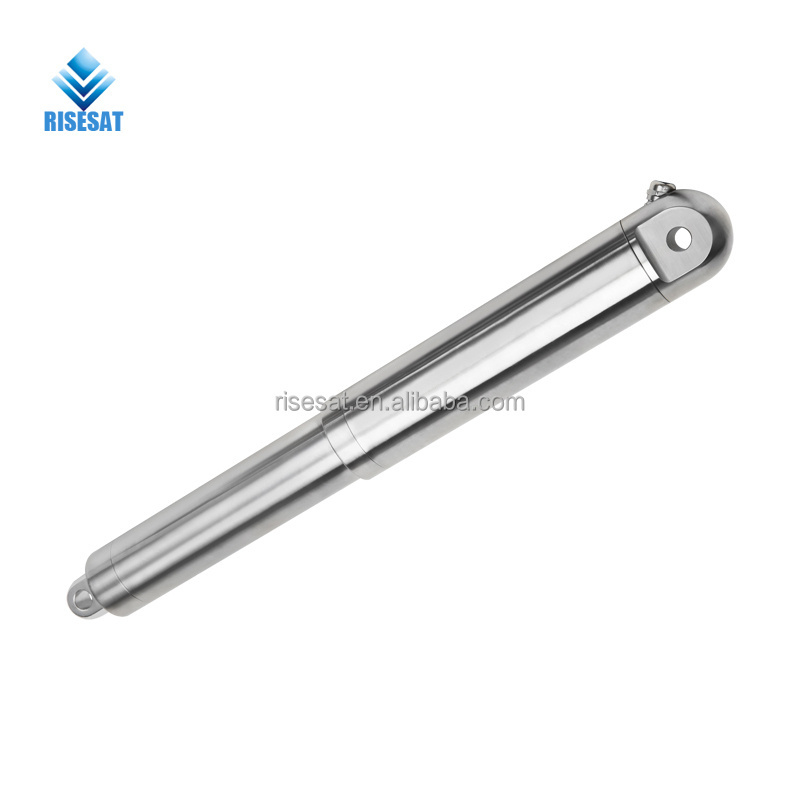

RS-L8-52 is a powerful compact in-line linear actuator, with max. load capacity 6000N.

It is ideal for outdoor applications where the actuators will be visible, such as skylight, smoke vent system, yacht automation, agriculture machine.

Model	RS-L8-52	Power	120W
Brand	RISESAT	Color	Black/ stainless steel color
IP Grade	IP68	Noise on load(dB)	<75dB
Duty cycle	10% 2min. ON 18min. OFF	Stroke	Customized Stroke Available (50~400mm)
No-load Current	<=1.6A (12v DC) <=0.8A (24v DC)	Full load Current	<=10A (12V DC) <=5A (24v DC)
End mounting	O Type	Operation temperature	-20℃~+65℃

Max. Load(N)	300	1200	1800	3000	4500	5000	6000
Self-locking Force(N)	600	2400	3600	6000	8000	7500	8000
No-load speed(mm/s)	88	25	18	10	8	5	5
Full load speed(mm/s)	55	18.5	12	7	5	4	3
