- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
MSLDW09
-
Product name:
-

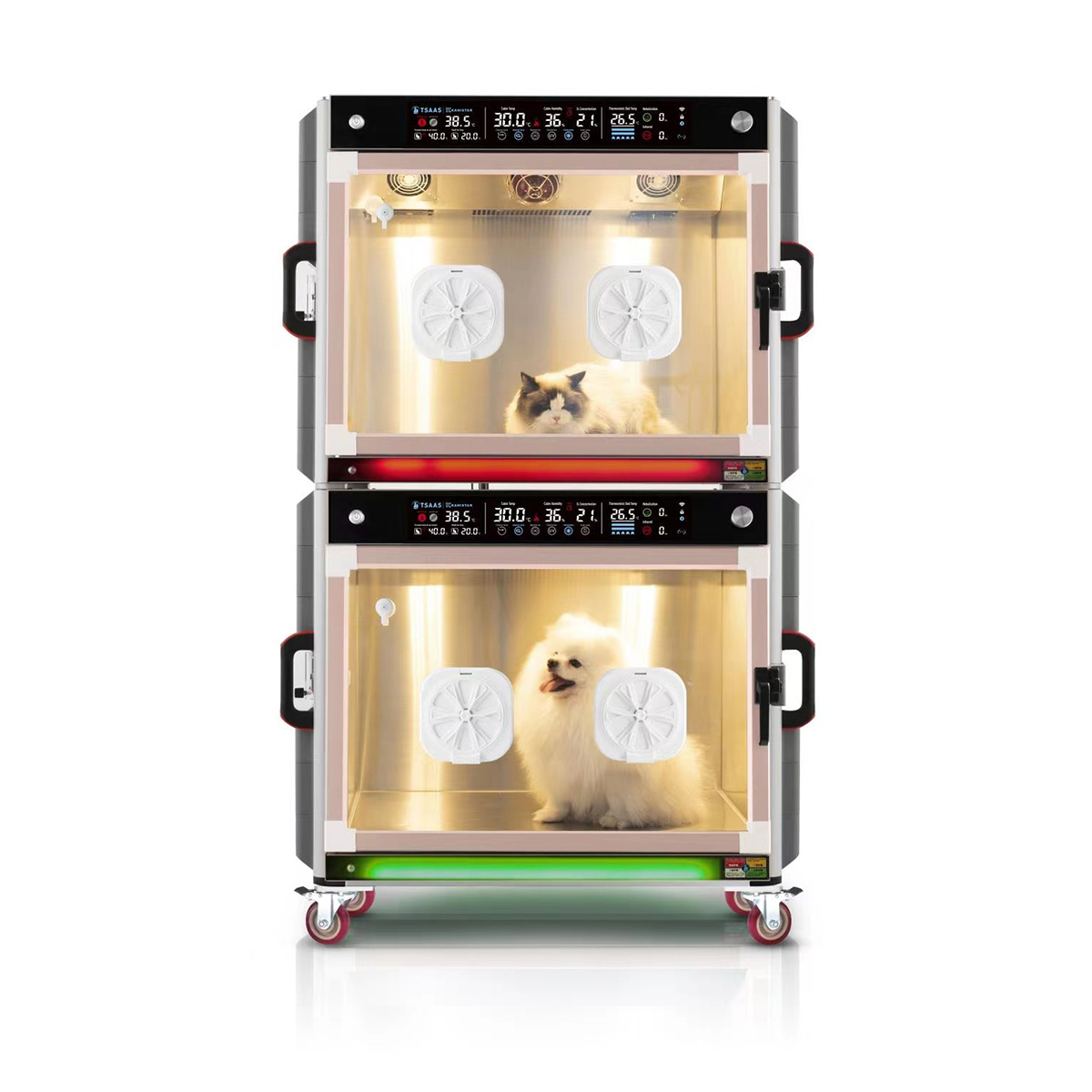

veterinary ICU monitoring cage, animal oxygen incubator cage
-
Material:
-
Stainless Steel
-
Usage:
-
Animal ICU Healthcare
-
Display:
-
Touch Screen
-
Refrigeration:
-
Thermoelectric cooling
-
Infrared physiotherapy time:
-
1 ~ 30 minutes
-
Remote control equipment:
-
Android/OS system on smart phones or PAD
-
Air circulation:
-
Internal and external circulation
-
Ultraviolet sterilization:
-
180 seconds/time
-
Oxygen concentration setting:
-
20 ~ 80%
Quick Details
-
Properties:
-
Animals use
-
Place of Origin:
-
China
-
Brand Name:
-
MSL
-
Model Number:
-
MSLDW09
-
Product name:
-
veterinary ICU monitoring cage, animal oxygen incubator cage
-
Material:
-
Stainless Steel
-
Usage:
-
Animal ICU Healthcare
-
Display:
-
Touch Screen
-
Refrigeration:
-
Thermoelectric cooling
-
Infrared physiotherapy time:
-
1 ~ 30 minutes
-
Remote control equipment:
-
Android/OS system on smart phones or PAD
-
Air circulation:
-
Internal and external circulation
-
Ultraviolet sterilization:
-
180 seconds/time
-
Oxygen concentration setting:
-
20 ~ 80%
Product Description
1.Accurate temperature control
The MSLDW09 heating system is equipped with an overhead double
duct circulating heating system and
a thermostatic bed system to ensure uniformed temperature in the cabin;Relying on the semi-conduction
system in thermostatic bed, MSL
ICU can provide quick cooling at the bottom, where the patient can have
their full abdomen in contact with the floor to help cool the body.
2. Relative Humidity Controls
Whether heating or cooling the enclosure, our ICU can maintain adequate relative
humidity levels for your pet patients. Generally, a comfortable range for most animal
patients is 45%-55% relative humidity. With our ICU machine you can achieve high
temperatures with low humidity to help meet the requirements needed for some
treatments. You can also achieve an environment with high temperature and high
humidity in cases where 65%-75% relative humidity is needed.
3. Oxygen Containment
For proper oxygen treatments, an ICU must provide an airtight compartment, precise oxygen control, and a safe ventilation system. Our MSL units do just that to help you
achieve a desired level greater than or equal to 40% oxygen concentration. The airtight cabin can easily reach 60% oxygen concentration within one hour at a flow rate of
10L/min (93%+). The emergency vent automatically opens when the oxygen concentration is lower that 18% or there is a power outage.
4.AI (Artificial Intelligence) Controlled Alarm System
Our MSL ICUs can monitor the changes of animal body
temperature 7 days a week, 24 hours a day. The monitor can
alarm according to the changes of animal body temperature
or automatically adjust the ICU according to the preset temperature. This function takes our unit from your basic incubator setup to an intelligent automatic inductive medical
device(available on Pro model).
Title goes here.
5.Triple purification function
The first is an easy-to-use ultraviolet
disinfection light. This light uses ultraviolet rays with a wavelength of 200nm to 280nm.
Ultraviolet rays at this frequency have been proven to eradicate bacteria and effectively kill microbial cells. Second, each unit is equipped with negative ion purification.
High-concentration negative ion generators in a closed treatment chamber can significantly reduce odor pollution and help support the immune system of your pet patients.
As a third measure of purification, we have equipped the machine an external cycle
fresh air system. When oxygen supply is not required in treatment, the “external cycle”
function can be turned on to help refresh and improve the cabin air quality.
6. Separable Cabin (Big version)
The cabin of the Big version, which can hold a large dog, can be separated into two compartments which can hold medium-sized dogs and have individual ICU control systems for heating/cooling.
7. Infrared Physiotherapy
The infrared physiotherapy light is an added bonus to this model. Research has shown that infrared light helps tissue
temperature increase, capillaries dilate, blood flow increases, healing of wounds accelerates, tissue cell vitality increases. It improves metabolism, acts as an anti-inflammatory treatment and helps create an overall sterile and improved
environment.
8.
Built-in Nebulizer
MSL ICU has a built-in air compression medical nebulizer, which produc-es
drug atomized particles below 0.5 microns, creating an ultra-fine mist for
pets to inhale. There is little to no drug residue at this size of micron, and
the rate of utilization of the administered drug increases, making it very
suitable for the treatment of diseases of the lower respiratory tract of pets.
The medical nebulizer is installed outside the ICU inner cabin to reduce
noise and aiding in a quieter environment for the pet to recover
9. Nursing Level Indicator
Found at the bottom of every unit, is a nursing level indicator. There is a 4-stage lighting that helps caretakers visually identify if their patient is inneed. The varying levels of how severe the illness or injury is can beindicated by these lights. Level 1 is White. Level 2 is a Green color.Level 3 is an Amber color. These first three colors indicate what condition the patient is in based on their current needs. The fourth light is ared light. This light is used if a patient reaches critical condition. More details on the nursing level indicator light can be found in our suggestedapplication form.
Specifications
|
Touch screen
|
Panoramic central control touch screen
|
|
Max power
|
950W+500W
|
|
Power supply
|
AC100~ 120V /220~ 240V 50/60Hz (Grounded)
|
|
Refrigeration
|
Thermoelectric cooling
|
|
Infrared physiotherapy time
|
1 ~ 30 minutes
|
|
Remote control equipment
|
Android/OS system on smart phones or PAD
|
|
Air circulation
|
Internal and external circulation
|
|
Ultraviolet sterilization
|
180 seconds/time
|
|
Oxygen concentration setting
|
20 ~ 80%
|
Standard configuration
