Quick Details
-
Model Number:
-

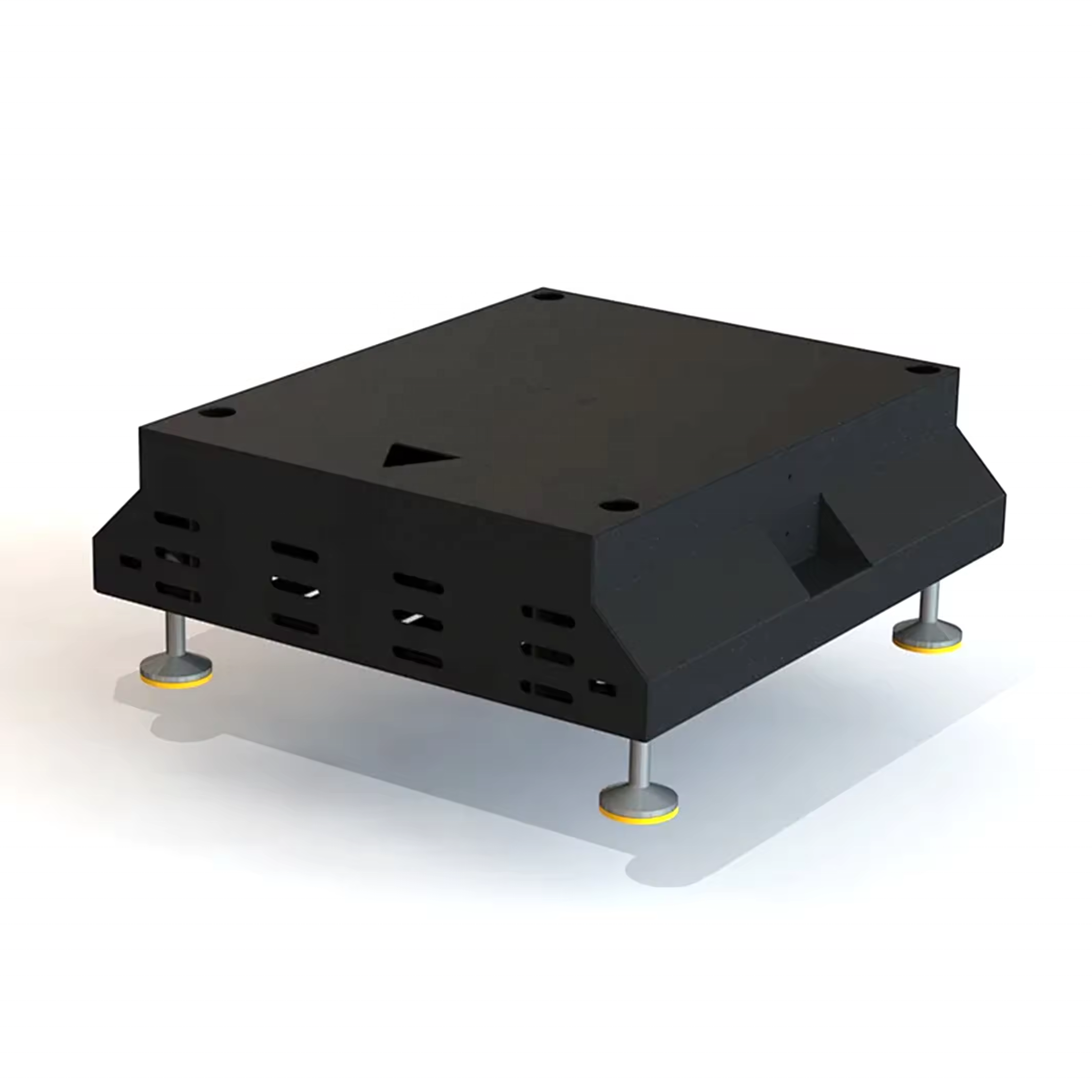

Seplos Bottom Base with Wheel, Mason 280
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Seplos Mason Mason 280 Stainless Steel BOX Base
-
Used for:
-
16*280Ah/302Ah/304Ah
-
Anode Material:
-
Metal
-
Application:
-
48V 280Ah 302AH 304AH 15KW empty Metal
-
Size:
-
440*750*270mm
-
Communication:
-
CANBUS/RS485
-
Weight:
-
25kg
-
BMS:
-
48V 16S 200A BMS
Quick Details
-
Brand Name:
-
BSY, Seplos
-
Certification:
-
CE
-
Material:
-
Steel
-
Model Number:
-
Seplos Bottom Base with Wheel, Mason 280
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Seplos Mason Mason 280 Stainless Steel BOX Base
-
Used for:
-
16*280Ah/302Ah/304Ah
-
Anode Material:
-
Metal
-
Application:
-
48V 280Ah 302AH 304AH 15KW empty Metal
-
Size:
-
440*750*270mm
-
Communication:
-
CANBUS/RS485
-
Weight:
-
25kg
-
BMS:
-
48V 16S 200A BMS
Seplos Mason Mason 280 Stainless Steel BOX Base
Product Specification
|
General Specification
|
Nominal Voltage (V)
|
51.2V
|
|
|
|
Nominal Capacity (Ah)
|
280Ah @0.5℃ discharge current25＋2℃
|
|
|
|
Nominal Power (Wh)
|
14.3KWh
|
|
|
|
Dimension (mm)
|
750*440*251mm
|
|
|
|
Weight (Kg)
|
112±5KG
|
|
|
|
Discharge Cut-off Voltage (V)
|
41.6V
|
|
|
|
Charge Voltage (V)
|
57.6V
|
|
|
|
Continuously Charge/Discharge Current (A)
|
140A @25士2C (Recommended)
|
|
|
|
Max Standard charge/discharge Current (A)
|
200A @25士2C
|
|
|
|
Standard charge/discharge Current (A)
|
140A @25士2C (Recommended)
|
|
|
|
Max Standard charge/discharge Current (A)
|
200A @25土2C
|
|
|
|
Working Temperature
|
0~50°c(Charge);
-10~50C(Discharge);
-20~55°C(Storage)
|
|
|
|
SOC Range
|
5%-100%
|
|
|
|
Recommended SOC Range
|
15-95%
|
|
|
|
Communication Interface
|
CAN (Default)or RS485
|
|
|
|
Humidity
|
10% - 85%
|
|
|
|
Ip level
|
IP 20
|
|
|
Assembly Parts Packing List
|
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse 4 * Handle 2 * PCB Board for BMS and Cell Connection 3 * Upper and Lower Latch lock 1 * LCD Screen 1 * LCD Screen Sticker 4 * Button Cap 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) 2 * Battery Terminals (P+ Terminal and P- Terminal) |
|
|
Product Picture
48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS) Will be provided together.
Packing List
Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
