- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JEWEL
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
5400*1750*1940 MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hydraulic force:
-
40T
-
control system:
-
PLC control with electric buttons
-
bale size:
-
720*720*(500-1300) mm
-
bale lines:
-
4
-
output:
-
1-2 ton/H
-
voltage:
-
3 phase(customizable)
-
Factory history:
-
since year 1995
-
out-bale way:
-
continuously push bag
-
warranty:
-
1 year
Quick Details
-
Voltage:
-
customer requirement
-
Power:
-
11KW/15HP
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JEWEL
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
5400*1750*1940 MM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Hydraulic force:
-
40T
-
control system:
-
PLC control with electric buttons
-
bale size:
-
720*720*(500-1300) mm
-
bale lines:
-
4
-
output:
-
1-2 ton/H
-
voltage:
-
3 phase(customizable)
-
Factory history:
-
since year 1995
-
out-bale way:
-
continuously push bag
-
warranty:
-
1 year

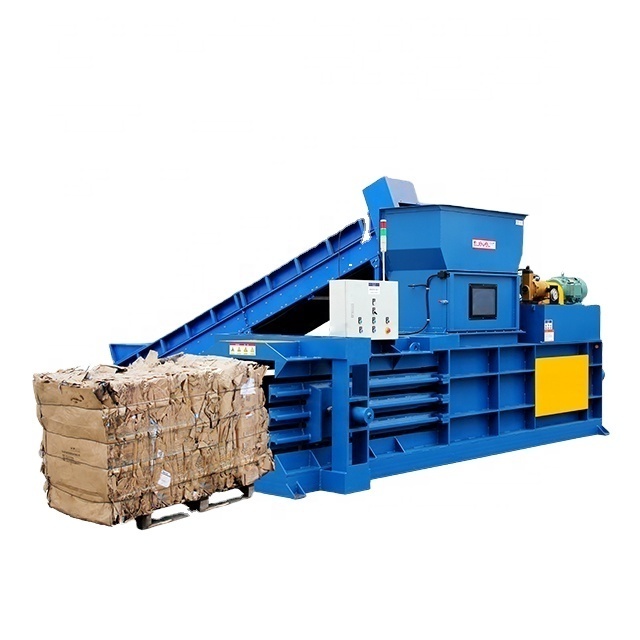

Horizontal Semi-Automatic Hydraulic Baler Series
Product Description
Scope:
Features:
* Close output door from two sides, adjust conveniently.
* It compresses and pushes packets from two sides, and it makes adjustable travel and continuous bale out.
* It configures with PLC program and electric button control, operated simply and equipped with automatic feeding detection, can compress bale automatically.
* The baling length can be set at random, and provides bundling reminder device.
* Block size and voltage can be customized according to customers' reasonable requirements. Bales weight depends on different materials.
* It has three phase voltage and safety interlock device, simple operation. Feed inlet can connect to air-blower or conveyor line to feed material directly, improving working efficiency.
* The British imported seals, improve the service life of the cylinder.
* Oil pipe joint uses cone links without gasket, has no phenomenon of oil leak.
* The motor connects with pump directly to ensure 100% concentricity and prolong the service life of the pump.
* Adopt unique concave type of multi-point cutter design to improve the cutting efficiency and prolong service life of the cutter.
* German hydraulic technology to save energy and protect environment.
* Adopt the vessel classification of welding process, to ensure the equipment more stable and reliable.
Data Sheet:
|
Model
|
JPW40E
|
JPW80E
|
JPW150E
|
|
Hydraulic Power(T)
|
40
|
80
|
150
|
|
Packaging Size（W*H*L）
|
720*720*(500-1500)
|
800*1000*(500-2000)
|
1100*1200*(1000-2100)
|
|
Bale Weight(KG)
|
200-350
|
350-600
|
700-1300
|
|
Feed Opening Size（L*W）
|
1200*720
|
1500*800
|
2400*1100
|
|
Capacity(T/H)
|
1-2
|
2-4
|
6-10
|
|
Bale Line
|
4
|
4
|
5
|
|
Bale Output Type
|
continuously push bag
|
continuously push bag
|
continuously push bag
|
|
Voltage
|
can be customized
|
can be customized
|
can be customized
|
|
Power(KW/HP)
|
11-15/15-20
|
20-30/30-40
|
40-60/60-80
|
*The above parameters can be customized according to customer's requirement.
*We also have other models of this series.
