- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1years
-
Brand Name:
-
STARFLO
-
Model Number:
-
FP-12
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
84W
-
Outlet Size:
-
3/8'' female NPT
-
Power:
-
84W
-
Product name:
-
gear pump for diesel transfer
-
Fuel:
-
Electric
-
Pump Body:
-
Brass
-
Gear:
-
Bronze
-
Max Flow:
-
14LPM (3.7GPM)
-
Amps:
-
10.0A Max for 12V, 6.0A Max for 24V
-
Port:
-
3/8'' female NPT
-
Certification:
-
CE, ISO9001:2008, RoHS
-
Self Priming:
-
3.0m Vertical Lift
Quick Details
-
Application:
-
Industrial Utilities, Marine, Water Treatment Solutions
-
Pressure:
-
14PLM
-
Voltage:
-
12V, 12V DC or 24V DC
-
Warranty:
-
1years
-
Brand Name:
-
STARFLO
-
Model Number:
-
FP-12
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
84W
-
Outlet Size:
-
3/8'' female NPT
-
Power:
-
84W
-
Product name:
-
gear pump for diesel transfer
-
Fuel:
-
Electric
-
Pump Body:
-
Brass
-
Gear:
-
Bronze
-
Max Flow:
-
14LPM (3.7GPM)
-
Amps:
-
10.0A Max for 12V, 6.0A Max for 24V
-
Port:
-
3/8'' female NPT
-
Certification:
-
CE, ISO9001:2008, RoHS
-
Self Priming:
-
3.0m Vertical Lift
Starflo 14LPM 12volt DC mini small Italy hydraulic automatic electric oil gear pump for diesel transfer
BENEFITS :
• Reversible self-priming
• Compact size with exceptional flow rate (3.7GPM / 14.0 LPM)
• Powerful reversible pumps specially designed to be used with oils.
• Perfect for pumping oil.
• Sealed motor design.
• Thermally Protected Motor.
• Self-priming.
• Stainless Steel shaft.
| Type | Gear Oil Pump |
| Voltage | 12V DC & 24V |
| Inlet Ports | 3/8" Female Thread. 1/2" Barbed Fittings Included |
| Oulet Ports | 3/8" Female Thread. 1/2" Barbed Fittings Included |
| Seal |
Fluoroelastomer lip seal
|
| Self Priming | 3.0 Vertical lift |
| Max Pressure | Can generate pressure to 2 Bar(30PSI) |
| Liquid | Lubricants and viscosite liquids |
| Duty Circle | Inetmittent |
| Max Amps Draw | 10.0A for 12V DC, 6.0A for 24V DC |
APPLICATIONS:
Marine; RV; Extreme duty; General Industrial; Transmission fluid transfer; Lubricant and viscous liquid transfer;Oil change pump
| Model | Volts | Flow | Max Lift | Amps(A) | Max Draw(A) | Packing Size(mm) | N.W /G.W(KGS)2.48/2.68 |
| FP-12 | 12V DC | 14LPM | 3M | 7.0A | 10.0A | 215*135*110 | 2.48/2.68 |
| FP-24 | 24V DC | 14LPM | 3M | 4.0A | 6.0A | 215*135*110 | 2.48/2.68 |
DIMENSIONS:

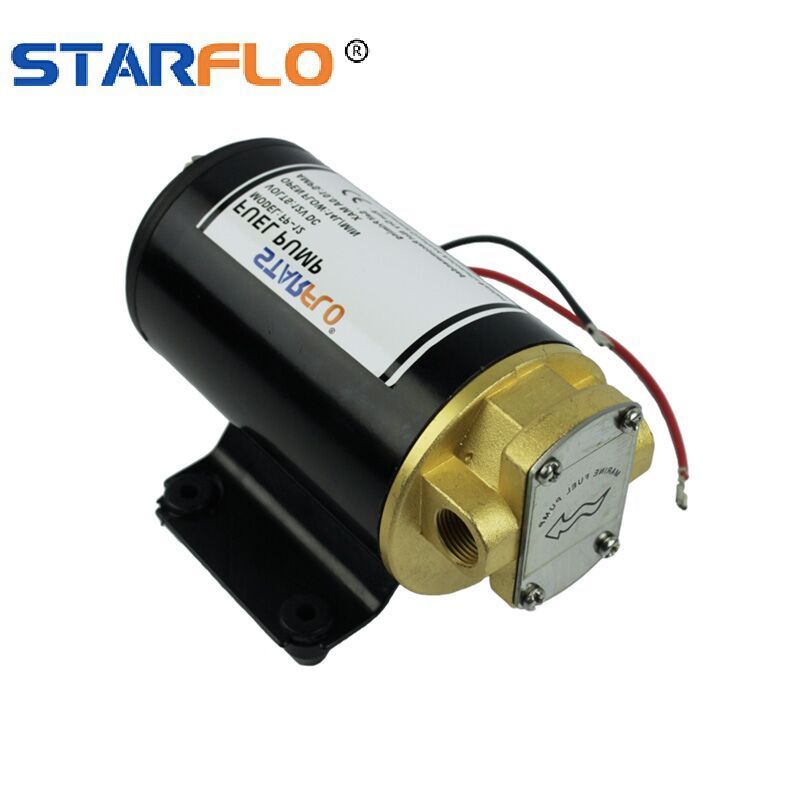

PUMP PICTURES:
Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.
Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, and have different customer make their own OEM product.
Like customers' own lable and box design with customers' logo.
Q: What i
s your terms of payment?
A: 30% T/T in advance,70% after finish production. If you have any another question, pls feel free to contact us.
Q: Can I get some samples before place order and how long for a sample?
A: Yes, Sample order is welcome, usually the sample delivery time is within 7days.
Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 10-15 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.
Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.
Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.
Q: How do you ship the goods ?
Q: shipping by express (sample order) and by air or by sea (bulk order), please contact before order because the freight base on quantity.
Q: What is your port of loading?
A: Shanghai port, Ningbo port, Fuzhou port , Xiamen port.
