Quick Details
-
Voltage:
-
380V
-
Power:
-
80-120KVA
-
Dimension(L*W*H):
-
5*4*3M
-
Weight (KG):
-
6000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applied industry:
-
automotive, audio and various small appliances, computers,etc
-
Coating color:
-
gold, silver, red, blue, green, purple, multi color, etc
-
Control mode:
-
Manual/Automatic all-in-one mode, Touching screen+PLC
-
Vacuum system:
-
Diffusion pump +Roots pump +Mechanical pump +Holding pump
-
Power source Type:
-
Thermal evaporation power, ion bombard power, RF power
-
Vacuum chamber structure:
-
Vertical double/single door, horizontal single door,
-
Ultimate vacuum:
-
8.0*10-4Pa
-
Workpiece motion mode:
-
Public rotation/Frequency control
Quick Details
-
Machine Type:
-
JYZ-1820, Painting Equipment, Plc Controller Programmable Logic Controller, Pre-treatment Equipment, Conveying Equipment, Curing oven, Coating Equipment, Anodized Equipment, Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Junying
-
Voltage:
-
380V
-
Power:
-
80-120KVA
-
Dimension(L*W*H):
-
5*4*3M
-
Weight (KG):
-
6000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Applied industry:
-
automotive, audio and various small appliances, computers,etc
-
Coating color:
-
gold, silver, red, blue, green, purple, multi color, etc
-
Control mode:
-
Manual/Automatic all-in-one mode, Touching screen+PLC
-
Vacuum system:
-
Diffusion pump +Roots pump +Mechanical pump +Holding pump
-
Power source Type:
-
Thermal evaporation power, ion bombard power, RF power
-
Vacuum chamber structure:
-
Vertical double/single door, horizontal single door,
-
Ultimate vacuum:
-
8.0*10-4Pa
-
Workpiece motion mode:
-
Public rotation/Frequency control
INTRODUCTION:
Ningbo Junying Vacuum Machinery Co., LTD. is a High technology enterprise of integrity of research, manufacture, distribution and service. Since its foundation, we are mainly on high technology material production, vacuum device research and sales home and abroad.
Our vacuum device is designed by famous professor in china vacuum field, we also cooperate with BEIJING GENERAL RESEARCH INSTITUTE FOR NONFERROUS METALS,and many other vacuum manufactories in recent years, we have made outstanding achievement on surface equipment, new technology processing, and usage of new material, providing whole set of equipments and materials for vacuum factory.
BUSINESS SCOPE:
Whole set Vacuum coating equipment and technology, pum p, valve, vacuum gauge, oil, grease, sealing, vacuum coating material, metal and alloy. Debugging and improving vacuum equipment, surface processing and technology research on new type plastic, metal, glass, provide fittings and counseling.
Plastic Metalizing(aluminum,chrome,stainless steel)vacuum coating plating machine
The equipment adopts the resistance heating in the vacuum chamber, to melt and vaporize the metal wire (aluminum wire) cling to the resistance wire. The vaporized metal molecule deposit on the substrates, to gain the smooth film as well as high reflectivity. Thus the surface of the items can be decorated and beautified.
Characteristic : reasonable structure, even film, good-quality film forming, quick pumping speed, the cycle of short, high efficiency and easy operation, low energy consumption and performance advantages of stability.
Applied industry:
Widely used in automotive, audio and various small appliances, computers, clocks and watches, toys, cell phones, reflective Cup, cosmetics, toys, tableware, sanitary ware, shoe heel,
ABS, PS, PP, PC, PVC, PET, nylon, metal, Boli, glass, ceramics, TPU
, etc.
Electroplating effects:
general electroplating-face, dumb-(semi-mute, all dumb), the electroplating process wrinkles, lampworking, raindrops, seven colors;
Coating color:
gold, silver, red, blue, green, purple, multi color, and so on.
We can make design the dimension of the vacuum chamber according to your requirement. We can also design and configure the vacuum unit and electric controlling system according to your requirement.
Specification:
| Model | JYZ-1214 | JYZ-1418 | JYZ-1618 | JYZ-1820 |
| Vacuum chamber size |
Φ1200×1400mm |
Φ1400×1800mm |
Φ1600×1800mm |
Φ1800×2000mm |
| Total Power | 30-60KW | 35-60KW | 45-90KW | 50-90KW |
|
Vacuum chamber structure |
Vertical , door on the side, double/single door | |||
|
Material of vacuum chamber |
superior stainless steel vacuum chamber
|
|||
|
Workpiece turntable |
Planetary frame, revolution + rotation |
|||
|
Power source Type |
Bombardment bios and heating power supply |
|||
|
Vacuum system |
Oil diffusion Pump+ Mechanical pump +Maintenance Pump + Roots Pump (the number of the pumps are designed according to customer’s need) |
|||
| Cooling system | water-cooling system | |||
| Ultimate vacuum | ≤8×10-4pa | |||
|
Pump time |
Pump from atmosphere to 5.0*10 -2 , 6 minutes |
|||
|
Control mode |
Manual/semi-Automatic , Automatic ,Touch screen+PLC |
|||
| Technology | vacuum evaporation coating | |||
|
Remark |
Dimension of the vacuum chamber can be designed and equipped according to customers demand. |
|||

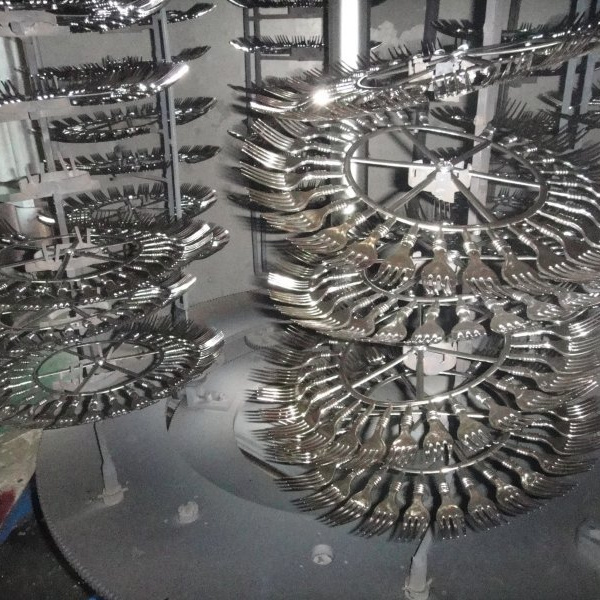

Coating samples:
