Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
Dia.12x110mm
-
Weight:
-
0.2
-
Warranty:
-
8000 Hour
-
Working Temperature Range:
-
-5 - 600 ℃
-
After-sales Service Provided:
-
Overseas third-party support available
-
Material:
-
Stainless steel/Iron/Incoloy 800
-
Thermocouple:
-
K or J
-
Lead Connection Option:
-
Crimped or Swaged
-
Insulation:
-
High Purity MgO
-
Heating Wire:
-
Ni-Cr80/20
-
Wattage Density:
-
high
-
Thread:
-
With or w/o
-
Wire length:
-
1000mm
-
Certification:
-
CE ROHS
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-240v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
Dia.12x110mm
-
Weight:
-
0.2
-
Warranty:
-
8000 Hour
-
Working Temperature Range:
-
-5 - 600 ℃
-
After-sales Service Provided:
-
Overseas third-party support available
-
Material:
-
Stainless steel/Iron/Incoloy 800
-
Thermocouple:
-
K or J
-
Lead Connection Option:
-
Crimped or Swaged
-
Insulation:
-
High Purity MgO
-
Heating Wire:
-
Ni-Cr80/20
-
Wattage Density:
-
high
-
Thread:
-
With or w/o
-
Wire length:
-
1000mm
-
Certification:
-
CE ROHS
Product Description

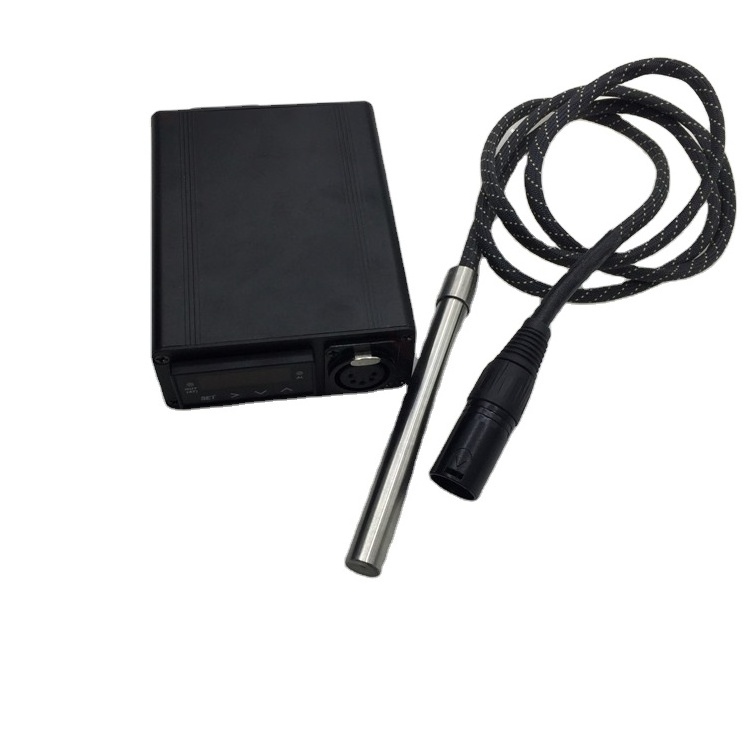

Cartridge Heater Description
Cartridge heaters is consist of a cylindrical stainless steel tube and thus provide a high corrosion prevention. The heating wire inside which is wound onto a ceramic core. The number of coils varies depending on the power. and provide a great uniform distribution of heat, which considerably increases the long life of the heater as well as prevents the oxidation of the heater wire even at high temperatures .The solids, liquids, and gases need to be heated by cartridge heater, transmit heat quickly by conduction if the producer of the heat (the cartridge) is in direct contact with the heat sink (any solid, liquid, or gas). Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc they are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands.
Specifications
1)Hi-Density swaged Cartridge Heater
2)Many diameters offered as standard
3)Alloy sheath for high corrosion resistance
Note:
1.We support OEM order,and print Brand or Logo on surface.
2.We can custom cartridge heaters specially (According to your size,voltage,power etc.)
Cartridge Heater Technical Detail
Tube diameter:
customized,Min dia.2.8mm
Tube Material:
SS304;SS316,SS321,NICOLOY800 etc.
Insulation Material:
High-purity Mgo
Reisistance wire element:
Ni-Cr or FeCr
Wattage density:
high/middle/low(5-25w/cm2)
Lead Connection Option:
Crimped or Swaged leads
Lead wire type:
10" Standard(Teflon/silicone high temperature frberglass)
Detailed Images
Related Products
Dia.8x125mm, 110v 125w, with M8 thread
Internal wire length 500mm
Dia.3x31mm, 24v 25w
Customized heater cartridge
Dia.4x17mm, 24v 35w
Dia.12.7x250mm, 24 0 500w
Right angle
With J type thermocouple
Right angle cartridge heating rod
Dia.8x400mm, 240v 500w
Heater cartridge with 300mm S.S braided wire
Dia.9.5 x 45mm, 120v 150w
Applications
Cartridge heater application
Liquid Immersion
Plastic Molds
Dies
Labeling
Medical Equipment
Platens
Packaging Equipment
Hot Stamping
Sealing
Injection Molding
Production Flows
Certifications
Our Company
Topright Technology Culture
How does your factory do regarding quality control?
"
Quality is in my hand,customer in our heart
”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers. Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
