G

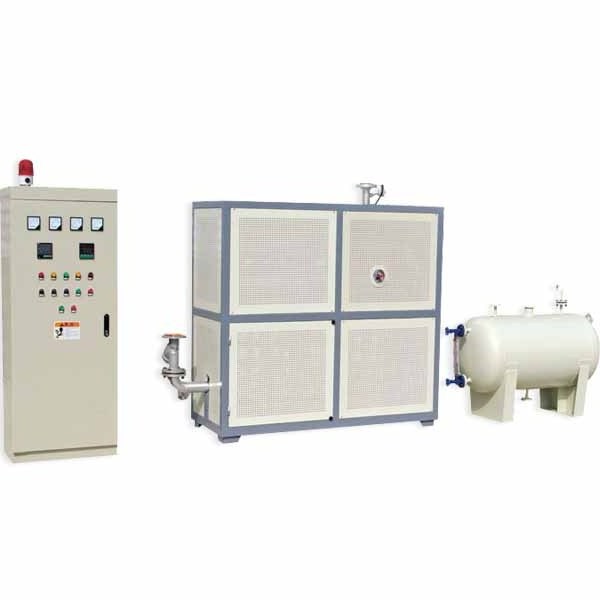

YD serial Thermal oil heater is a kind of new-typed heating equipment with heat energy conversion. It takes the electricity as power, changes it into the heat energy through the electrical organs, takes the organic carrier (heat thermal oil) as medium, and continues to heat through the compulsive circulation of the heat Thermal oil driven by high-temperature oil pump, so as to meet the heating requirements of users. In addition, it could also satisfy the requirements of set temperature and temperature controlling accuracy. We are manufactured for capacities from 6 to 2,400 kw as well as temperatures of up to +320 °C.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Guangyi
-
Dimension(L*W*H):
-
Adjustable
-
Weight:
-
Adjustable
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
No overseas service provided
-
Heating medium::
-
conduction oil
-
Alternative name::
-
thermal oil boiler,hot oil heater,conduction oil heater
-
Applicable industry::
-
Chemical fiber,Non-woven industry etc.
-
Applicable equipment::
-
Hot press machine,hot roller,reaction kettle etc.
-
Environmental requirement::
-
Without direct sunlight.
-
Ambient temperature::
-
Between -10℃ and 45℃.
-
Another requirement::
-
An indoor space with ventilation or fresh air.
-
Size of inlet and outlet::
-
Customizable
-
Certification:
-
ISO9001,ISO14001,CE
Quick Details
-
Type:
-
fluid heater, electric heating equipment thermal oil heater for reaction kettle
-
Power Source:
-
Electric
-
Voltage:
-
Customizable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Guangyi
-
Dimension(L*W*H):
-
Adjustable
-
Weight:
-
Adjustable
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
No overseas service provided
-
Heating medium::
-
conduction oil
-
Alternative name::
-
thermal oil boiler,hot oil heater,conduction oil heater
-
Applicable industry::
-
Chemical fiber,Non-woven industry etc.
-
Applicable equipment::
-
Hot press machine,hot roller,reaction kettle etc.
-
Environmental requirement::
-
Without direct sunlight.
-
Ambient temperature::
-
Between -10℃ and 45℃.
-
Another requirement::
-
An indoor space with ventilation or fresh air.
-
Size of inlet and outlet::
-
Customizable
-
Certification:
-
ISO9001,ISO14001,CE
Products Description
1. Electric heater system
2. High thermal efficiency
3. Horizontal centrifugal pump
4. All welded construction
5. PID Temperature Controller (FUJI Electric PXR5/9)
6. F
ast installation and
low maintenance efforts
7. Isolation gate valves and strainer
8. SSR(Solid State Relay) control on heater circuits
9. Pressure test and Functional test of system
For non-woven fabrics, chemical industry, chemical fiber, rubber, composite, sanitary fittings and other industries.
GYD series electric thermal oil heater
parameter table
Model
|
Heater
Power
(kw)
|
Oil Capacity
(L)
|
|
Heating-oil Pump
Flow Head Power
|
|
|
Total Weight
(KG)
|
Expansio
Tank
(L)
|
||
GYD10
|
10
|
15
|
1100*500*1100
|
6
|
27
|
1.5
|
200
|
100
|
||
GYD18
|
18
|
23
|
1600*500*1250
|
6
|
27
|
1.5
|
200
|
130
|
||
GYD24
|
24
|
28
|
1950*650*1450
|
12.5
|
30
|
3
|
350
|
150
|
||
GYD36
|
36
|
48
|
1950*650*1450
|
12.5
|
30
|
3
|
350
|
200
|
||
GYD48
|
48
|
48
|
1950*650*1450
|
18
|
40
|
5.5
|
350
|
230
|
||
GYD60
|
60
|
52
|
1950*650*1450
|
18
|
40
|
5.5
|
350
|
230
|
||
GYD70
|
70
|
60
|
2150*700*1750
|
30
|
48
|
7.5
|
550
|
280
|
||
GYD90
|
90
|
68
|
2150*700*1750
|
30
|
48
|
7.5
|
550
|
280
|
||
GYD120
|
120
|
105
|
2200*700*1880
|
30
|
48
|
7.5
|
750
|
300
|
||
GYD150
|
150
|
195
|
2200*700*1880
|
30
|
48
|
7.5
|
750
|
300
|
||
GYD180
|
180
|
230
|
2200*900*1880
|
45
|
48
|
11
|
1200
|
320
|
||
GYD240
|
240
|
260
|
2300*1000*1950
|
80
|
38
|
15
|
1200
|
350
|
||
GYD300
|
300
|
293
|
2600*1200*2000
|
80
|
38
|
15
|
1600
|
350
|
||
GYD400
|
400
|
358
|
2800*1200*2000
|
80
|
38
|
15
|
1750
|
450
|
||
GYD500
|
500
|
510
|
2800*1500*2000
|
80
|
38
|
15
|
1850
|
550
|
||
GYD600
|
600
|
562
|
3000*1800*2150
|
80
|
38
|
15
|
1950
|
600
|
||
GYD700
|
700
|
638
|
3000*1800*2150
|
80
|
38
|
15
|
2200
|
650
|
