Quick Details
-
Table Travel (Y) (mm):
-
700
-
Weight (T):
-
10 T
-
Positioning Accuracy (mm):
-
0.0075
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
15/18.5
-
Max. Table Load(kg):
-
1400 kg
-
Place of Origin:
-
Shandong, China
-
Product name:
-

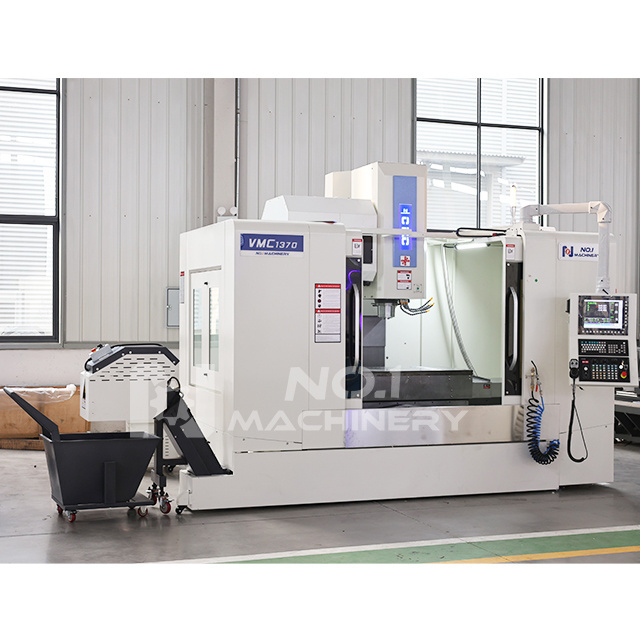

vmc 1370 center cnc machining center vmc 850
-
Application:
-
Metal Machining Center
-
CNC or Not:
-
CNC
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Color:
-
Custom-made
-
Usage:
-
Metal Parts Machining
-
Key word:
-
aluminium profile machining center
-
Magazine capacity:
-
16/24/24
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Quick Details
-
Table Size (mm):
-
1360x700
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
1300
-
Table Travel (Y) (mm):
-
700
-
Weight (T):
-
10 T
-
Positioning Accuracy (mm):
-
0.0075
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
15/18.5
-
Max. Table Load(kg):
-
1400 kg
-
Place of Origin:
-
Shandong, China
-
Product name:
-
vmc 1370 center cnc machining center vmc 850
-
Application:
-
Metal Machining Center
-
CNC or Not:
-
CNC
-
Control system:
-
SIEMENS GSK KND FANUC MITSUBISHI(optional)
-
Color:
-
Custom-made
-
Usage:
-
Metal Parts Machining
-
Key word:
-
aluminium profile machining center
-
Magazine capacity:
-
16/24/24
-
After-sales Service Provided:
-
Online support
-
Certification:
-
ISO9001
Product Description
Specification
|
Specifications
|
Units
|
VMC1370A
|
|
X/Y/Z axis stroke
|
mm
|
1300×700×700
|
|
The spindle end face to the workbench
|
mm
|
140-790
|
|
Spindle center to guide the post
|
mm
|
785
|
|
X/Y/Z axis moving fast
|
m/min
|
15×15×12
|
|
A cutting feed
|
mm/min
|
1-5000
|
|
Table size
|
mm
|
1350*700
|
|
The largest bearing
|
Kg
|
1000
|
|
T slot
|
mm
|
5-22-140
|
|
Spindle speed
|
rpm
|
8000
|
|
The spindle diameter
|
mm
|
70
|
|
The spindle taper hole
|
|
BT40
|
|
The spindle broach force
|
KN
|
8
|
|
Main motor power
|
KW
|
11kw/15kw
|
|
Knife library type
|
|
Disc type
|
|
Library knife a
|
|
24
|
|
The largest diameter cutter
|
mm
|
127/200
|
|
The biggest tool length
|
mm
|
300
|
|
Maximum tool weight
|
Kg
|
18
|
|
Machine tool appearance size( length×width×height )
|
mm
|
3870×3165×2920
|
|
Machine net weight
|
Kg
|
10000
|
