Quick Details
-
Brand Name:
-
DOBEST
-
Voltage:
-
110V, 200V, 220V, 230V, 380V, 400V
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
Customized
-
Application:
-
Milk
-
Name:
-
Milk Processing Plant
-
Final product:
-
Flavoured Milk Yogurt
-
Raw material:
-
Fresh Cow Milk
-
Function:
-
Industrial Milk Production
-
Product name:
-
Milk Prodution Line
-
Keywords:
-
Milk Pasteurazation Machine
-
Usage:
-
Diary Product
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
pasteurizer
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DOBEST
-
Voltage:
-
110V, 200V, 220V, 230V, 380V, 400V
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
Customized
-
Application:
-
Milk
-
Name:
-
Milk Processing Plant
-
Final product:
-
Flavoured Milk Yogurt
-
Raw material:
-
Fresh Cow Milk
-
Function:
-
Industrial Milk Production
-
Product name:
-
Milk Prodution Line
-
Keywords:
-
Milk Pasteurazation Machine
-
Usage:
-
Diary Product

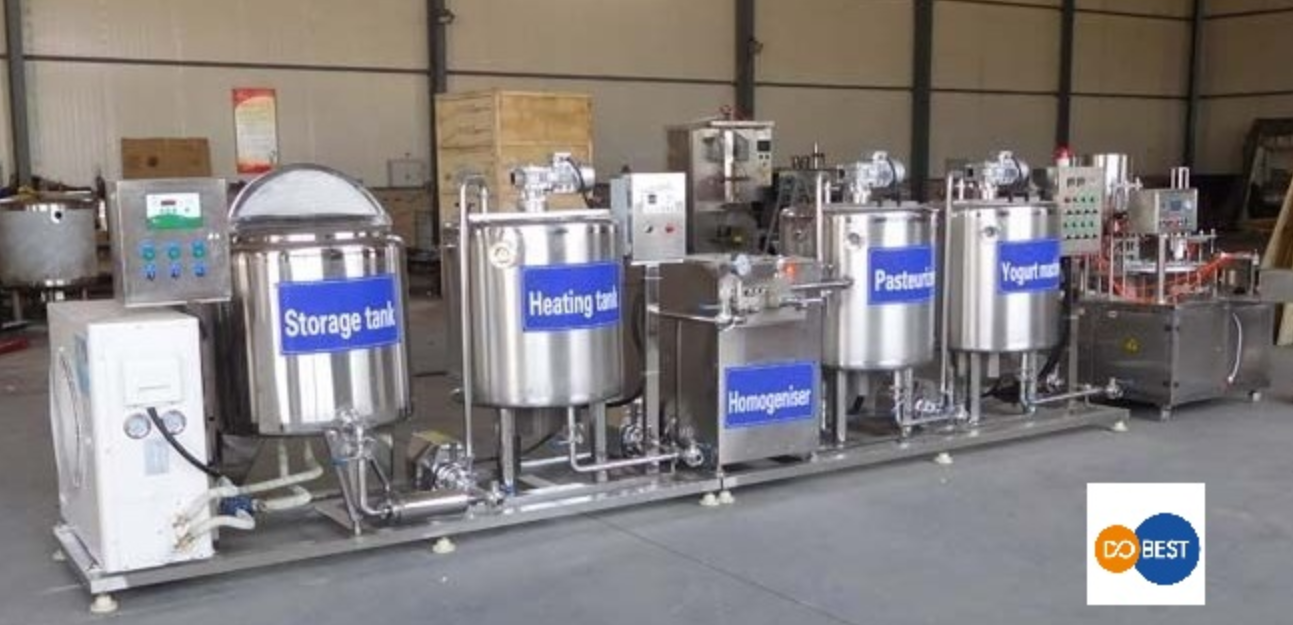

Fully automatic yoghurt maker machine industrial dairy product milk yogurt production line
Product Description:
Item
|
Value
|
|
|
|
|||
Applicable Industries
|
Manufacturing Plant, Food & Beverage Factory, Farms, Dairy factory, Milk processing industry
|
|
|
|
|||
After Warranty Service
|
Video technical support, Online support, Spare parts, Field maintenance and repair service
|
|
|
|
|||
Voltage
|
220v/380v
|
|
|
|
Power
|
12kw
|
|
|
|
|||
Weight
|
500KG
|
|
|
|
|||
Dimension(L*W*H)
|
1400*780*1530mm
|
|
|
|
|||
Material
|
304stainless Steel
|
|
|
|
Final product
|
Flavoured Milk Yogurt
|
|
|
|
|||
Capacity
|
300-10000L
|
|
|
|
|||
Processing Types
|
Complete Processing Line
|
|
|
|
|||
Tank type
|
Cooling, Heating, Sterilization, Fermentation Tank
|
|
|
|
Details show:

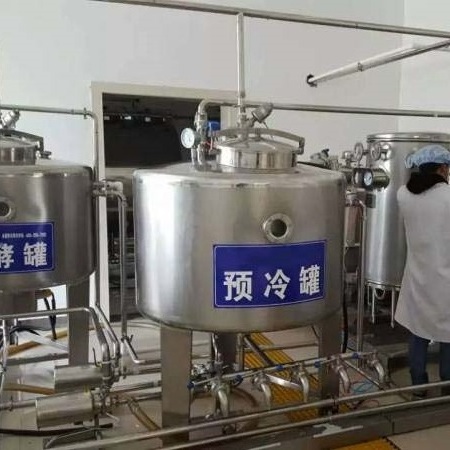

Cooling Tank
Material: SUS304
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Installation size:
Power supply: 380v/50Hz
Total power: 2Kw
Cooling capacity: 5000 kcal/hour
Installation size:
1700*1100*1950mm
Refrigeration medium: R22
Thermal inaulation performance:
≤1℃/3H Compressor.2P
Motor power/quantity: 0.75kw/1
Refrigeration medium: R22
Thermal inaulation performance:
≤1℃/3H Compressor.2P
Motor power/quantity: 0.75kw/1

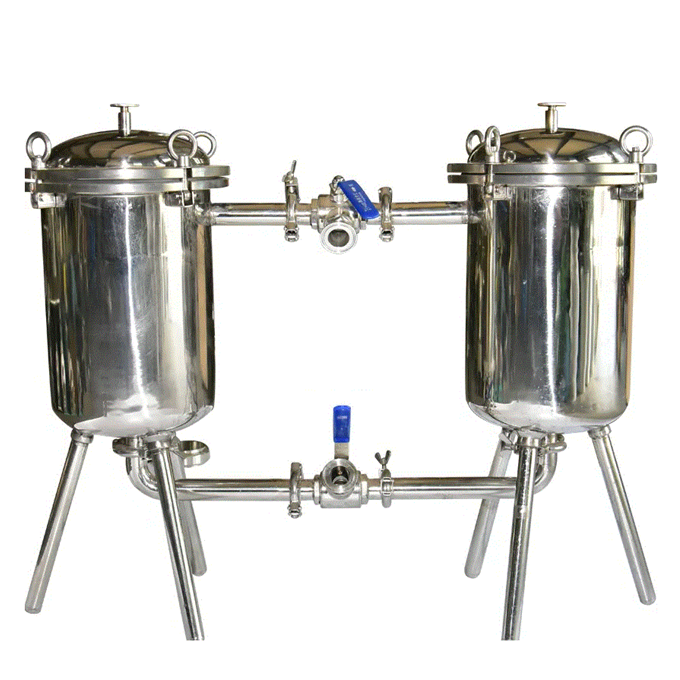

Duplex filter
filtering capacity: 5 t/h
Applicable temperature: ≤120℃
Filter aperture: 200 mesh
Working pressure: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)
Preheating tank
Material: SUS 304
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1020*870*1530mm
Power of stirring motor: 0.55kw
Stirring speed: 36 r/min
Working pressure: 0.09 Mpa
Maximum temp:
the boiling point of the liquid at the local pressure
Homogenizer
Output: 200 L/H
Maximum pressure: 25 Mpa
Motor power: 4 kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Plunger material: 9Cr18
Plunger diameter and frequency:
20mm,about 210 times/min
Plunger sealing materisl:
V-shaped cloth clip ring
Check valve structure: cone valve
Maximum pressure: 25 Mpa
Motor power: 4 kw
Dimensions: 990*600*850mm
Whole machine weight: 600kg
Pump body material: 1Cr18Ni9Ti
Plunger material: 9Cr18
Plunger diameter and frequency:
20mm,about 210 times/min
Plunger sealing materisl:
V-shaped cloth clip ring
Check valve structure: cone valve
Pasteurizer
Filtering capacity: 5 t/h
Applicable temperature: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)
Applicable temperature: ≤0.2MPa
Filter material: 304 stainless steel
Filtration accuracy: 200(mesh/in)
Fermenter
Material: SUS304
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature:
the boiling point of the liquid at the local pressure
Power supply: 380v 50Hz
Power: 9kw
Installation size: 1400*1400*1950mm
Stirring motor: 0.55kw
Stirring speed: 36r/min
Working pressure: 0.09 Mpa
Maximum temperature:
the boiling point of the liquid at the local pressure
Filling Machine
Material: SUS304
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Working method: continuous work
Filling method: automatic filling
Equipment size: 1300*1300*1750mm
Acid/Alkali/Water Tank
Water tank capacity: 500 L
Alkali tank capacity: 500 L
Acid tank capacity: 500 L
Pump power: 1.5 kw
Equipment weight: 500 kg
Dimensions: 4000*900*2300 mm
Alkali tank capacity: 500 L
Acid tank capacity: 500 L
Pump power: 1.5 kw
Equipment weight: 500 kg
Dimensions: 4000*900*2300 mm
Air Compressor
Power: 7.5kw
Wooden box size: 1240*500*1060mm
Wooden box size: 1240*500*1060mm
final products:
