Quick Details
-
4 wheel tractor:
-

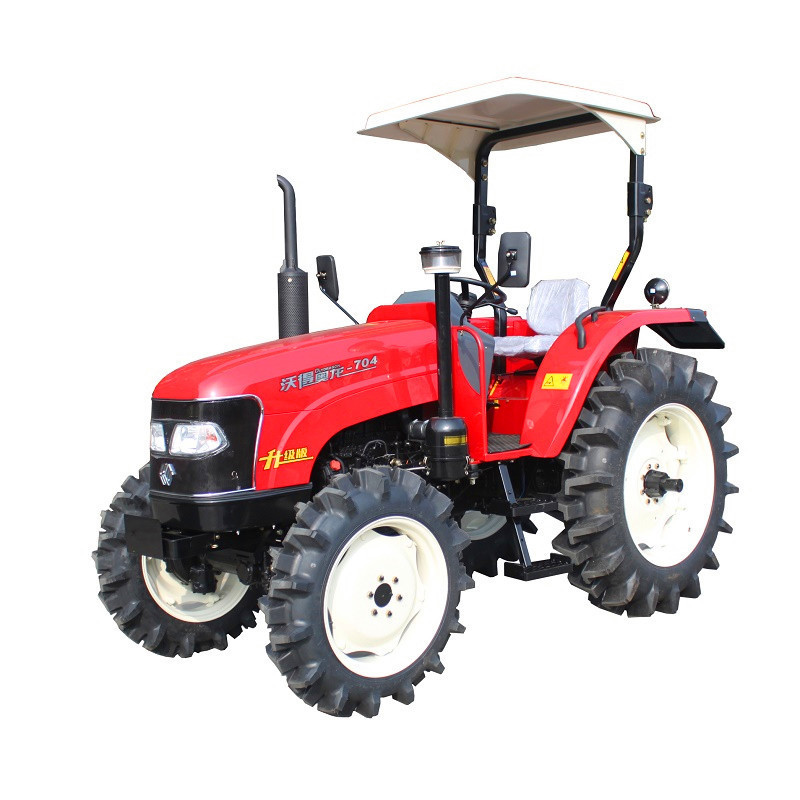

WD704F 70HP 4x4 small farm tractors and mini tractor agricola
-
Engine Model:
-
XINCHAI
-
Engine power:
-
70hp
-
gearbox:
-
8+8 shuttle type
-
Model:
-
WD704F
-
Clutch:
-
Dual-stage
-
Implements:
-
Plough Harrow Cultivator
-
warranty:
-
1year
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Brand Name:
-
WORLD
-
Place of Origin:
-
Jiangsu, China
-
Engine Brand:
-
XINCHAI
-
4 wheel tractor:
-
WD704F 70HP 4x4 small farm tractors and mini tractor agricola
-
Engine Model:
-
XINCHAI
-
Engine power:
-
70hp
-
gearbox:
-
8+8 shuttle type
-
Model:
-
WD704F
-
Clutch:
-
Dual-stage
-
Implements:
-
Plough Harrow Cultivator
-
warranty:
-
1year
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
Main Features of 70hp small farm tractors:
-four wheel drive tractor,
-XINCHAI engine, GUO III, 4 cylinders 4 strokes,
-8+8 gearbox shuttle type,
-tires size 9.5 -2 4 /11- 32 paddy type,
-dual action clutch, unilateral pressure, hydraulic steering,
-PTO speed 540/760, one pair of output valves, Sunroof,
-with front ballast, Rear ballast
Technical data of WD704F agriculture tractors:
|
ITEMS |
DESCRIPTION |
|
Model |
WD704F |
|
Canopy/Cabin |
Canopy/Sunroof |
|
Engine |
|
|
Engine Power/Speed(HP) |
XINCHAI , 7 0HP |
|
Engine Type |
4 Cylinder,Inline,Water-cooling,4 Strokes,Injection |
|
Fuel Tank Capacity(L) |
60 |
|
Air Cleaner |
Dry,dual-element |
|
Transmission |
|
|
No.of Speed |
Shuttle 8+8 |
|
Main Cluth |
Double |
|
Brake |
Mechanical disc |
|
Differential Lock |
Pin type,mechanical |
|
PTO Speed(rpm) |
540/760 or 540/1000 |
|
Hydraulics |
|
|
Behind Valve |
2 Pair of Hydraulic Valve |
|
Behind Lift Point(KG) |
1260 |
|
Tires |
|
|
Tires Standard(Front/Rear)(mm) |
9.5 -2 4 /11- 32 |
|
Travelling Speed(MAX.)(Km/H) |
33.97 |
|
Other Features |
|
|
Drive System |
Bevel Gear Type |
|
Steering |
Hydraulic Power Steering |
|
Front/Rear Counter Weight |
Euiqpped |
|
Flat Board |
Flat Board |
|
Dimension(mm) |
3820*1710*2660 |
|
Ground Clearance(mm) |
340 |
|
Weight (kg) |
2 790 |
