Quick Details
-
Brand Name:
-
DQ
-
Model Number:
-
DQ-02
-
Product name:
-
cattle yard panels
-
Raw Material:
-
Pre-galvanized steel pipe
-
Surface treatment:
-
Galvanized/ PVC Coated
-
Panel size(HxL):
-
1.8*2.1m,1.6*2.1m,1.8x2.4m etc
-
Vertical square pipe:
-
RHS 50X50X2mm or round pipe 60x2mm
-
Horizonal Oval pipe:
-
Oval pipe 80x40x2mm
-
Frame OD:
-
RHS 50X50X2mm or round pipe 60x2mm
-
Bars/Rails:
-
6 Bars/Rails
-
Color:
-
Drk green,black, orange, white,yellow
-
Using:
-
horse sheep, goat ,cattle ,cow fence
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, FSC, Renewable Sources, Rodent Proof, Rot Proof, TFT, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DQ
-
Model Number:
-
DQ-02
-
Product name:
-
cattle yard panels
-
Raw Material:
-
Pre-galvanized steel pipe
-
Surface treatment:
-
Galvanized/ PVC Coated
-
Panel size(HxL):
-
1.8*2.1m,1.6*2.1m,1.8x2.4m etc
-
Vertical square pipe:
-
RHS 50X50X2mm or round pipe 60x2mm
-
Horizonal Oval pipe:
-
Oval pipe 80x40x2mm
-
Frame OD:
-
RHS 50X50X2mm or round pipe 60x2mm
-
Bars/Rails:
-
6 Bars/Rails
-
Color:
-
Drk green,black, orange, white,yellow
-
Using:
-
horse sheep, goat ,cattle ,cow fence

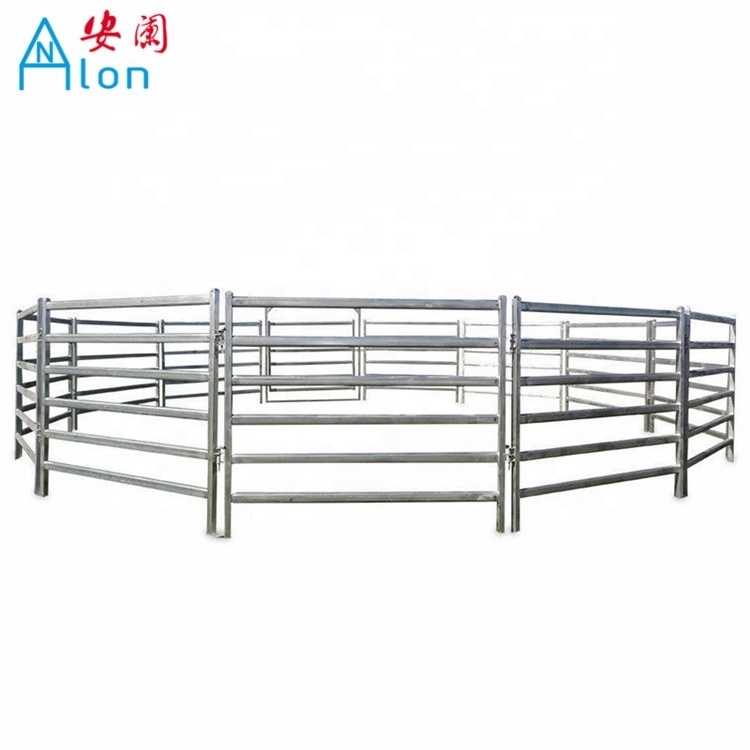

Welded cattle panels, Cattle panels Round yard
Product name: Cattle Panels
key words: steel tube fence panels/steel yard fence panel / pipe fencing for cattles/horses / live calves raising panel ect.
Features :It can be installed quickly and easily; We have many years export experience,so guarantee the good quality and have the competitive price.
Process: Firstly,we prepared the pipe(round pipe or the oval pipe,the square pipe),then put the pipe on the welded shaping machine,the pipes are galvanized,welded the pipe together,then make the spot smoothing,then silver painte
oval rails cattle panel:
Finish: HDG 15microns +
Height 1800mmx Length 2100mm
Vertical pipe:50 x 50mm RHS x 1.8 mm thick with fully welded caps
Horizontal rail: 40mmx80mmx 2.00thick x 6 rails bull bars( oval rails)
Fully welded post brackets
bull bars are fully welded, each weld is protected with epoxy paint
Cattle panel gate:
Height 2200 mm x Length 2000 mm
Frame: Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps
Cattle cate Horizontal rail: 40 mm x 80 mm x 2.00 mm thick x 6 rails bull bars
Finish: HDG 15-microns Fully welded oval pipes, post &brackets ,heavy duty hinges
|
Specification |
Normal size |
|
Height x Length |
1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on |
|
pole style |
Round pipe or square tube or oval tube |
|
Pole specification |
32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
|
Package details |
In steel pallet or in bulk |
Other type livestock panel
