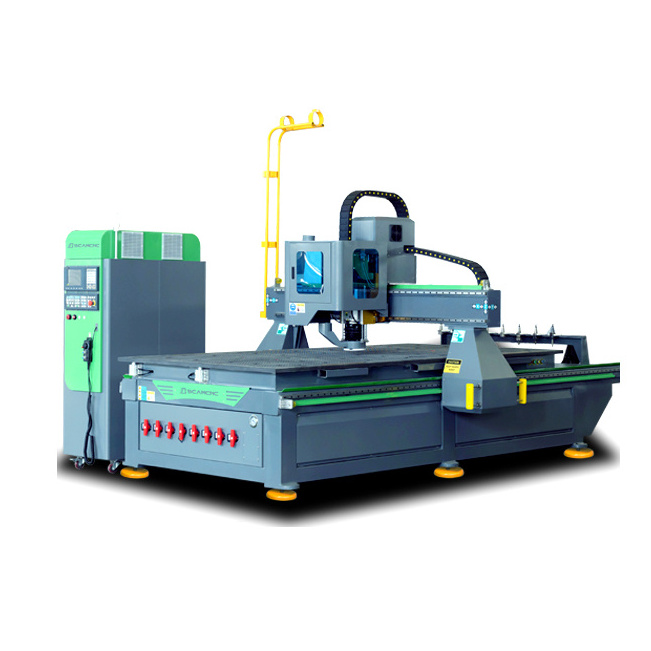

Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer

Top Selling ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer

FOB Reference Price: Get Latest Price
≥1 Sets
US $12600
≥5 Sets
US $8900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Positioning Accuracy (mm):
0.03 mm
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
9.6kw
Place of Origin:
Shandong, China
Brand Name:
BCAMCNC
Voltage:
415V/380V/220V/240V
Dimension(L*W*H):
3440mm*2300mm*2100mm
Power (kW):
28
Weight (KG):
1800
Product name:
CNC Wood Working Machine
Application:
Aluminium Wood MDF Plywood Plastic Foam Cutting
Control system:
Taiwan Syntec Control System
Spindle:
9kw ATC Spindle
Inverter:
Delta Inverter
Table Surface:
Vacuum Combined T-slot Table
After-sales Service Provided:
Online Support
Transmission:
Helical rack and pinion X and Y axis ; Z axis Taiwan TBI Ball Screw
Motor and driver:
Japan Yaskawa Sevor Motor
Tool magazine:
Linear Tool Magazine

Quick Details

Working Table Size(mm):
1300×2500
Machine Type:
Electrical Router
Range of Spindle Speed(r.p.m):
6000 - 24000 rpm
Positioning Accuracy (mm):
0.03 mm
Travel (X Axis)(mm):
1300 mm
Travel (Y Axis)(mm):
2500 mm
Repeatability (X/Y/Z) (mm):
0.02 mm
Spindle Motor Power(kW):
9.6kw
Place of Origin:
Shandong, China
Brand Name:
BCAMCNC
Voltage:
415V/380V/220V/240V
Dimension(L*W*H):
3440mm*2300mm*2100mm
Power (kW):
28
Weight (KG):
1800
Product name:
CNC Wood Working Machine
Application:
Aluminium Wood MDF Plywood Plastic Foam Cutting
Control system:
Taiwan Syntec Control System
Spindle:
9kw ATC Spindle
Inverter:
Delta Inverter
Table Surface:
Vacuum Combined T-slot Table
After-sales Service Provided:
Online Support
Transmission:
Helical rack and pinion X and Y axis ; Z axis Taiwan TBI Ball Screw
Motor and driver:
Japan Yaskawa Sevor Motor
Tool magazine:
Linear Tool Magazine
ATC Linear Woodworking Machine CNC Router 1325 with 10 Pieces automatic tool changer
Product Description
Linear Automatic tool changer cnc router machine
Automatic tool changer cnc machine can change tools automatically, which can improve work efficiency, so more efficient than manual tool changer cnc router machine.

Our standard Linear tool changer magainer is installed at the back of the atc cnc router machine, so spindle need to move the distance of Y axis to changer tools. More suitable for 1300*1300mm (4*4FT), 1300*2500mm (4*8FT), 1500*3000mm (5*10FT), 2100*3000mm (6.8*10FT), 2100*4000mm (6.8*13FT ).

If bigger size, we recommend you follow-up Linear tool magaizne And Carousel tool magazine, these two design can be moving with the gantry of cnc machine, so can change tools fatser. For example 2100*5000mm, 2100*6000mm, 2500*7500mm,.... Working area can be support customize service as you needs.
Specification
X-axis milling travel
1300mm
Y-axis milling travel
2500mm

Z-axis milling travel
200mm

(Optional: 200mm-600mm;more than 600mm, sinking table design is more stable )
Table Surface
Vacuum +T-solt table
Spindle Motor Power(kW)
Italian Air cooled spindle 9.6kw / Chinese HQD air cooled spindle 9.0kw
Spindle Speed
6000-24000RPM
Tool magazine
8 /10/12/14position Linear Tool Magazine
Tool holder
ISO 30 tool holder (Optional: HSK F63 tool holder)
X and Y axis transmission
Helical rack and pinion transmission
Z axis transmission
Taiwan TBI ball screw transmission
Max. Rapid Travel Rate
80m/min
Max. Working Speed
60m/min
Cutting thickness
According materials
Servo motor and Driver
Japan Yaskawa servo motor and driver on X, Y and Z axis
Control system
Taiwan Syntec Control System
Command Language
G code
Interface
USB
Inverter
Delta Inverter 11kw
Working voltage
380V, 50HZ, 3Phase (Optional: 415V, 220V)
Software Compatibility
Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc
Our Service
3 years guarantee of the whole machine and we give lifetime maintenance free of charge. *Free training to make sure you master the operating of machine at our factory. * 24 hours online services through Whatsapp, Skype, Email or on the phone. *Engineers available for overseas training and after-sale services. * Friendly English version manual and operation video CD disk
Related Products
Applications&Samples
Application
Application materails: Wood, Solid wood, Plywood, MDF, PVC, ACP, FOMA, EPS, Acrylic, Plastic, Aluminum sheet, Aluminum composite panles,...

Application industry: Advertising design and manufacturing industry, indoor/outdoor decoration companies, woodworking processing services, furniture production,...
Packing & Delivery
Packing Details
1. Standard plywood case/Plate, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. When importing, the plywood case is with fumigation-free, the procedure is simple. .
Delivery
Considering the size of cnc machine is big, so most of cnc router machine are shipped by sea, railway.
