Quick Details
-
Span:
-
7.5m~35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
10000 kg
-
Product Name:
-
single beam bridge crane
-
Lifting mechanism:
-
Wire rope electric hoist
-
Electrical parts:
-
Siemens brand contactors
-
Motors:
-
China top brand motors
-
Spare parts:
-
One year quick-wear parts for free
-
Duty class:
-
A3/A4
-
Power Source:
-
3 phase 380V 50hz or accord your requirements
-
Control model:
-
Pendant pushbutton control or remote control
-
Paint:
-
Yellow/red or according to client's demand
-
Material:
-
Q235 Steel
Quick Details
-
Max. Lifting Height:
-
25M, 15M, 6m, 20M, 30m
-
Rated Lifting Moment:
-
200KN
-
Max. Lifting Load:
-
20ton
-
Span:
-
7.5m~35m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pengda
-
Weight (KG):
-
10000 kg
-
Product Name:
-
single beam bridge crane
-
Lifting mechanism:
-
Wire rope electric hoist
-
Electrical parts:
-
Siemens brand contactors
-
Motors:
-
China top brand motors
-
Spare parts:
-
One year quick-wear parts for free
-
Duty class:
-
A3/A4
-
Power Source:
-
3 phase 380V 50hz or accord your requirements
-
Control model:
-
Pendant pushbutton control or remote control
-
Paint:
-
Yellow/red or according to client's demand
-
Material:
-
Q235 Steel

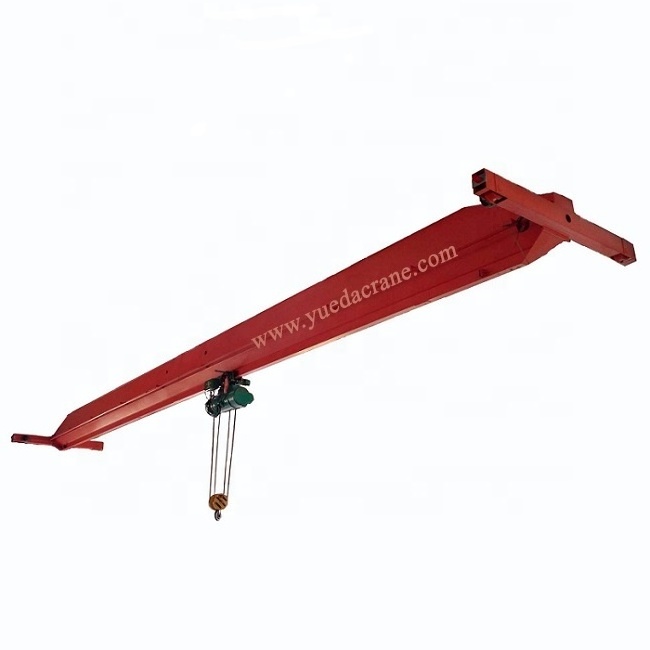

1ton-20ton single beam overhead crane with monorail hoist LD model overhead travelling single beam bridge crane:
1. LD model single beam overhead travelling bridge crane has one main beam only.
2. This overhead travelling bridge crane is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriage are made by U-section steel plate.
3. This overhead travelling bridge crane is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set, the electric hoist is travelling under crane beam.
4. This overhead travelling bridge crane is medium duty class overhead crane, the capacity from 1ton to 20 tons . The span from 7.5m to 35m, the duty grade is A3-A4. Working temperature within -20 to +42 centigrade.
5. This
overhead travelling bridge crane
is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
The general technical details of single beam overhead travelling bridge crane:
|
Capacity (t) |
1, 2, 3, 5, 10(8) |
16, 20 |
||||||||
|
Span (m) |
7.5~35 |
|||||||||
|
Crane travelling mechanism |
Travelling speed (m/min) |
20 |
30 |
45 |
60 |
20 |
30 |
45 |
60 |
|
|
Speed ratio |
58.78 |
39.38 |
26.36 |
19.37 |
58.78 |
39.38 |
26.36 |
19.37 |
||
|
Motor |
Model |
ZDY21-4 |
ZDR100-4 |
ZDY122-4 |
ZDY123-4 |
ZDRII2L1-4 |
||||
|
Power |
2x0.8kw |
2x1.5kw |
2x1.5kw |
2x2.2kw |
2x2.1kw |
|||||
|
Turning speed (r/min) |
1380 |
1380 |
||||||||
|
Lifting mechanism (electric hoist) & Cross travelling mechanism |
Hoist model |
CD 1 /MD 1 |
CD 1 /MD 1 /HC/HM |
|||||||
|
Lifting speed (m/min) |
8, 8/0.8; 7, 7/0.7 |
3.5, 3.5/0.35 |
||||||||
|
Lifting height (m) |
6, 9, 12, 18, 24, 30 |
9, 12, 18, 24, 30 |
||||||||
|
Travelling speed (m/min) |
10, 20, 30 |
10, 20, 30 |
||||||||
|
Motor |
Cone Squirrel-cage |
Cone Squirrel-cage |
||||||||
|
Duty Class |
A3-A4 |
|||||||||
|
Power source |
380V 50HZ 3 phase (or according to your standard) |
|||||||||
|
Wheel diameter |
φ 270mm |
φ 370mm, φ 400mm |
||||||||
|
Width of rail top |
37~70mm |
37~70mm |
||||||||
Ø Upward and downward limit switch for hook
Ø Low-voltage protection function
Ø Phase sequence protection function
Ø Overload protection
Ø Emergency stop protection
Ø Hook with latch
Ø Rubber buffers
If you want to order single beam overhead travelling bridge crane, Pls tell me the details as follows:
1. The Max. lifting capacity? (Ton)
2. The span of crane?(m)
3. The Max. lifting height? (m)
4. What type meterial will you to lift?
5.
The power source standard?(380V, 50Hz, 3phase or others).
6. The box frame main bea m of single beam overhead travelling bridge crane, the straight welds performed by automated robotics, the welder will perform welding on curved locations only, the welding type is carbon-dioxide arc welding :
7. The end carriages of single beam overhead travelling bridge crane, the crane wheels are finished heat treatment for long life, the noise of motors & speed reducers are very small :
8. The lifting mechanism(electric hoist) of s ingle beam overhead travelling bridge crane, the gear boxe have hardened and ground helical gears for high efficiency, quite operation and high reliability :
9. The main upward/downward limit switch & second upward limit switch of hoist:
10. The electrical control box & control handle, the electrical contactors are Siemens brand, the control handle has on/off & emergency stop buttons:
11. The packing, transport & loading of s ingle beam overhead crane:
