Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine
Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine

Galvanized Metal Water Downspout Gutter Making Machine Downspout and Portable Gutter Roll Forming Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rolling thinckness:
0.3-0.8 mm
Place of Origin:
Jiangsu, China
Brand Name:
CJ
Voltage:
480V/CUSTOM
Dimension(L*W*H):
Around 18m*2.2m*1.5m
Weight:
3500 kg
Feeding width:
900-1250mm
Video outgoing-inspection:
custom
Marketing Type:
Other
Product name:
Downspout and Portable Gutter Roll Forming Machine
Forming speed:
0-15m/min
Machin sturcture:
roof/wall panel/Ridge Cap
Diameter of shaft:
70mm solid shaft
Main power:
5.5kw

Quick Details

Type:
Gutter Roll Forming Machine
Tile Type:
galvanized steel or PPGI
Production Capacity:
0-15m/min
Rolling thinckness:
0.3-0.8 mm
Place of Origin:
Jiangsu, China
Brand Name:
CJ
Voltage:
480V/CUSTOM
Dimension(L*W*H):
Around 18m*2.2m*1.5m
Weight:
3500 kg
Feeding width:
900-1250mm
Video outgoing-inspection:
custom
Marketing Type:
Other
Product name:
Downspout and Portable Gutter Roll Forming Machine
Forming speed:
0-15m/min
Machin sturcture:
roof/wall panel/Ridge Cap
Diameter of shaft:
70mm solid shaft
Main power:
5.5kw
Product Description

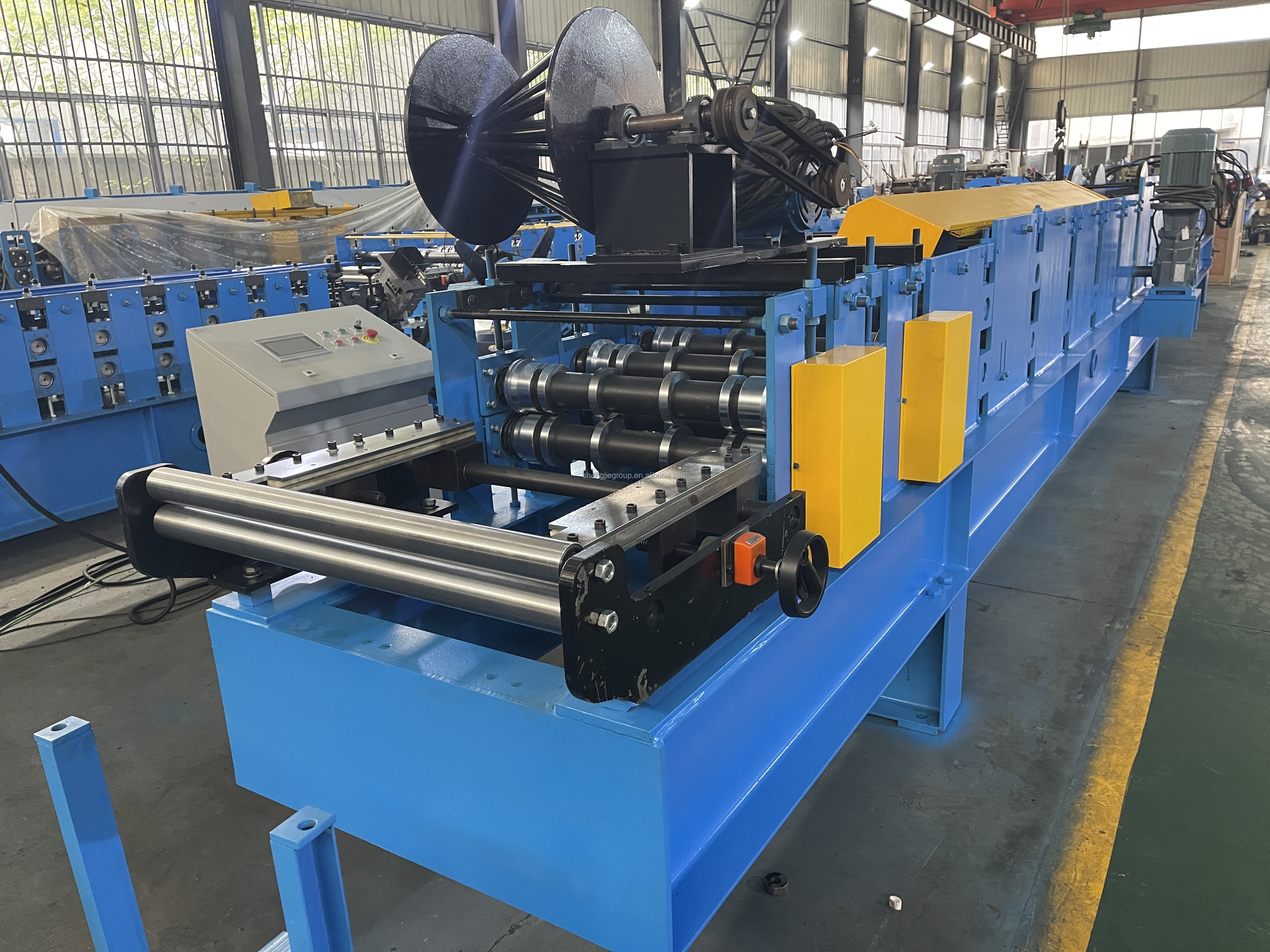

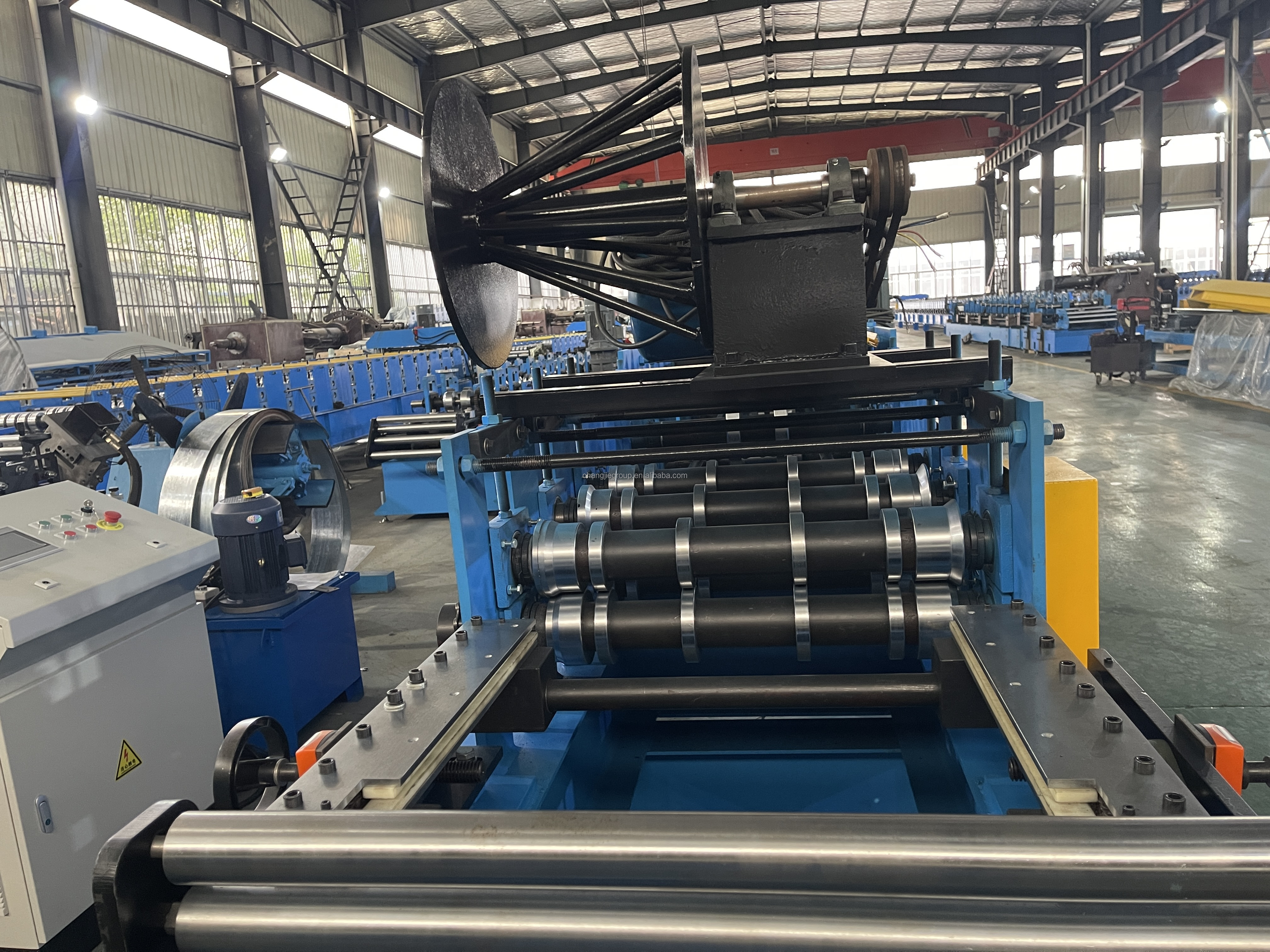

Downspout Pipe Roll Forming Machine
This type machine is a color-coated steel plate that is cold-rolled into various wave-shaped pressed plates. It is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decoration of large-span steel structures.
It has the characteristics of light weight, high strength, rich color, convenient and quick construction, anti-seismic, fireproof, rainproof, long life and maintenance-free. It has been widely used.
Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time, it also meet problem: bottom layer broken somewhere, need take up layer out to repair bottom layer.

Item NO.
Item Name
Description
Raw material
Galvanized steel or PPGI
1
Material thickness
0.4-0.6mm
2
Forming speed
0-15m/min
3
Roll station
15 stations
4
Main power
5.5kw
5
Hydraulic power
4kw
6
Control system
PLC Panasonic
7
Drive
by chain
8
Voltage
380V/50HZ, 3P or Customized
9
Roller Material
45# forge steel surface with chrome
10
Material Of Cutting
Cr12, 58-62 HRC hardness
Material specifications:
Next generation ZINCALUME® aluminium/zinc/ magnesium alloy coated steel complies with AS1397:2011 G550,
AM125 (550 MPa minimum yield stress, 125 g/m2 minimum coating mass)

Colorbond® is prepainted steel for exterior roofing and walling. It is the most widely used. The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/zinc alloy-coated steel complying with AS 1397:2011. Minimum yield strengths are G550 (550MPa). Minimum coating mass is AM100 (100g/m2)

Colorbond® METALLIC is prepainted steel for superior aesthetic qualities displaying a metallic sheen.

Colorbond® ULTRA is prepainted steel for severe coastal or industrial environments (generally within about 100-200 metres of the source). The painting complies with AS/NZS 2728:2013 and the steel base is an aluminium/ zinc alloy-coated steel complying with AS1397:2011. Minimum coating mass is AM150 (150g/m2)

Colorbond® Stainless is a pre-painted steel and is used for severe and coastal environments. The painting complies with AS/NZS 2728:2013 and the steel base is a stainless steel complying with AISI/ASTM Type 430; UNS No. S43000.
The base metal thickness is 0.48mm.
