Quick Details
-
Dimension (L x W x H):
-
Customized
-
Warranty:
-
1YEARS
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
perft
-
Product Name:
-

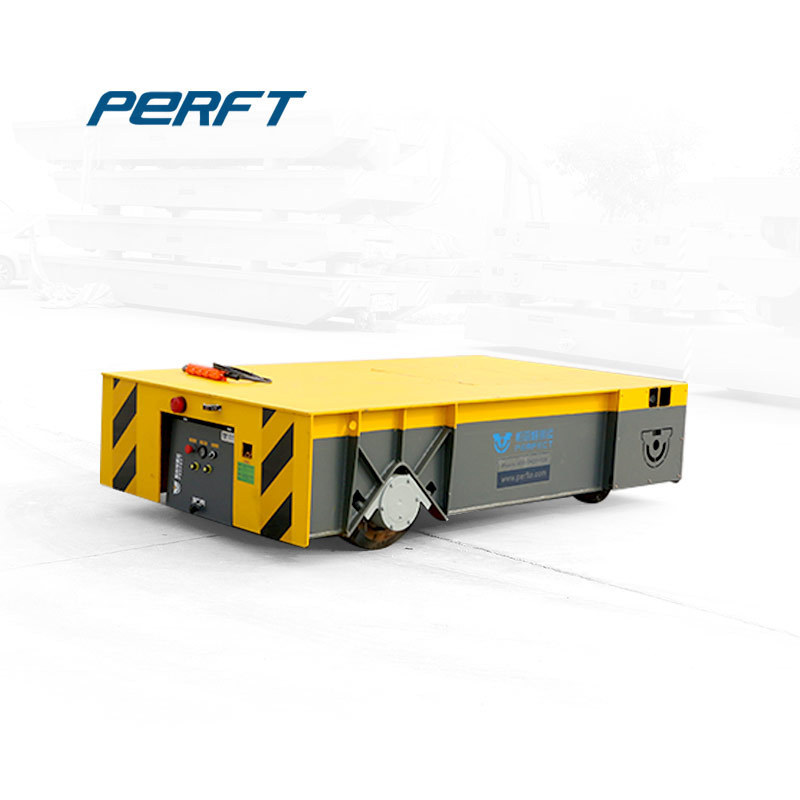

Heavy Duty Transport Motorized Carts Electric Flat Bed Trolley
-
Power Source:
-
Conductor Rail
-
Control Mode:
-
Remote Control/Pendant
-
Running Speed:
-
0-30m/min (Adjustable)
-
Dimension:
-
4000*2200*600/Customized
-
Color:
-
Yellow/Customized
-
Special Features:
-
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
-
Packing Material:
-
Tarp & Wooden Case
-
Safety Device:
-
Warning Light,Buffer,Limit Switch,Guard Railing
-
Load capacity:
-
0-300T
Quick Details
-
Usage:
-
Storage, Industrial, handling, logostic and forwarder, transportation
-
Material:
-
Stainless steel
-
Wheel:
-
Four-wheel
-
Dimension (L x W x H):
-
Customized
-
Warranty:
-
1YEARS
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
perft
-
Product Name:
-
Heavy Duty Transport Motorized Carts Electric Flat Bed Trolley
-
Power Source:
-
Conductor Rail
-
Control Mode:
-
Remote Control/Pendant
-
Running Speed:
-
0-30m/min (Adjustable)
-
Dimension:
-
4000*2200*600/Customized
-
Color:
-
Yellow/Customized
-
Special Features:
-
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
-
Packing Material:
-
Tarp & Wooden Case
-
Safety Device:
-
Warning Light,Buffer,Limit Switch,Guard Railing
-
Load capacity:
-
0-300T
The trackless transfer car consists of power supply system, transmission system, steel structure main frame, steering system, traveling mechanism, control system and fault diagnosis system. Usually, we choose batteries as the power supply for this series of cart. The power supply supplies power to the traction motor through the electrical control module system.To realize the start, stop, forward, backward, steering and other functions of the trackless transfer cart.
Advantages:
The trackless transfer car t have the advantages of simple operation, large starting torque, smooth running, silent steering, etc. Besides, they also have the unique advantages brought by their structure, namely, they are not restricted by tracks, can freely steer left and right in flat fields, and are convenient to use.
The Parameter of the transfer cart :
|
Model |
BWP-2T |
BWP-10T |
BWP-20T |
BWP-30T |
BWP-50T |
BWP-63T |
BWP-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table size |
length(L) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width(W) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height(H) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel Base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel Diameter(mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground Clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor Power (Kw) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery Capacity(Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery Voltage(V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Running Time When Full Load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running Distance for one Charge(Km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Max Wheel Load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|
The process of the battery powered transfer cart :
Our Advantages :
- Load capacity,table size and rail gauge can be customized on request.
- Power supply mode: Battery powered,cable powered,low voltage rail powered,busbar powered.
- Options: Warning light,radar detector,remote controller, electrical parts.
- Run on rail or floor.
- 2 years warranty.
- After-sale service provided ,engineer available overseas.
Before-sale
Communicate directly at any reply to the message within 12 hours.
Personalized service and customized solutions.
Customer visit with warm reception
Flexible payment methods
After-sale
12 months warranty for the whole machine.
Technical support by phone ,emai or WhatsApp/Skype around the clock.
Friendly English version manual and operation video.
Engineer available to service machinery overseas.
Within warrantly time ,support you repair technology or replace relevant parts.
After the warrantly time ,absolute discounted price for replcaement parts.
1. Q: How to operate the transfer cart?
A: It’s equipped with a remote controller that is used by the operator to control the transfer car movement .
2. Q: How do you guarantee the quality of the products?
A: The cart will be tested before delivery,also we got the CE SGS SASO certificates. Don’t worry,We supply after-sale service worldwide.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: Can we choose the power supply for industry transport car weighing 42 tons?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
If you are interested in our prodcut please feel free to contact us
