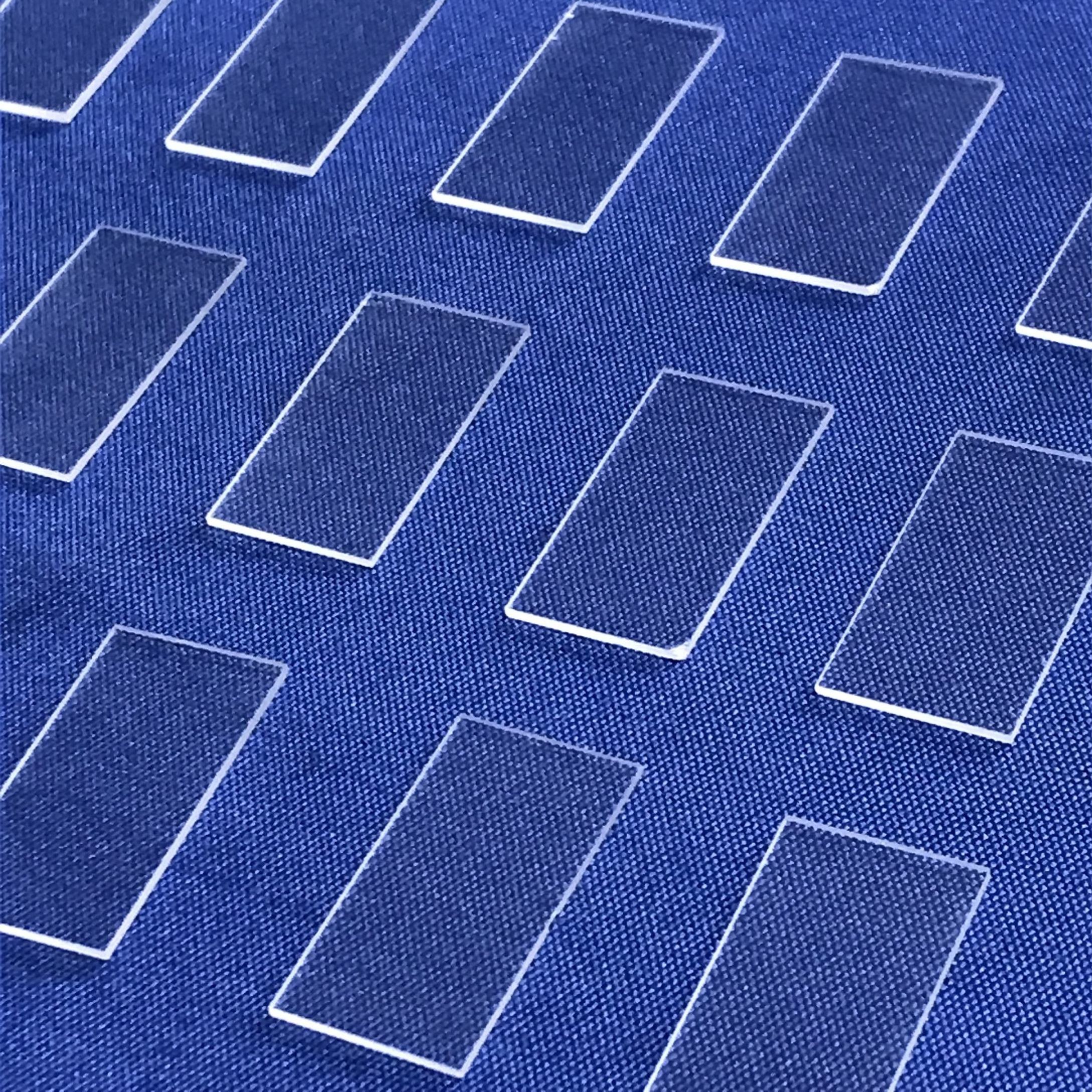

HUOYUN manufacture factory customized heat resistant fused silica quartz glass plate quartz glass plates

HUOYUN manufacture factory customized heat resistant fused silica quartz glass plate quartz glass plates

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: HUOYUN

Model Number:: CLEAR QUARTZ PLATES

Material:: 99.99% Pure Quartz

Density:: 2.2g/cm3

Color:: Clear Transparent

Size:: Custom Sizes

Feature:: High Temperature High Pressure Resistant

Work Temperature:: 1100

Soften Temperature:: 1730

Edges Treatment:: Fine Polished Edge

Surface Treatment:: Dull Polished/fine polished

Surface Quality:: 60/40

Quick Details

Type:: Clear Quartz Plate

Application:: chemical/semi/lab/UV

Thickness:: 0.5-100MM

Place of Origin:: Jiangsu, China

Brand Name:: HUOYUN

Model Number:: CLEAR QUARTZ PLATES

Material:: 99.99% Pure Quartz

Density:: 2.2g/cm3

Color:: Clear Transparent

Size:: Custom Sizes

Feature:: High Temperature High Pressure Resistant

Work Temperature:: 1100

Soften Temperature:: 1730

Edges Treatment:: Fine Polished Edge

Surface Treatment:: Dull Polished/fine polished

Surface Quality:: 60/40

Products Description

Product Details:

1.SiO2> 99.99% ,high purity quartz rod.

2.Operating Temperature: 1250℃ SoftenTemperature: 1730℃.

3.Excellent visual and chemical performance.

4. without surface coating and infectant.

5. Health care and environmental protection.

6. Any dimension can be made.

Quartz glass sheets are usually colorless and transparent, with a visible light transmittance of more than 85%. Features: heat resistance,acid and alkali resistance， light transmittance, electrical insulation, and chemical stability.

For example, in terms of optical properties, it can not only transmit far ultraviolet light, which is the best of all ultraviolet transparent materials, but also can transmit visible light and near-infrared spectrum. Because quartz glass is resistant to high temperatures, has a very small thermal expansion coefficient, and has good chemical stability. Its bubbles, streaks, uniformity, and birefringence are comparable to those of ordinary optical glass. Therefore, it can work in various harsh situations and has a high stability of optical coefficients. Essential optical materials.

Specification

Circular	Diameter：3mm——500mm Thickness：0.2mm——100mm
Circular	Diameter：3mm——500mm Thickness：0.2mm——100mm
Rectangle type	Length：5mm——2000mm Width：5mm——800mm Thickness：0.2mm——100mm


Sio2	99.99%
Density	2.2g/cm³
Hardness	570KHN100
Specific heat(20℃)	660J/kg℃
Thermal conductivity (20℃)	1.4W/m℃
Working temperature	1100℃
Annealing point	1215℃
Softening point	1730℃
Ligth Transmittance	＞92％（1000 times than ordinary glass）

Warm Tip

Packing and delivery

Packing: 1. Inner layer: bubble paper. Plastic air cushion film. Foam material 2. Outer layer: Transport cartons, wooden cases or according to customer's requirements. Delivery: It depends on your requirements.

Here is our recommendation: For small orders, we recommend choosing DHL, FedEx, UPS or TNT as they are fast and secure. If the order quantity is large, we recommend shipping by sea as it is more cost-effective. Of course, air transport is also supported

Certifications

Company Introduction

Production details

company instruction

Lianyungang Huoyun Quartz company is one of the leading high quality quartz glass manufacturer and supplier in China.

Factory’s main products are: quartz tube;quartz plate; quartz rod; quartz glass flask; quartz glass beaker; quartz glass condenser; quartz glass crucible and other customized quartz products. The factory has advanced equipment, strong technical force, complete measurement and detection means, complete quality assurance system, to provide you with high-quality, high-standard products .We always try our best to meet the various needs of users.

Huoyun Quartz has always been a defining force in the sale and fabrication of quartz glass within the semi-conductor, chemical, solar Energy and precise ceramics within semi-conductor, solar energy, textile, electronic.Providing high quality products and services to our customers is one of our most important tasks.
