Quick Details
-
Input:
-
HD/SD-SDI (BNC), HD MI (HDCP Support), CVBS (BNC)
-
Output:
-
RJ45 x 2
-
Video encoding:
-
H.264/MPEG4-AVC
-
Audio encoding:
-
AAC, MP2
-
Protocol:
-
RTMP, HTTP, UDP, RTP
-
Maximum Video:
-
1920x1080P30, 1280x720P60
-
Bit rate mode:
-
CBR/VBR
-
Audio Bit rate:
-
30Kbps ~ 384Kbps
-
Power supply:
-
AC 110V~220V 50/60Hz
-
Nature:
-
HD/SDI H.264 Network Media IPTV Encoder
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPNE9000
-
Input:
-
HD/SD-SDI (BNC), HD MI (HDCP Support), CVBS (BNC)
-
Output:
-
RJ45 x 2
-
Video encoding:
-
H.264/MPEG4-AVC
-
Audio encoding:
-
AAC, MP2
-
Protocol:
-
RTMP, HTTP, UDP, RTP
-
Maximum Video:
-
1920x1080P30, 1280x720P60
-
Bit rate mode:
-
CBR/VBR
-
Audio Bit rate:
-
30Kbps ~ 384Kbps
-
Power supply:
-
AC 110V~220V 50/60Hz
-
Nature:
-
HD/SDI H.264 Network Media IPTV Encoder

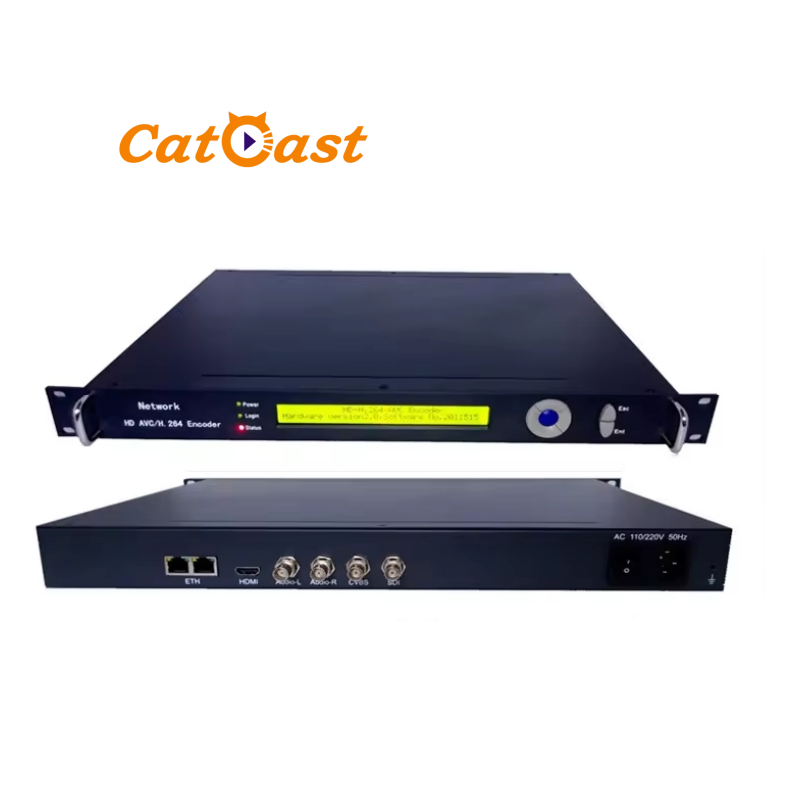

HPNE9000 is a portable Network Live Encoder with H.264/AVC Video encoding and MPEG-4 AAC audio encoding. High video and audio quality at very low bit rate even 1080P25 video can be compressed to 1Mbps. Using low delay compress technology,even 1080P25 video compressing delay little than 300ms. HPNE9000 has many versatile streaming protocol, RTMP, RTSP/RTP, HTTP, UDP,RTP etc. Customers could watch the live video by PC web, iPad, iPhone, Android,or IP set-top box etc. It can be widely used for cross-border point-to-point transmission, emergency video,Network live video (IPTV) broadcast, mobile video, remote conference, hotel VOD, campus radio broadcast, hospital expert consultation,etc
|
Input
|
Video
|
HD/SD-SDI (BNC)
|
|
|
||
|
|
|
HDMI (HDCP Support)
|
|
|
||
|
|
|
CVBS (BNC)
|
|
|
||
|
|
|
Support 720x480i/p 720x576i/p 1280x720p 1920x1080i/p
|
|
|
||
|
|
Audio
|
HD/SD-SDI (BNC)
|
|
|
||
|
|
|
HDMI
|
|
|
||
|
|
|
Analog R-L (BNC)
|
|
|
||
|
Video Encoding
|
Maximum Video
|
1920x1080P30 1280x720P60
|
|
|
||
|
|
Pre-process
|
De-interlace, noise filter
|
|
|
||
|
|
Compress STD
|
H.264/MPEG4-AVC
|
|
|
||
|
|
Compress performance
|
1080P25@1Mbps
|
|
|
||
|
|
Encoding Delay
|
Less than 300ms
|
|
|
||
|
|
Definition
|
352x288 ~ 1920x1080 Adjustable
|
|
|
||
|
|
Frame Rate
|
8Hz – 60Hz Adjustable
|
|
|
||
|
|
H.264 Profile
|
High Profile, Main Profile, Baseline Adjustable
|
|
|
||
|
|
H.264 Level
|
Level 1.0 – 4.1 Adjustable
|
|
|
||
|
|
Bit rate
|
100kbps ~ 20Mbps Adjustable
|
|
|
||
|
|
Bit rate mode
|
CBR/VBR
|
|
|
||
|
|
GOP Structure
|
I IP IBP IBBP IBBBP
|
|
|
||
|
|
GOP Length
|
Adjustable
|
|
|
||
|
Audio Encoding
|
Sample length
|
24 bit
|
|
|
||
|
|
Sample Rate
|
32KHz 44.1KHz 48KHz
|
|
|
||
|
|
Track
|
Stereo Mono-L Mono-R
|
|
|
||
|
|
Compress STD
|
AAC MP2
|
|
|
||
|
|
Bit rate
|
30Kbps ~ 384Kbps
|
|
|
||
|
Output
|
Interface
|
RJ45 x 2 10/100Mbps with switch ability
|
|
|
||
|
|
Stream Protocol
|
TS Over UDP
|
|
|
||
|
|
|
TS Over RTP
|
|
|
||
|
|
|
TS Over HTTP
|
|
|
||
|
|
|
FLV Over RTMP
|
|
|
||
|
|
|
RTSP/RTP
|
|
|
||
|
|
|
RTMP
|
|
|
||
|
Management
|
Equipment
|
7Keys + LCD indicator
|
|
|
||
|
|
Network
|
embedded WEB configuration
|
|
|
||
|
General
|
Weight
|
3KG
|
|
|
||
|
|
Size
|
1U standard
|
|
|
||
|
|
Power
|
AC 110V~220V 50/60Hz
|
|
|
||
Catcast Technology Co.,Ltd
is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
