Quick Details
-
Function:
-
unmanaged Ethernet switches
-
High quality:
-
industrial-grade reliability
-
Certificate:
-
TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
-
Warranty:
-
Taiwan Factory 5 Years
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
MOXA
-
Model Number:
-
EDS-405A
-
Function:
-
unmanaged Ethernet switches
-
High quality:
-
industrial-grade reliability
-
Certificate:
-
TUV/SEMKO/CB/CE/ROHS/ISO9001 Approved Standard
-
Warranty:
-
Taiwan Factory 5 Years

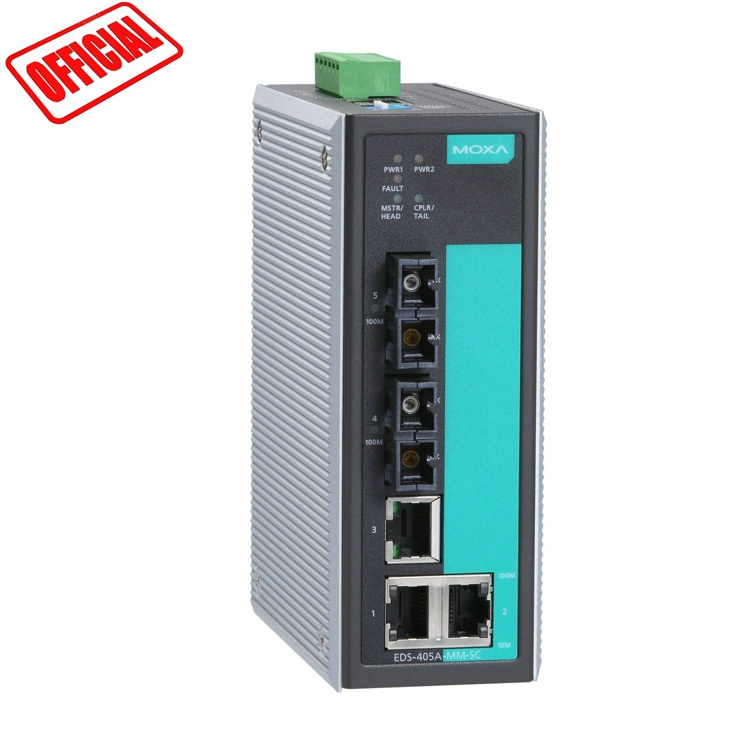

EDS-405A Series
5-port entry-le vel managed Ethernet switches
Layer 2 Managed Switches
Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
- IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
- Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
- PROFINET or EtherNet/IP enabled by default (PN or EIP models)
- Supports MXstudio for easy, visualized industrial network management
The EDS-405A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A switches.
Additional Features and Benefits
- DHCP Option 82 for IP address assignment with different policies
- Supports EtherNet/IP, Modbus TCP and PROFINET
- protocols for device management and monitoring
- EtherNet/IP EDS (Electronic Data Sheet) file, custom AOI (Add-On Instructions) and FactoryTalk® View faceplate available
- PROFINET GSDML file and SIMATIC STEP 7 device icons available
- Port mirroring for online debugging
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
- RMON for proactive and efficient network monitoring
- SNMPv1/v2c/v3 for different levels of network management security
- Bandwidth management to prevent unpredictable network status
|
10/100BaseTX
RJ45 Connector |
100BaseFX
Multi-Mode SC Connector |
100BaseFX
Multi-Mode ST Connector |
100BaseFX
Single-Mode SC Connector |
Operating Temp. | |
| EDS-405A | 5 | -10 to 60°C | |||
| EDS-405A-EIP | 5 | -10 to 60°C | |||
| EDS-405A-MM-SC | 3 | 2 | -10 to 60°C | ||
| EDS-405A-MM-ST | 3 | 2 | -10 to 60°C | ||
| EDS-405A-PN | 5 | -10 to 60°C | |||
| EDS-405A-SS-SC | 3 | 2 | -10 to 60°C | ||
| EDS-405A-EIP-T | 5 | -40 to 75°C | |||
| EDS-405A-MM-SC-T | 3 | 2 | -40 to 75°C | ||
| EDS-405A-MM-ST-T | 3 | 2 | -40 to 75°C | ||
| EDS-405A-PN-T | 5 | -40 to 75°C | |||
| EDS-405A-SS-SC-T | 3 | 2 | -40 to 75°C | ||
| EDS-405A-T | 5 | -40 to 75°C | |||
| EDS-405A-PTP | 5 | -10 to 60°C | |||
| EDS-405A-PTP-T | 5 | -40 to 75°C |
