- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YEJUVISION
-
Model Number:
-
ZK-BZH4023-4G
-
Warranty:
-
3 Years
-
Video Compression Format:
-
H.265/H.264
-
Product name:
-
Mobile Sentry
-
Camera Type:
-
Infrared network HD intelligent ball machine
-
The biggest pixel:
-
200w
-
Infrared distance:
-
100m
-
Car body color:
-
white
-
Height of lifting rod:
-
3.5 m
-
Universal wheel:
-
4
-
Battery type:
-
The lithium battery
-
Charging voltage:
-
AC 220V /50Hz
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, Low Power
-
Function:
-
Waterproof / Weatherproof, Vandal-proof
-
Customized support:
-
Online technical support, Customized logo, Software reengineering, OEM, ODM
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YEJUVISION
-
Model Number:
-
ZK-BZH4023-4G
-
Warranty:
-
3 Years
-
Video Compression Format:
-
H.265/H.264
-
Product name:
-
Mobile Sentry
-
Camera Type:
-
Infrared network HD intelligent ball machine
-
The biggest pixel:
-
200w
-
Infrared distance:
-
100m
-
Car body color:
-
white
-
Height of lifting rod:
-
3.5 m
-
Universal wheel:
-
4
-
Battery type:
-
The lithium battery
-
Charging voltage:
-
AC 220V /50Hz
Product Overview

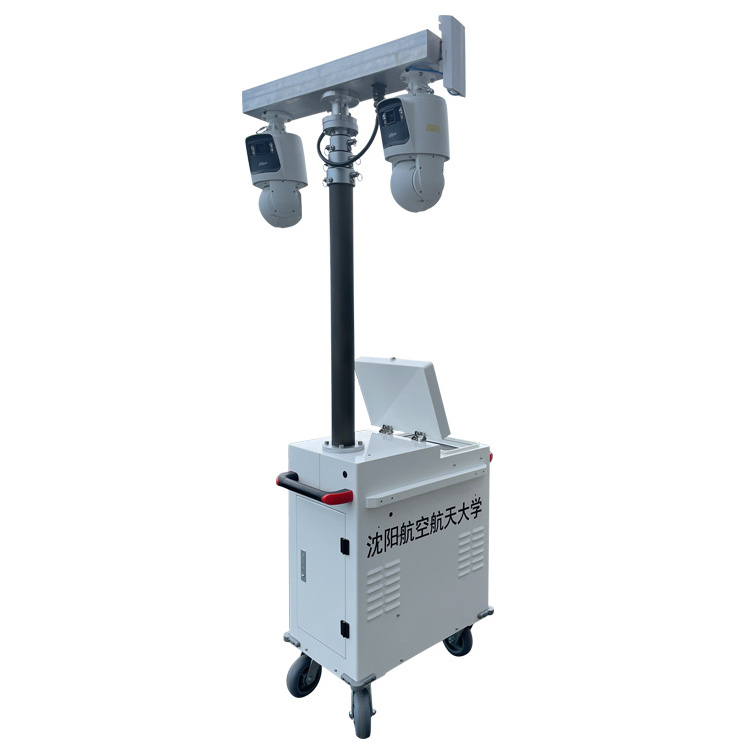

New Launched Solar Mobile Sentry Security Trailer Mobile Surveillance 5g+ai Drag-type Intelligent Monitoring Cctv Trailer
Product Introduction
This product is mainly composed of integrated high-performance GPU module, embedded deep learning algorithm, panoramic 360 all-round high-definitn camera, IPC access, lifting system, 4G transmission system, storage, management, control, intelligent analysis in one, to achieve face recognition, passenger flow control, behavior analysis, etc.
Easy to install, easy to operate integrated design, the body is flexible, with drag tires, easy to deploy and move; Integrated telescopic support, easy to fix; The monitoring rod body can be lifted, equipped with high-definition 360° rotating camera; Support wifi/3G/4G wireless network signal transmission; With open screen, convenient for local viewing; Built-in 1 set of battery, can run 24H (according to the battery size); Customized functions, support the expansion of methane detection, flow control, temperature and humidity monitoring, dust monitoring and other functions.
Product Features
:
●convenient monitor: the integration of structure design without disassembly, single person can be completed within 10 min set-up;
●
no net electric: bring network, electricity, scene for more;
●
good mobility: using small car body, flexible steering, mobile anytime and anywhere;
●
local view: with 16 "high brightness LED display, obtaining, debugging more convenient;
●
hd video monitoring: 360 ° rotating high-definition infrared cameras, shooting is not affected by fiber and weather;
●
eliminate the monitoring blind area: automatic lifting lever (up to 8 m), highly adjusted, and realizing a complete coverage of system is high and low;
●
more signal transmission: support WIFI, 3 g, 4 g, microwave and other network signal transmission;
●
last time: more energy power supply, battery power supply is given priority to, to support wind, solar, a charge, life more than 24 h.
●
good compatibility: seamless access to the monitoring center to support remote APP or PC to view;
●
the local data storage: 2 t storage drive, the local storage time of up to 90 days;
●
good scalability, easy to expand voice intercom, temperature and humidity monitoring, dust detection, data monitoring functions such as air pollution;
●
multiple security: according to the demand can increase the GPS positioning, anti-theft alarm, roll alarm, etc.;
●
cost-effective: without buried wiring, namely cast box, a system to support recycling, long-term use of comprehensive cost is lower;
●
support custom: in addition to the video monitoring, capable of carrying the AI function, realization of face recognition, traffic control, behavior analysis, etc.
Remote view the operation of front-end equipment
Product details
Pan-Tilt Specification
|
New Launched Solar Mobile Sentry Security Trailer Mobile Surveillance 5g+ai Drag-type Intelligent Monitoring Cctv Trailer
|
|
|
|
Camera parameters
|
|
|
|
Clarity of definition
|
1920×1080P
|
|
|
Frame rate
|
25/30 fps
|
|
|
Audio and video frequency compression
|
H.264/H.265
|
|
|
A multiple
|
23 times (2)
|
|
|
Speed of rotation
|
Horizontal preset speed
|
|
|
Horizontal Angle up and down
|
Left and right 360°, up and down +0° to -90°
|
|
|
Infrared distance
|
100 meters
|
|
|
Network interface
|
RJ45 10Base-T/100Base-TX PoE(IEEE802.3af)
|
|
|
Audio frequency mode
|
External active microphone or linear input, linear output
|
|
|
Network protocol
|
IPv4, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, TCP,UDP, IGMP, ICMP, ARP
|
|
|
Double code stream
|
support
|
|
|
Intelligent Analytics (optional)
|
General behavior analysis, helmet detection + pyrotechnic detection
|
|
|
Platform for docking
|
Support GB28181 protocol, support Haikang and other platforms
|
|
|
Compression format
|
G.711 Compression format at the rate of 8KB/s
|
|
|
Alarm output
|
2 way switch output, linkage sound and light alarm, oil off power off, etc
|
|
|
Wireless transmission
|
Support built-in 3G wireless transmission function, WCDMA, CDMA2000,TD-SCDMA compatible with GPRS, EDGE;
|
|
|
|
Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE
|
|
|
positioning
|
It supports built-in GPS/BD module and can report to the ministry standard platform
|
|
|
The hard disk
|
Large capacity 2.5-inch hard disks (up to 2 TB)
|
|
|
Standby time
|
200AH, 24 hours (according to customer requirements)
|
|
|
The power supply
|
Supports mains input
|
|
|
Solar energy
|
Be extensible
|
|
|
Height of lifting rod
|
3.5m (customized according to customer requirements)
|
|
|
Resistance to wind
|
Level 8 wind works normally Level 12 wind does not damage
|
|
|
Low temperature operation
|
-25°
|
|
|
High temperature operation
|
65°
|
|
|
humidity
|
Less than 90% (temperature 25°)
|
|
|
In the rain
|
The intensity was 6mm/min and the duration was 1h
|
|
|
Security
|
Any height self - locking without growing high phenomenon
|
|
