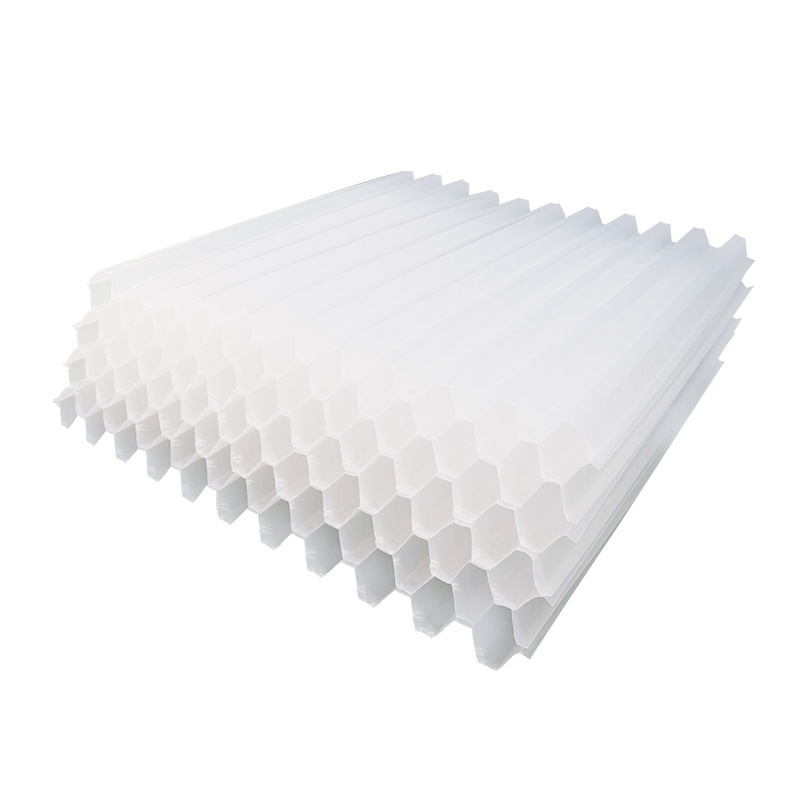

Hexagonal PVC/PP tube settler media, 35mm 50mm bore size lamella clarifier for water treatment

PP lamella clarifier or tube settler features:

1.Large wetted perimeter, small hydraulic radius
2.Good laminar flow conditions, particle deposition is out of turbulent flow interference
3.When the oblique tube length is 1 meter, the effective payload is designed to meet 3-5t/m2,, Vo is controlled within 2.5-3.0mm/seconds, then it has the best water quality
4.After applied tube settler in water intake, when its length is 2.0-3.0meters, it can work effectively in high turbidity tank of 50-100kilogram/m3 sediment concentration.
5.After applied tube settler in sedimentation tank, its water treatment capacity is 3-5 times of advection sedimentation tank and 2-3 times of the accelerating clarification tank and pulse clarification tank.

25mm bore parameters:                                                                                80mm bore paramets

Tube settler produced by our company uses PP, PVC and FRP as its raw material. It was hot-drawn into a hexagonal tube shape by infrared thermal machine and then welded into the using shape with patented technology and high frequency.
Our inclined tube settler can be applied to many kinds of precipitation and sand removing. In decades, it is the most mature water treatment device that widely used in drainage projects. With the advantages of wide application range, high treatment efficiency and small occupation area, it can be used in water inlet degritting, industrial and living water sedimentation, sewage sedimentation, grease and tailing enrichment processing...and so on. It not only can be applied to new construction project but also the transformation of existing old tank and you can achieve astounding economic benefit in both occasions.

Tube settlers can increase the settling capacity of circular clarifiers and rectangular sedimentation basins by reducing the vertical distance. Floc particles would settle down before agglomerating to form larger particles.The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other to form an increased effective settling area, which provide a particle settling depth that is significantly less than the settling depth of a conventional clarifier, and thus can reduce settling times. Tube settlers would capture the fine floc escaping from the clarification zone beneath the tube settlers and allow the larger floc to travel to the tank bottom. The settler's channel collects solids into a compact mass which promotes the solids to slide down the tube Channel.
