Quick Details
-
Row Distance(mm):
-
350 - 1000 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DB
-
Dimension(L*W*H):
-
2200*850*1200mm
-
Weight:
-
240 KG, 268kg
-
Marketing Type:
-
Hot Product 2022
-
Line spacing:
-
>35cm
-
Working width:
-
25cm
-
warranty:
-
1 year
-
Product name:
-
Corn Harvester Machine
-
Function:
-
Corn harvest
-
Power:
-
9.2KW
-
Power Type:
-
Diesel
-
Engine:
-
Diessel Engine
-
Speed:
-
0.3m/s
Quick Details
-
Number of Rows:
-
1
-
Working Width(mm):
-
250 mm
-
Tractor Power(HP):
-
12 - 100 HP
-
Row Distance(mm):
-
350 - 1000 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DB
-
Dimension(L*W*H):
-
2200*850*1200mm
-
Weight:
-
240 KG, 268kg
-
Marketing Type:
-
Hot Product 2022
-
Line spacing:
-
>35cm
-
Working width:
-
25cm
-
warranty:
-
1 year
-
Product name:
-
Corn Harvester Machine
-
Function:
-
Corn harvest
-
Power:
-
9.2KW
-
Power Type:
-
Diesel
-
Engine:
-
Diessel Engine
-
Speed:
-
0.3m/s
Product Description

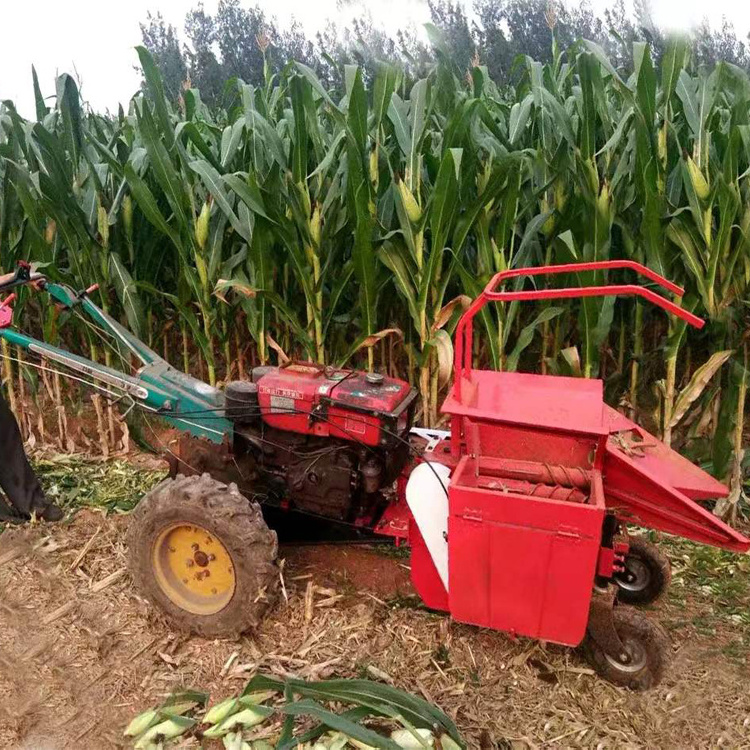

Complete the corn ear picking and straw crushing functions one row at a time. Equipped with a collection bucket that can be removed when the filling bag is full, the height of the stubble can be adjusted, the real clutch of the upgraded gearbox is safe to work, and the turning radius is small and easy to operate. After the machine harvests the corn, the stalks are directly crushed, but the peeling is not clean, the corn row spacing is greater than 40cm, and the ear height is greater than 65cm, it can be harvested.
|
Project
|
|
Corn harvester
|
|
|
|
||||
|
Name
|
|
188 gasoline belt
|
188 diesel-electric starter direct connection
|
192 Diesel electric starter direct connection
|
Hand-walking
|
||||
|
Model
|
|
DB-1
|
DB-2
|
DB-3
|
DB-4
|
||||
|
Structure type
|
|
Hand-held four-wheel self-propelled
|
Hand-held four-wheel self-propelled
|
Hand-held four-wheel self-propelled
|
Hand-held four-wheel self-propelled
|
||||
|
Engine
|
|
188F gasoline engine
|
188F diesel engine
|
192F diesel engine
|
101 or 151 handheld
|
||||
|
Rated power
|
|
6.8KW
|
7.5KW
|
9.2KW
|
|
||||
|
Dimensions (mm)
|
|
1820*800*1190
|
2200*850*1200
|
2200*850*1200
|
|
||||
|
Weight（kg)
|
|
162
|
220
|
240
|
110
|
||||
|
Transfer method
|
|
Belt drive
|
gear drive
|
gear drive
|
gear drive
|
||||
|
Handle adjustment
|
Horizontal
|
Adjustable 360°
|
Not adjustable 180°
|
Adjustable 180°
|
|
||||
|
|
Vertical
|
Adjustable 30°
|
Adjustable 30°
|
Adjustable 30°
|
|
||||
|
Main clutch type
|
|
Tensioner
|
Wet
|
Wet
|
Tensioner
|
||||
|
Rows
|
|
1
|
1
|
1
|
1
|
||||
|
Completeness rate
|
|
≥95
|
≥95
|
≥95
|
≥95
|
||||
|
Operating speed
|
|
≥0.3m/s
|
≥0.3m/s
|
≥0.3m/s
|
≥0.3m/s
|
||||
|
Knives
|
|
Twelve knives
|
Twelve knives
|
Twelve knives
|
Twelve knives
|
||||
|
Tire
|
|
400-8 Solid tire
|
400-8 Solid tire
|
400-8 Solid tire
|
|
||||
Advantages
1: The model is small and adaptable, and it is widely used in hilly and mountainous areas and other scattered plots that cannot be passed by large corn harvesters (mountains, slopes, high ridges, etc., need to add 150 yuan to replace them with large tires)
2: Complete functions, almost the same function as the large corn harvester.
3: Supporting power, delivery of the whole machine.
4: Convenient installation and disassembly, truly multi-purpose for one vehicle.
5: Flexible operation, adjustable stubble height, small turning radius.
