Quick Details
-
Brand Name:
-
MEETCERA
-
Density:
-
>3.1g/cm3
-
Water Absorption:
-
0
-
Vickers Hardness:
-
24
-
Flexural Strength:
-
480
-
Compressive strength:
-
3200
-
Thermal Conductivity:
-
150
-
Theramal Shock Resistance:
-
300
-
Max use temperature:
-
1600
-
Surface Treatment:
-
Full Body Tiles
-
Color:
-
Black
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
MC001
-
Brand Name:
-
MEETCERA
-
Density:
-
>3.1g/cm3
-
Water Absorption:
-
0
-
Vickers Hardness:
-
24
-
Flexural Strength:
-
480
-
Compressive strength:
-
3200
-
Thermal Conductivity:
-
150
-
Theramal Shock Resistance:
-
300
-
Max use temperature:
-
1600
-
Surface Treatment:
-
Full Body Tiles
-
Color:
-
Black

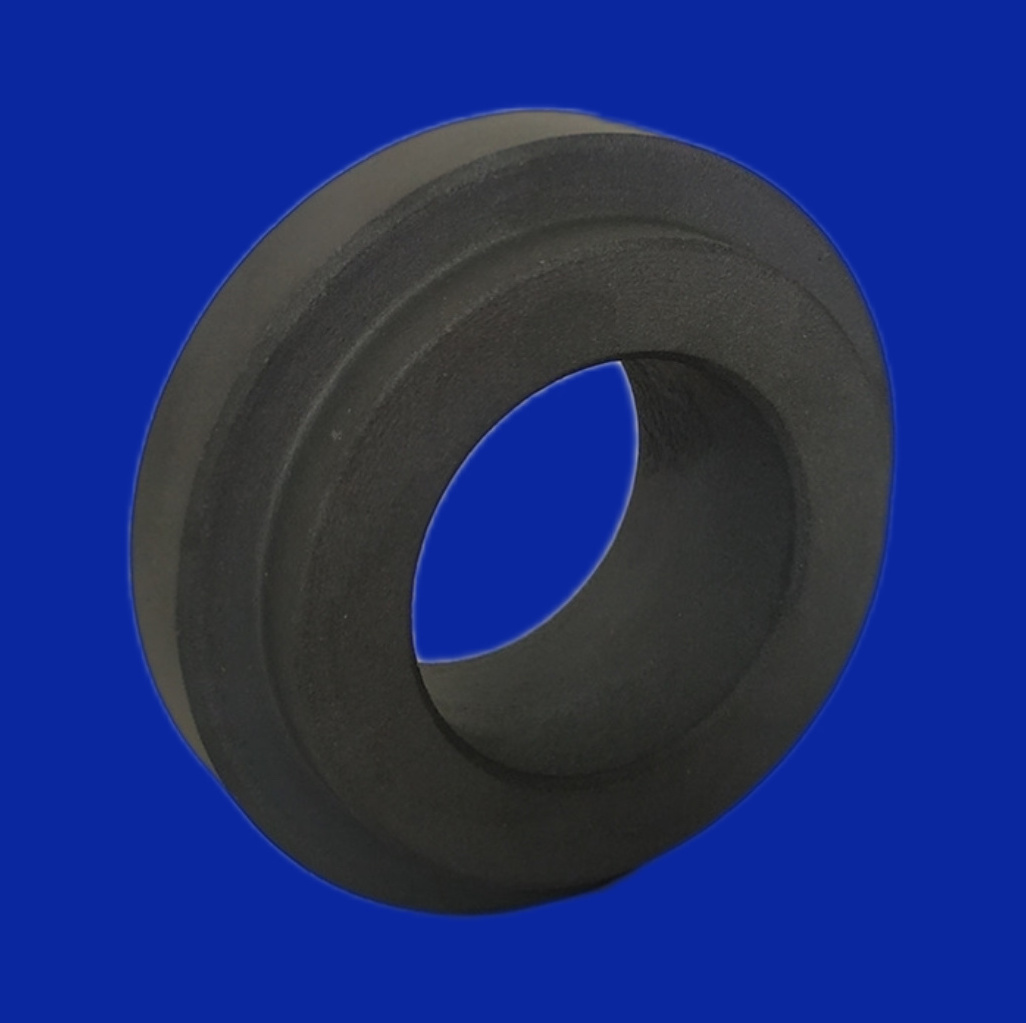

Silicon Carbide Ceramic
Sintered silicon carbide(SSIC)ceramic is a new kind of ceramic material, with low density,high strength,high hardness,high
temperature resitance oxidation resistance,corrosion resistance and other excellent performances. Now it's the preferred generalmaterial for mechanical seals,sand jets as well as magnetic pumps,shielding pump component,etc. We produce sintered siliconcarbide ceramics taking high purity sub-micron silicon carbide powder as raw material,according to the advanced formula importedfrom japan,through the spray granulation pressure molding and high temperature vacuum sintering.
temperature resitance oxidation resistance,corrosion resistance and other excellent performances. Now it's the preferred generalmaterial for mechanical seals,sand jets as well as magnetic pumps,shielding pump component,etc. We produce sintered siliconcarbide ceramics taking high purity sub-micron silicon carbide powder as raw material,according to the advanced formula importedfrom japan,through the spray granulation pressure molding and high temperature vacuum sintering.
|
Indicators
|
Atmospheric Sintering
SIC (SSIC)
|
Reaction burning
SIC (RBSIC)
|
|
Purity (%) (SIC content)
|
>97
|
≥90
|
|
Hardness (HRA)
|
>92
|
>90
|
|
Density (g/m3)
|
>3.1
|
>3.05
|
|
Elasticity modulus (MPA)
|
40
|
41.2
|
|
Tensile strength (MPA)
|
290
|
275
|
|
Bending strength (MPA)
|
500
|
430
|
|
Compressive strength (MPA)
|
3850
|
3000
|
|
Thermal conductivity (cal / cm.s. ℃)
|
0.38
|
0.30
|
|
Coefficient of thermal expansion (1/℃)
|
4×10-6
|
4.3×10-6
|
|
Heat-resistant temperature (the atmosphere)
|
1300℃
|
1650℃
|
|
Acid-resistant properties
|
Apply to any strong acid
|
Five times higher than hardness alloy
|
|
Ratio
|
0.14
|
/
|
Silicon Carbide Ceramic Advantage
1.silicon carbide is lightweight, dense, almost as hard as diamond, resistant to wear.
2.High mechanical strength:
The bending strength is four times that of recrystallized silicon carbide, twice that of nitride bonded silicon carbide, and 50%higher than that of reaction bonded silicon carbide.
3.Excellent thermal shock resistance:
Due to the excellent thermal conductivity, consistently low thermal expansion coefficient and minimizing internal temperaturegradient, SiC has excellent thermal shock resistance and can be more adaptable to the rapid heat cycling than other materials.
4.Super high temperature stability:
SiC hardly change with temperature, from close to absolute zero up to 1700℃ even under load, that is not suitable for othermaterials.
5.Excellent oxidation resistance:
sintered SiC is more stable in long term applications because it is more oxidation resistant for its high purity and high
density.A protective layer of SiO2 is formed on the surface of SiC which slows the oxidation process, which can extend the life ofthe product.
density.A protective layer of SiO2 is formed on the surface of SiC which slows the oxidation process, which can extend the life ofthe product.
6.SiC displays an extremely universal high corrosion resistance in acidic, alkali, basic media and oxidants -even at hightemperatures.
