Quick Details
-
Brand Name:
-
Kacise
-
Function:
-
distance / level measurement
-
Measurement range:
-
max. 60m
-
Measurement accuracy:
-
0.25%~1%
-
Resolution:
-
3mm or 0.1%(The larger one is effective)
-
Display:
-
English LCD
-
Analog output:
-
4~20mA
-
Relay output:
-
2 way relay
-
Power supply:
-
220V / 24VDC /12V / battery
-
Environment temperature:
-
Display instrument-20~+60℃, transducer-20~+80℃
-
Communication port:
-
RS485, RS232 ( optional )
Quick Details
-
Usage:
-
Level Sensor
-
Model Number:
-
KUM-E
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Kacise
-
Function:
-
distance / level measurement
-
Measurement range:
-
max. 60m
-
Measurement accuracy:
-
0.25%~1%
-
Resolution:
-
3mm or 0.1%(The larger one is effective)
-
Display:
-
English LCD
-
Analog output:
-
4~20mA
-
Relay output:
-
2 way relay
-
Power supply:
-
220V / 24VDC /12V / battery
-
Environment temperature:
-
Display instrument-20~+60℃, transducer-20~+80℃
-
Communication port:
-
RS485, RS232 ( optional )

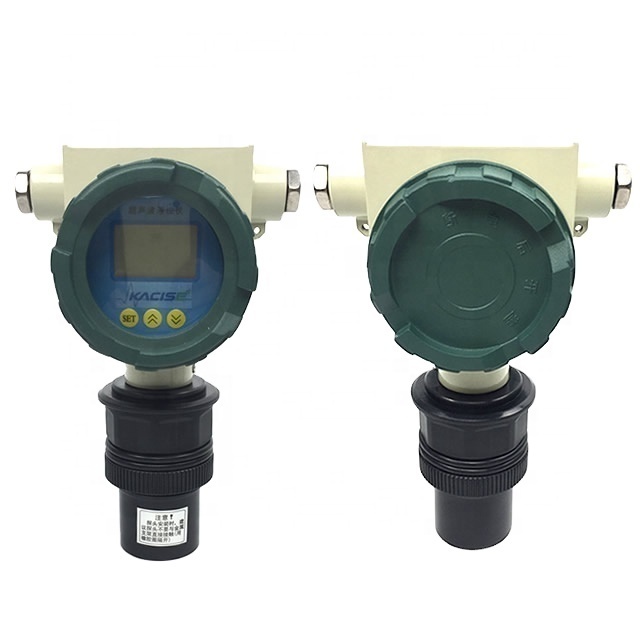

Introduction of KUM-E Explosion Proof Ultrasonic Level Meter
KUM-A ultrasonic level (material place , liquid level) meter , is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.
Parameters
|
Integral type |
|
|
Measurement range |
5m , 10m , 15m , 20m , 30m , 40m , 50m , 60m |
|
Measurement accuracy |
0.5%~1% |
|
resolution |
3mm or 0.1% ( The larger one is effective ) |
|
display |
|
|
Analog output |
4wires4 ~ 20mA/510&; load 2wires4 ~ 20mA/250&; load |
|
Relay output |
2 way AC 250V/8A or DC 30V/5A, programmable ( optional ) |
|
Power supply |
24VDC(default)
|
|
Environment temperature |
Display instrument-20 ~ +60 ℃ , transducer-20 ~ +80 ℃ |
|
Communication port |
RS485 , RS 232 ( optional ) |
|
Protocol |
Modbus-RTU |
|
Display instrument IP65 , transducer IP68 |
|
|
transducer cable |
none |
|
Transducer installation |
According to the range and transducer select |
|
Probe type |
There are 6 type probes now and also there are 3 types under development. Type1:PVDF Type2:aluminium alloy Type3:ABS Type4: stainless steel 316 Type5: Teflon Type6:titanium alloy We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe. |
| KUM-A Integral Type | KUM-B Split Type | KUM-E Explosion-proof Integral Type |
|
|
|
