Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
Moko
-
Supplier Type:
-
manufacturer
-
Product name:
-
IOT bluetooth WIFI gateway
-
Warranty:
-
12 Months
-
Dimensions:
-
120x120x22.5 mm
-
Function:
-
BLE data transmission
-
Weight:
-
125g
-
Wireless standard:
-
IEEE 802.11 b/g/n
-
Scanning range:
-
Up to 150m in open area at 1M PHY
-
Memory:
-
128kB RAM and 512kB Flash
-
Scanning capability:
-
Max: 319 BLE advertising packets per second
-
Certification:
-
CE FCC RoHS
Quick Details
-
Chipset:
-
nrf52833
-
Application:
-
Positioning and Navigation
-
Model Number:
-
MKGW1
-
Place of Origin:
-
GUA
-
Brand Name:
-
Moko
-
Supplier Type:
-
manufacturer
-
Product name:
-
IOT bluetooth WIFI gateway
-
Warranty:
-
12 Months
-
Dimensions:
-
120x120x22.5 mm
-
Function:
-
BLE data transmission
-
Weight:
-
125g
-
Wireless standard:
-
IEEE 802.11 b/g/n
-
Scanning range:
-
Up to 150m in open area at 1M PHY
-
Memory:
-
128kB RAM and 512kB Flash
-
Scanning capability:
-
Max: 319 BLE advertising packets per second
-
Certification:
-
CE FCC RoHS
Product Description

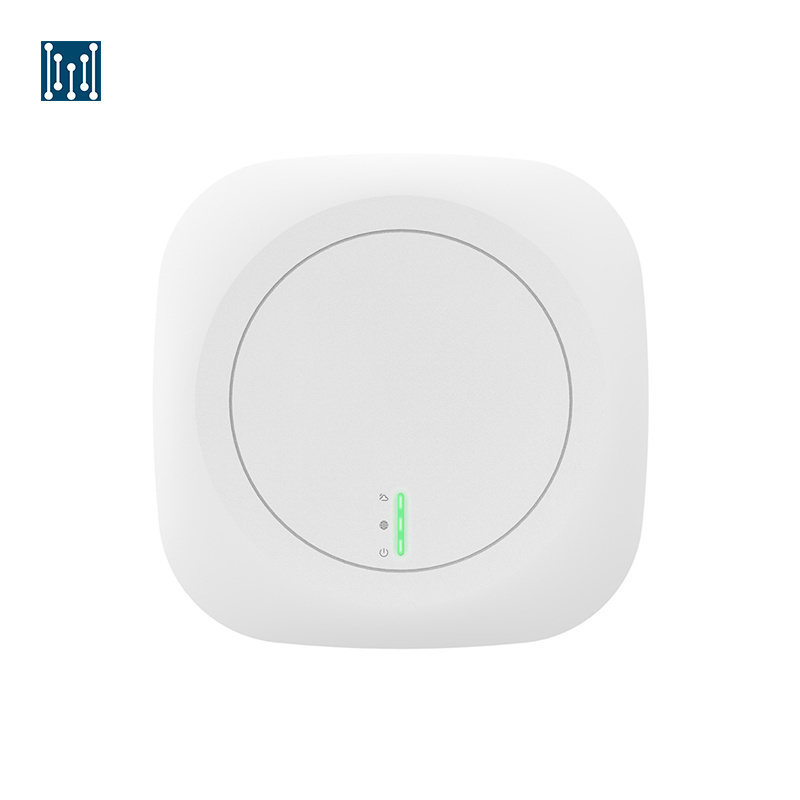

MKGW1-BW Pro Bluetooth WIFI gateway
MKGW1-BW Pro is a multi-wireless gateway with Bluetooth LE (BLE) and Wi-Fi. It is based on
the innovative integration of Nordic Semiconductor nRF52833 and MediaTek MT7688/MT7628 platform. This enables the MKGW1-BW Pro gateway to support Bluetooth 5 features like Coded PHY (Long range), 2M PHY as well as IEEE 802.11b/g/n 2.4Ghz Wi-Fi and 10/100 FE PHY Ethernet. MKGW1-BW Pro captures multiple BLE devices information (such as Apple iBeacon, Google Eddystone and MOKO BLE sensor data) and sends to Internet
MQTT/HTTP server or local TCP/UDP server. Powered by MOKO SMART, users can configure the Bluetooth and Sever information through a simple and user-friendly Web Gateway User Interface (GUI). It makes the configuration
easy and helps users to develop a fully featured IoT solution quickly.
Specification
|
Model Number
|
MKGW1
|
|
Bluetooth module
|
MOKO MK08B Nordic nRF52833 BLE module
|
|
Wi-Fi module
|
MediaTek 7688AN (low-spec, default) MediaTek 7628NN (high-spec)
|
|
Supplier Type
|
manufacturer
|
|
Power Supply
|
PoE, DC port, Micro USB
|
|
Application
|
Positioning and Navigation
|
|
Product name
|
IOT bluetooth WIFI gateway
|
|
Warranty
|
12 Months
|
|
Dimensions
|
120x120x22.5 mm
|
|
Function
|
BLE data transmission
|
|
Weight
|
125g
|
|
Wireless standard
|
IEEE 802.11 b/g/n
|
|
Scanning range
|
Up to 150m in open area at 1M PHY
|
|
Memory
|
128kB RAM and 512kB Flash
|
|
Scanning capability
|
Max: 319 BLE advertising packets per second
|
|
Certification
|
CE FCC RoHS
|
The comparison between MKGW1-BW and MKGW1-BW Pro
MKGW1-BW is the previous version of Bluetooth Gateway designed by MOKO SMART. The
MKGW1-BW Pro is the newest version.
