Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display
Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display

Reliable LED Display 4/5/6-Digit 485/232/TTL Interface Modbus RTU/ASCII 0-10V/4-20mA Analog Segment LED Digital Tube Display

FOB Reference Price: Get Latest Price
≥1 Pieces
US $20
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Color:
Red/Blue
Panel Size:
Customizable, Customizable
Place of Origin:
Hubei, China
Model Number:
LED-485-054
Pixel Pitch:
tube chip, tube chip
Specification:
ANALOG, MODBUS-RTU/ASCII
Brightness:
adjustable, adjustable
Lifespan (hours):
≥100000 hours, ≥100000 hours
IP Rating:
IP68, IP68
HS Code:
85312000
Product name:
LED Digital Tube Display
Digit Color:
RED/BLUE
Number of digits:
3/4/5/6 digits
Interface:
RS485/RS232/ttl
Communication protocol:
MODBUS/ASCII
Waterproof:
IP68
Installation Way:
Embedded installation
Certifications:
CE / ROSH / FCC / ISO 9001
After-sales Service Provided:
Online Support

Quick Details

Application:
Indoor, Outdoor, Industrial applications
Type:
LED
Brand Name:
WHMX
Color:
Red/Blue
Panel Size:
Customizable, Customizable
Place of Origin:
Hubei, China
Model Number:
LED-485-054
Pixel Pitch:
tube chip, tube chip
Specification:
ANALOG, MODBUS-RTU/ASCII
Brightness:
adjustable, adjustable
Lifespan (hours):
≥100000 hours, ≥100000 hours
IP Rating:
IP68, IP68
HS Code:
85312000
Product name:
LED Digital Tube Display
Digit Color:
RED/BLUE
Number of digits:
3/4/5/6 digits
Interface:
RS485/RS232/ttl
Communication protocol:
MODBUS/ASCII
Waterproof:
IP68
Installation Way:
Embedded installation
Certifications:
CE / ROSH / FCC / ISO 9001
After-sales Service Provided:
Online Support
VR
Product Description

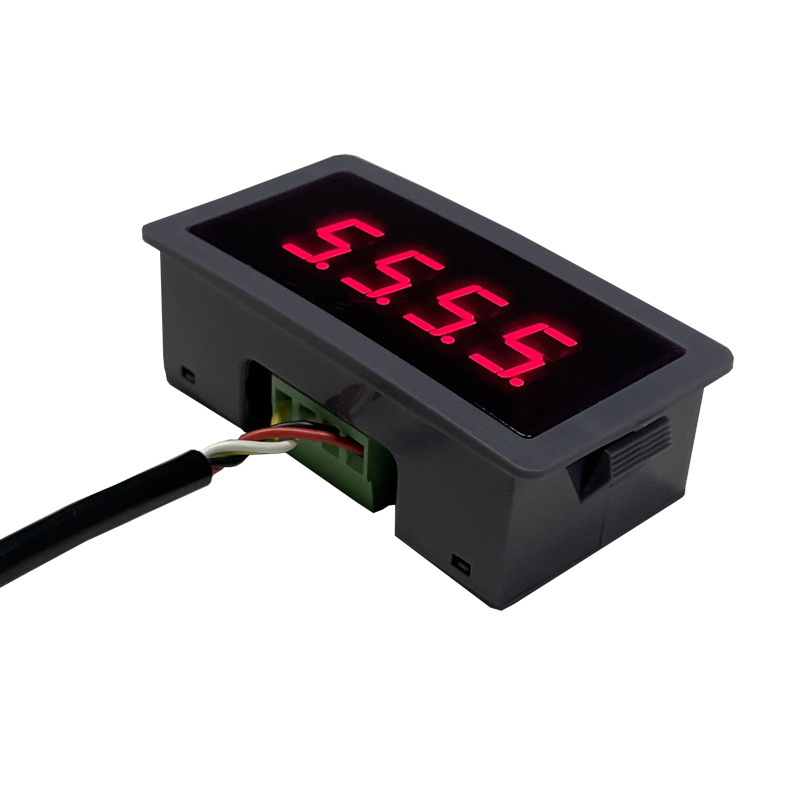

Product Name
LED Digital Tube Display
Input Voltage
7-36V DC power supply, 12V or 24v recommended
Power Supply Current
Current 50ma @24 v
Number of Digits
3 digits, 4 digits, 5 digits, 6 digits
Displayed Color
High Red / Light Blue
Product Dimensions
81.5*42*27MM
Communication Protocol
Modbus/ASCll ( no need switch)
Enter the Interface
RS485/RS232/ttl
Baud Rate
1200,2400,4800,9600,19200,38400,57600,115200
Average Service Life
≥One hundred thousand hours
Application
Industrial applications, indoor and outdoor
Brand
WHMX
Place of Origin
Wuhan China
Product Function
This digital display screen adopts
high-brightness LED digital display,
with clear display, high brightness, and long
service life.This product supports
Modbus-RTU and Modbus-ASCII communication protocols, making it easy to communicate with other devices and achieve data interoperability.It also supports conversion of 0-10V and 4-20mA analog signals, achieving accurate display of various data.
Size(mm)
Item
A
B
C
D
E
F
digit width
digit height
083(three digits)
81.5
42.0
27.0
72.0
23.5
12.0
11.0
20.10
054(four digits)
81.5
42.0
27.0
72.0
23.5
12.0
7.30
12.70
055(five digits)
81.5
42.0
27.0
72.0
23.5
12.0
7.30
12.70
046(six  digits)
81.5
42.0
27.0
72.0
23.5
12.0
6.30
10.16
How to wire
Product Performance

48 hours of high and low temperature tests in professional equipment
Simulate -40° extreme environment
Simulate 85° extreme environment
Our Services
Our service goal is to make our customers satisfied and trust us, and to establish a long-term and stable cooperative relationship.
We are committed to providing our customers with high-quality services that meet their needs and requirements.Our services include:
Customization : We have an experienced design team that can provide professional customization services based on our customers' needs and requirements.
Technical support : We have a professional technical team that can provide technical support and consulting services to help our customers solve technical problems and improve production efficiency.
Pre-sales consultation : Our sales team can provide comprehensive pre-sales consultation services to help our customers choose the most suitable products and solutions.
After-sales service : We have an experienced after-sales service team that can provide timely after-sales service and support to solve any problems our customers may encounter during use
Package&Shipping
Our LED digital displays are carefully packaged to ensure safe and reliable delivery to our customers. Each display is
individually wrapped and placed in a protective foam layer to prevent damage during transportation.The packaging materials we use are of high quality and environmentally friendly. The boxes are made of sturdy cardboard that is easy to recycle, and the foam inserts are made of biodegradable materials.
Company Introduction
WUHAN MIAOXIN INTELLIGENT TECHNOLOGY CO.,LTD.
We are a company that has been established for 12 years, focusing on the production and sales of LED digital tube display . As a factory, we have strong research and development capabilities and expertise, and can provide high-qualitycustomized products. Our R&D team is composed of experienced engineers with advanced production technology and equipment, and can meet various customer needs. Our products not only have high precision, high brightness, and high definition, but also have stable performance and durable lifespan.To provide more comprehensive services, we also have a professional after-sales service team, which can provide timely technical support and problem-solving for customers. We always adhere to the customer-centered philosophy and are committed to providing customers with the best quality products and services. In addition, we have strong customization capabilities and can provide personalized design and production based on customer needs andrequirements. Whether it is special sizes, shapes, or functions, we can meet customer requirements and provide the best solutions.As a company with strong professionalism, we constantly promote technological innovation and product upgrades to meet the ever-changing needs of customers. Our goal is to become a leading global manufacturer of LED digital tubes and digital display screens, and provide customers with better products and services.
