- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
2-Year
-
Weight:
-
10.8kg
-
Lens:
-
F1.8~2.6,f=24~43.2mm 1.8X
-
Model Number:
-
PJ-YW8600
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
1280x800P
-
Display Panel:
-
3x0.79inches
-
Display Technology:
-
Liquid Crystal Display
-
Lamp mode:
-
ECO,NORMAL,Auto
-
Image Flip:
-
Left/Right,Up/Down
-
Color:
-
Black
-
Audio in(L/R)--RCA:
-
RCA X 2(L/R)
-
Video Projector Proyector:
-
HD Beamer
-
Digital Cinema Projector:
-
Video Proyector
-
Edge Blending:
-
YES
Quick Details
-
Portable:
-
Yes
-
Standard Resolution:
-
1920X1200 Pixels WUXGA
-
Projection Distance:
-
1.2m~16.4m
-
Warranty(Year):
-
2-Year
-
Weight:
-
10.8kg
-
Lens:
-
F1.8~2.6,f=24~43.2mm 1.8X
-
Model Number:
-
PJ-YW8600
-
Place of Origin:
-
Guangdong, China
-
Resolution:
-
1280x800P
-
Display Panel:
-
3x0.79inches
-
Display Technology:
-
Liquid Crystal Display
-
Lamp mode:
-
ECO,NORMAL,Auto
-
Image Flip:
-
Left/Right,Up/Down
-
Color:
-
Black
-
Audio in(L/R)--RCA:
-
RCA X 2(L/R)
-
Video Projector Proyector:
-
HD Beamer
-
Digital Cinema Projector:
-
Video Proyector
-
Edge Blending:
-
YES
Product Description
Please Contact Supplier
For The Best Advice!
PJ-YW8600
Functions &Highlights
Advanced, Multifunctional Projector
Ideal for large meeting rooms and theater-like settings
PJ-YW8600
projector offers high levels of brightness and contrast, improved installation ease and eco-conscious features in consideration of
the environment. Capable of ensuring clear, sharp large-screen presentations in large meeting rooms and theater-like settings,
these user-friendly projectors are ideal for visual communication with impact.
the environment. Capable of ensuring clear, sharp large-screen presentations in large meeting rooms and theater-like settings,
these user-friendly projectors are ideal for visual communication with impact.
High brightness
High-brightness engineering projector can obtain clear and sharp images even in bright environments, suitable for applications in large auditoriums, conference rooms, hotels, large-scale exhibitions and other fields.
Vibrant colors, true restoration
Using 3LCD technology, the color of the output picture is balanced, the picture quality is exquisite and delicate, and it presents
a real, natural and bright color picture.
360° installation
It can be installed 360 degrees according to customer needs, which is flexible and convenient, reduces installation restrictions
and greatly broadens the application range.
Horizontal, vertical keystone correction/square correction
Due to the complexity of the installation environment, after the projector is placed, the picture will be distorted to a certain
extent.
The four-corner correction function can adjust each corner of the projected image individually, and supplemented by the horizontal
±15° and vertical ±30° keystone correction functions to easily make the projected image a rectangle.
x1.8 high magnification standard mirror + 4 optional lenses
The built-in standard mirror has a zoom rate of up to 1.8 times, and there are 4 optional lenses that support projection of
100-inch images within the range of 1.6m to 15.1m.
It provides convenience for the application of various large-scale places and commercial facilities, and meets the application
needs of different environments.
Motorized focus/zoom/lens shift
Equipped with electric focus, electric zoom and electric lens shift functions, the installation screen can be adjusted remotely
without moving the projector, which greatly improves the convenience of use and easily presents high-quality images.
HD BaseT technology
D BaseT technology is a multi-signal transmission system using one fiber optic cable. Using HD BaseT technology, through ordinary
RJ45 connector or CAT5e/6 network cable,
It can transmit high-definition video and documents without compression, and the maximum transmission distance can reach 100m.
Provides a larger operating space for the installation and application of the projector.
Support USB direct reading
With a USB interface, it supports direct reading of U disk and realizes offline projection. There is no need to carry a laptop
when going out for presentations, and it has outstanding performance in terms of mobility.
High-brightness engineering projector can obtain clear and sharp images even in bright environments, suitable for applications in large auditoriums, conference rooms, hotels, large-scale exhibitions and other fields.
Vibrant colors, true restoration
Using 3LCD technology, the color of the output picture is balanced, the picture quality is exquisite and delicate, and it presents
a real, natural and bright color picture.
360° installation
It can be installed 360 degrees according to customer needs, which is flexible and convenient, reduces installation restrictions
and greatly broadens the application range.
Horizontal, vertical keystone correction/square correction
Due to the complexity of the installation environment, after the projector is placed, the picture will be distorted to a certain
extent.
The four-corner correction function can adjust each corner of the projected image individually, and supplemented by the horizontal
±15° and vertical ±30° keystone correction functions to easily make the projected image a rectangle.
x1.8 high magnification standard mirror + 4 optional lenses
The built-in standard mirror has a zoom rate of up to 1.8 times, and there are 4 optional lenses that support projection of
100-inch images within the range of 1.6m to 15.1m.
It provides convenience for the application of various large-scale places and commercial facilities, and meets the application
needs of different environments.
Motorized focus/zoom/lens shift
Equipped with electric focus, electric zoom and electric lens shift functions, the installation screen can be adjusted remotely
without moving the projector, which greatly improves the convenience of use and easily presents high-quality images.
HD BaseT technology
D BaseT technology is a multi-signal transmission system using one fiber optic cable. Using HD BaseT technology, through ordinary
RJ45 connector or CAT5e/6 network cable,
It can transmit high-definition video and documents without compression, and the maximum transmission distance can reach 100m.
Provides a larger operating space for the installation and application of the projector.
Support USB direct reading
With a USB interface, it supports direct reading of U disk and realizes offline projection. There is no need to carry a laptop
when going out for presentations, and it has outstanding performance in terms of mobility.
|
Key parts
|
|
|
||
|
|
Panel
|
3*0.79“
|
||
|
|
Lamp
|
F:1.8~2.6
|
||
|
|
PW IC
|
Panasonic:480W
|
||
|
|
Sony IC
|
Topaz:PWC878
|
||
|
|
Brightness （Typ）
( Ansi Lumens ) |
10, 000
|
||
|
|
Brightness （Min）
( Ansi Lumens ) |
8, 000
|
||
|
Panel
|
Display Panel
|
3*0.79''
|
||
|
|
Display Technology
|
Liquid Crystal Display
|
||
|
|
Native Resolution
|
WXGA(1280 x 800)
|
||
|
Lamp
|
Lamp Consumption(W)
|
Nomal: 480W
|
||
|
|
Lamp Lifetime(H)
|
Normal:5000Hrs/ECO:6000Hrs
|
||
|
Projection
Lens |
Zoom/Focus
|
Powered
|
||
|
|
Throw Ratio
|
100"@3.142m
1.55（wide）--2.81(tele) |
||
|
|
F
|
F:1.8~2.6
|
||
|
|
f
|
f=24.0mm~43.2mm
|
||
|
|
Zoom Ratio
|
1.8x optics
|
||
|
|
Screen size
|
40-300 Wide(inch)
|
||
|
|
Lens Shift V
|
±70%(Powered)
|
||
|
|
Lens Shift H
|
±30%(Powered)
|
||
|
CR
|
Contrast Ratio(Min)
|
2000:1 with IRIS @ lens center
|
||
|
Noise
|
Noise(dB)
|
Normal:40dB@2m
ECO:34dB@2m |
||
|
Uniformity
|
Uniformity(Actual Min)
-JISX6911 |
90%
|
||
|
AR
|
Aspect Ratio
|
16:10 (Standard)/4:3 (Compatible)
|
||
|
Input
|
VGA
|
*1
|
||
|
|
Audio in
（mini jack,3.5mm） |
*2
|
||
|
|
BNC
|
*5
|
||
|
|
Video
|
*1
|
||
|
|
Audio in（L/R）
--RCA |
*2
|
||
|
|
S-Video
|
*1
|
||
|
|
HDMiI
|
*2
|
||
|
|
USB-A
|
*1
1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) |
||
|
|
Micro USB
|
*1（Display）
|
||
|
|
RJ45
|
*1（Display）
|
||
|
|
DVI-D
|
*1
|
||
|
Output
|
VGA
|
*1
|
||
|
|
Audio out
（mini-jack,3.5mm） |
*1
|
||
|
Control
|
RS232
|
*1
|
||
|
|
RJ45
|
*1 (Control)
|
||
|
|
Micro USB
|
*1
1. For upgrade 2. Mico-USB Display |
||
|
|
Wired Remote(IN)
|
*1
|
||
|
|
Wired Remote(OUT)
|
*1
|
||
|
|
HD-Base T
|
*1
|
||
|
General Spec
|
|
|
||
|
Audio
|
Speaker
|
1*10W
|
||
|
Keystone
|
Keystone Correction
|
V: ±30°（auto+manual）
H：±15°（manual） Pincushion/Barrel Correction Corner Keystone |
||
|
OSD
|
Languages
|
26 languages
|
||
|
Others
|
Edge Blending
|
Yes
|
||
|
|
MAX Dimensions
(WxHxD mm) |
481*179*418 mm
|
||
|
|
Net. Weight (KG)
|
9.98
|
||
|
|
Packaging Box Dimensions
(WxHxD mm) |
620*585*295 mm
|
||
|
|
Gross. Weight (KG)
|
~13.2
|
||
|
|
Manual Languages
|
Chinese,English
|
||
|
|
Standard Accessaries
|
Power cord, VGA cable,
Remote control& RC Battery |
||
Additional Features
Network Connectivity
Projectors are equipped with a RJ-45 LAN terminal for remote operation. Additionally, when used with Crestron RoomView™,
integrated control of up to 250 projectors including power on/off control, message display and confirmation of lamp service hours
is possible. PJ-YW8600 is equipped with AMX Device Discovery for simplified device management and compatible
with PJLink™.
Network Connectivity
Projectors are equipped with a RJ-45 LAN terminal for remote operation. Additionally, when used with Crestron RoomView™,
integrated control of up to 250 projectors including power on/off control, message display and confirmation of lamp service hours
is possible. PJ-YW8600 is equipped with AMX Device Discovery for simplified device management and compatible
with PJLink™.
Quiet 30dB Operation
Fan noise during projector operation can be distracting during a presentation or videoconference. The PJ-YW8600 projector operates
at a significantly low noise level of only 30dB (i.e., in "low lamp" mode). As a result, presentations and conferences can be held
without distracting projector noise in the background.
2-screen mode (Split)Test patternDirect power offClosed caption supportHigh-altitude mode (1,500 to 2,700m)Virtual DICOM modeOSD
menu multilanguage compatibility (20 languages*)
*Existing languages: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish
Languages added: Dutch, Indonesian, Malaysian, Norwegian, Thai, Turkish, Vietnamese, Arabic
Fan noise during projector operation can be distracting during a presentation or videoconference. The PJ-YW8600 projector operates
at a significantly low noise level of only 30dB (i.e., in "low lamp" mode). As a result, presentations and conferences can be held
without distracting projector noise in the background.
2-screen mode (Split)Test patternDirect power offClosed caption supportHigh-altitude mode (1,500 to 2,700m)Virtual DICOM modeOSD
menu multilanguage compatibility (20 languages*)
*Existing languages: Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish
Languages added: Dutch, Indonesian, Malaysian, Norwegian, Thai, Turkish, Vietnamese, Arabic
Compatible Projector Lens

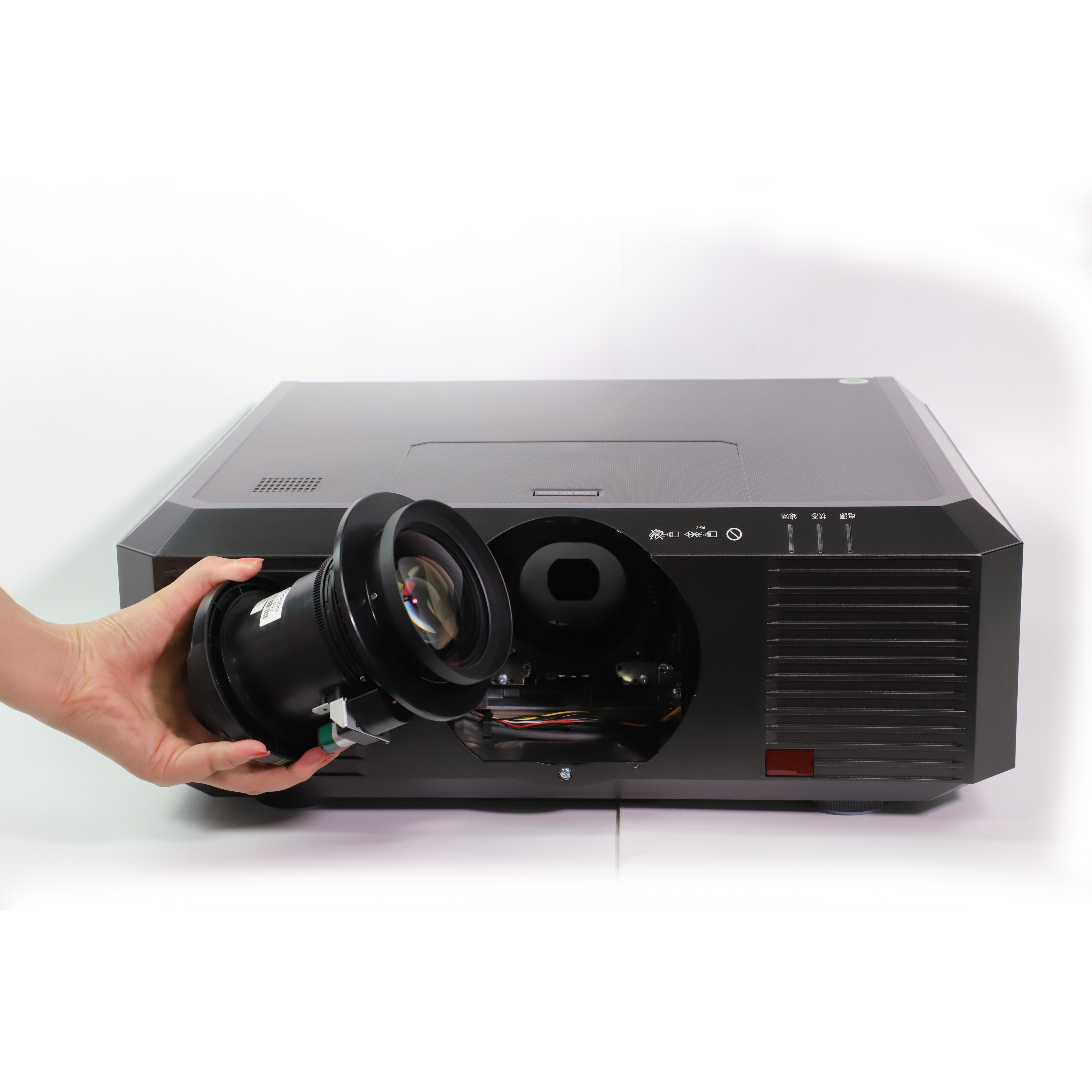

One Key Change the lens
The bayonet mount system uses a touch-sensitive lens removal method, so that the lens can be easily replaced after installation.
Simply unscrew and remove the anti-drop cover, press the release button, and then gently rotate the lens to easily remove it.
Similarly, just gently insert and rotate the lens, you can easily complete the lens installation.
