Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSTB
-
Model Number:
-
KSD301-G
-
Max. OT:
-
280°C
-
Rated current:
-
5A/10A/16A
-
Base:
-
ceramic base
-
Cover:
-
fixed/moveable braket/screw
-
Terminal:
-
customized
-
Life Cycles:
-
100000 times
-
Product type:
-
Auto-reset type
-
Product name:
-
Bimetal thermostat
-
Certification:
-
CQC, TUV
Quick Details
-
After-sales Service Provided:
-
Return and Replacement
-
Warranty:
-
1 Year
-
Power Source:
-
Manual
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSTB
-
Model Number:
-
KSD301-G
-
Max. OT:
-
280°C
-
Rated current:
-
5A/10A/16A
-
Base:
-
ceramic base
-
Cover:
-
fixed/moveable braket/screw
-
Terminal:
-
customized
-
Life Cycles:
-
100000 times
-
Product type:
-
Auto-reset type
-
Product name:
-
Bimetal thermostat
-
Certification:
-
CQC, TUV

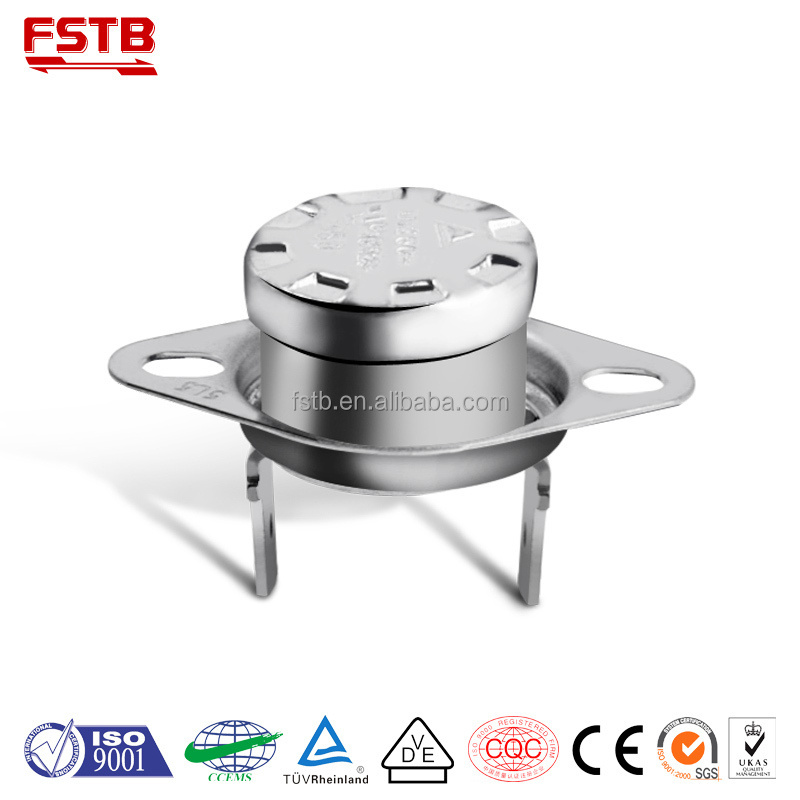

FSTB KSD301 250V 16A Thermostat Switch With CQC VDE TUV UL Self-control Air Conditioner Thermostat Temperature Switch
Description:
KSD301 series snap-action thermostat is a kind of miniature hermetically sealed bimetal thermal protector (1/2" disc). It is of single-pole single-throw structure and works under resistive load. KSD301 series is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.
Advantages:
Easy mounting.
Rapid heat transmission.
High durability.
No breakdown, no flashover.
Every product will be tested, extremely high temperature pass rate.
High precision.
Parameter:
|
Use |
Temperature control/Overheat protection |
|
Appliance |
Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc |
|
Reset type |
Automatic |
|
Base material |
ceramic base |
|
Amperage |
5A/10A/16A |
|
Max. Operating Temperature |
220 °C |
|
Differential |
Refer to the regulation |
|
Tolerance |
Refer to the regulation |
|
Protection class |
IP00 |
|
Contact material |
Silver/Gold |
|
Dielectric Strength |
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
|
Insulation Resistance |
With a DC 500V megger, borne DC 500V, the tested value is over 10M W . |
|
Resistance Between Terminals |
Below 50m W |
|
Temp. characteristics: |
Normal type: OFF temperature higher than ON temperature.(Normal close) K type: ON temperature higher than OFF temperature.(Normal open) One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off. |
|
Maximum ambient temperature |
280 °C (Long period) 310 °C (Less than 15 min) |
|
Diameter of bimetal disc |
F 12.8mm ( 1/2″ ) |
|
Approvals |
CQC/TUV |
|
Terminal type |
Customized (Refer to our specification) |
|
Cover/Bracket |
Customized (Refer to our specification) |
Dimension of the main body:
Safety certificate:
|
Max. OT |
Life |
250V 5A |
250V 10A |
125V 16A |
250V 16A |
|
150 ° C |
100,000 |
sec. 2 |
sec. 4 |
sec. 4 |
|
|
160 ° C |
100,000 |
|
CQC,TÜV |
|
|
|
190 ° C |
30,000 |
CQC |
|
|
|
|
60,000 |
|
CQC |
|
TÜV |
|
|
220 ° C |
30,000 |
|
CQC,TÜV |
|
|
|
100,000 |
|
, sec. 2 |
, sec. 4 |
