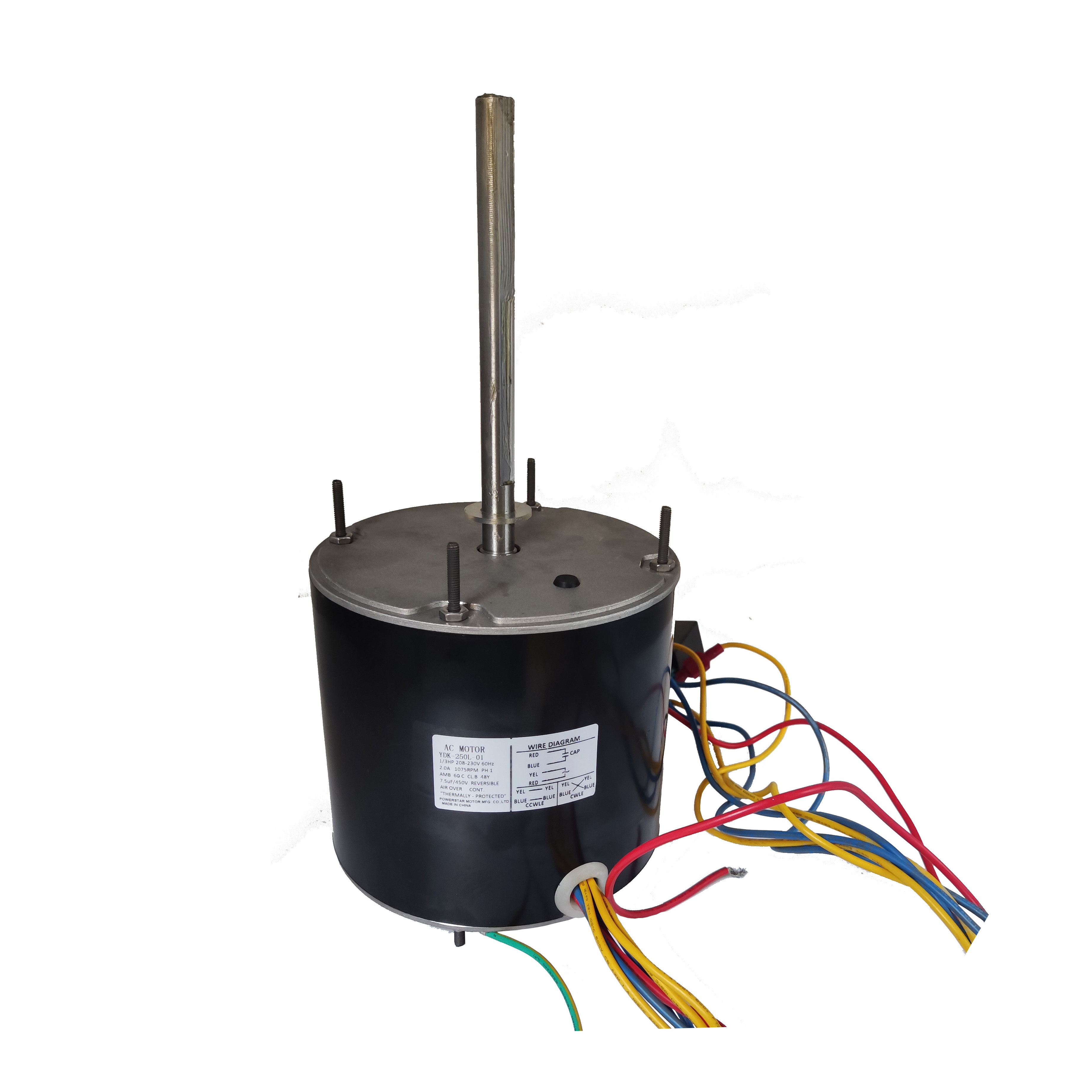

1/2" Shaft OEM Replacement Motors 220-240V 3 speed Multi Horse Power Condenser Fan Motor AC Motor

FOB Reference Price: Get Latest Price
≥100 Pieces
US $30
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
YDK-370-6M
Frequency:
50/60Hz
rpm:
1075
bearing:
ball
rot:
reversible
speed:
3
Ambient temperature:
-4-104F(-2-6C)
Insulation class:
B
Amps:
3.9
voltage:
208-230

Quick Details

AC Voltage:
115/120 V
Place of Origin:
Guangdong, China
Brand Name:
POWERSTAR
Model Number:
YDK-370-6M
Frequency:
50/60Hz
rpm:
1075
bearing:
ball
rot:
reversible
speed:
3
Ambient temperature:
-4-104F(-2-6C)
Insulation class:
B
Amps:
3.9
voltage:
208-230

multi horse power condenser ac fan motor

Product Description

Ideal replacements for blowers in direct drive furnaces, air conditioners and exhaust fans.

Features:

  • PSC
  • 48 frame,1075 RPM Sleeve bearing Reversible rotation, 3 speedPhase: Single Phase Thermal Protection: Automatic Speeds: 3 Rotation: Reversible Bearings: Sleeve Enclosure Type: Open Frame Size: 5.6" Frame Motor Diameter (In.): 5.6 Motor Length (In.): 4 1/4 Shaft (In.): 1/2 X 6 Bolt Circle (In.): 5-6/32 (5.2) Ship Weight: 14 lbs.

Powerstar: Powerstar
Type: Asynchronous Motor
Rated Voltage 208-230
Frequency: 50/60hz
Output Power: 1/6-1/2
RPM: 825/1075
Protect Feature: totally enclosed
Speed: 3
APMS: 1-3.9
Rotation REV
Phase: Single-phase
Bearing: Ball bearing
Place of Origin: Guangdong China (Mainland)
Certification: ROHS,CE
Features:
  • up/down design
  • reversible rotation
  • thru bolt or band mounting
  • all angle sleeve or ball bearing
  • water slinger on shaft
  • 5 1/2'' diameter
  • full six inch shaft length

Specifications:

• Reversible plug for easy rotation
• Class H Insulation
• Quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Voltage 208-230 voltage
• Diameter: Steel cover144mm
• Automatic overload
• Operating temp -10-43 degree
• Power:150-250W

• Rated Frequency:50/60Hz

• Number of Pole: 6/8Pole
• Shaft size:15mm
• Speed: 825-1075rpm
• Thermal protection
• High efficiency,High reliability,Little vibration,Low noise

Model Power(HP) Voltage(V) Speed RPM Amps ROT Protect Feature Bearing
YDK-250-8M 1/3 208-230 3 825 1.9 reversible totally enclosed ball
YDK-180-8M 1/4 208-230 3 825 1.5 reversible totally enclosed ball
YDK-150-8M 1/5 208-230 3 825 1.2 reversible totally enclosed ball
YDK-120-8M 1/6 208-230 3 825 1 reversible totally enclosed ball
YDK-250-6M 1/3 208-230 3 1075 2.8 reversible totally enclosed ball
YDK-180-6M 1/4 208-230 3 1075 2 reversible totally enclosed ball
YDK-150-6M 1/5 208-230 3 1075 1.7 reversible totally enclosed ball
YDK-120-6M 1/6 208-230 3 1075 1.5 reversible totally enclosed ball
YDK-370-6M 1/2 208-230 3 1075 3.9 reversible totally enclosed ball
YDK-250-6M 1/3 208-230 3 1075 2.2 reversible totally enclosed ball
YDK-180-6M 1/4 208-230 3 1075 1.6 reversible totally enclosed ball
YDK-150-6M 1/5 208-230 3 1075 1.3 reversible totally enclosed ball
