Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MicMachinery
-
Dimension(L*W*H):
-
2000mm*12mm*2200mm
-
Weight:
-
1000 KG
-
Filling Types:
-
Isobaric pressure filling system
-
Packing Types:
-
Aluminum can, tinplate can, pet can
-
Capacity:
-
6000-10000CPH based on 12oz cans
-
Filling Range:
-
250ml, 330ml, 500ml, 12oz, 16oz, 0.1-1L
-
Material:
-
Food grade stainless steel 304/316
-
Function:
-
Rinser Filler Seamer
-
Control System:
-
Automatic PLC control with HMI interface
-
Options:
-
Empty can depalletizer, inline can rinser, labeler, carton packer
-
Marketing Type:
-
New Product 2020
Quick Details
-
Machinery Capacity:
-
4000BPH, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, Other
-
Packaging Material:
-
Metal, Glass, Other
-
Filling Material:
-
Beer, Water, Juice, Other
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V/50Hz
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MicMachinery
-
Dimension(L*W*H):
-
2000mm*12mm*2200mm
-
Weight:
-
1000 KG
-
Filling Types:
-
Isobaric pressure filling system
-
Packing Types:
-
Aluminum can, tinplate can, pet can
-
Capacity:
-
6000-10000CPH based on 12oz cans
-
Filling Range:
-
250ml, 330ml, 500ml, 12oz, 16oz, 0.1-1L
-
Material:
-
Food grade stainless steel 304/316
-
Function:
-
Rinser Filler Seamer
-
Control System:
-
Automatic PLC control with HMI interface
-
Options:
-
Empty can depalletizer, inline can rinser, labeler, carton packer
-
Marketing Type:
-
New Product 2020

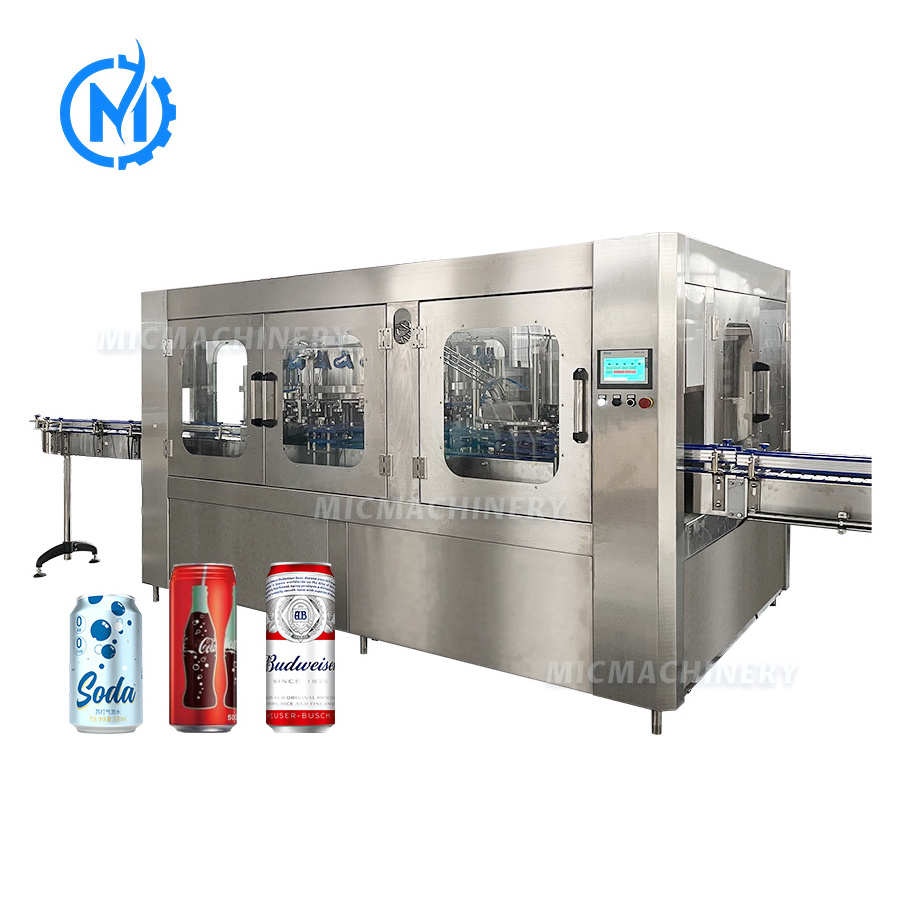

Mic 32-8 beer can filling machine adopts isobaric pressure filling system which is applicable for beer, carbonated beverage, soft drink, hard cider, soda water, sparkling water and other canned drinks (Cold filling temperature at 0-4 degrees Celsius) .
If you also want to use the same machine to fill non-carbonated drinks is available. Through change the counter pressure filling valves to normal pressure filling valves then it will be suitable for filling non-carbonated beverages such as energy drink, fruit juice, cold brew coffee, herbal tea and so on.
— MACHINE APPLICATION —
MACHINE FEATURES:
1.
Mic 32-8 beer can filling machine is in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and seaming part is the overall designed, in order to ensure that both the absolute synchronization and coordination.
2.
The machine adopts PLC, frequency converter, human machine interface controlling system, having the advanced controlling technologies, such as frequency control, no can no filling and so on.
3.
Isobaric filling system, controlled by pressure, accuracy is +/-1%，liquid level difference is not more than 2mm. (requires steady pressure and temperature at 0-4degrees Celsius).
4.
Can seaming machine is qualified for Chinese seaming standard, and no air leakage at all.
5.
It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip CIP system according to the customers’ request. It is the preferred equipment for the small brewery and medium beverage plant
6.
Aluminum can and metal can are both available working on our seaming machine, We use our own technical drawing and own processing machine, to make sure our seaming head quality and always easy to purchase.
7.
If Cans stock on conveyor then sensor will inform PLC to stop the Can feeding.
8.
About machine test and shipment, we are stick with real production test till all problem is fix and then ship out.
— TECHNICAL PARAMETER —
|
Power
|
4.2Kw
|
|
Filling heads
|
32piece
|
|
Sealing heads
|
8piece
|
|
Production capacity
|
6000-10000CPH based on 330ml
|
|
Filling temperature
|
0-4℃
|
|
Filling pressure
|
Max 5bar/0.5Mpa
|
|
Can diameter range
|
Ф40-90MM
|
|
Can height
|
92-168MM
|
|
Dimension
|
2800*1700*1950mm
|
|
Weight
|
3800Kg
|
|
Model/Parameter
|
MIC-12/1
|
MIC-32/8
|
|||||||
|
Application
|
Beer, carbonated drinks, gas beverage, cold coffee, sparkling water, cider, soda water, herbal tea, non-carbonated drinks and so on
|
|
|
|
|
||||
|
Packing Type
|
Aluminum cans, tin cans, pet cans, etc
|
|
|
|
|
||||
|
Capacity
|
1000-2000CPH
|
1000-2500CPH
|
3000-6000CPH
|
4000-8000CPH
|
6000-10000CPH
|
||||
|
Filling Range
|
180ml, 250ml, 330ml, 355ml, 440ml, 500ml, 8oz,
12oz, 16oz, 1L and so on (0.1-1L)
|
|
|
|
|
||||
|
Power
|
1.1KW
|
1.5KW
|
2.5KW
|
3.5KW
|
4.2KW
|
||||
|
Size
|
1.8M*1.3M*1.95M
|
1.9M*1.3M*1.95M
|
2.3M*1.4M*1.9M
|
2.58M*1.7M*1.9M
|
2.8M*1.7M*1.95M
|
||||
|
Weight
|
1800KG
|
2100KG
|
2500KG
|
3000KG
|
3800KG
|
||||
— DETAILS IMAGES —
— OTHER RECOMMEND PRODUCTS —
— FACTORY VIEW —
— FAQ —
Q1.Are you trading company or manufacturer ?
>>
We are factory. Our factory is located in Zhangjiagang near Shanghai.
Q2.What is the payment of your company?
>>
100% T/T, 30% of prepaid contracts entered into force, 70% paid before delivery. L/C is supported also.
Q3.Do you provide a complete production line and customized services?
>>
We are a company that provides a complete production line. We can design the machine according to your requirements (material, power, filling type, bottle type, etc), and we will give you our professional advice. As you know, we have beenin this industry for many years.
Q4.If we buy your machine, what is your guarantee or quality assurance?
>>
We provide you with high- quality machines with 1 year warranty and lifetime technical support.
Q5.How long does it take to install?
>>
According to your machine order, we will send one or two engineers to your factory, about 10 days. Customers need to provide round-trip air tickets, visa fees, local transportation, accommodation, food, 120 US dollars/ day / person.
Q6.What kind of after-sales service is provided?
>>
After the production is completed, we will debug the production line, take photos, video and send to customers via email or instant tools. After the commissioning is completed, we will package and ship the equipment according to the standard export packaging. Operating manuals will be sent with machine or by email. According to the customer' s requirements, we can arrange our engineers to the customer's factory for installation and training. Engineers, sales managers, and after-sa les service managers form an after-sales team to follow up on customer projects online and offline.
