- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1785x950x1050mm
-
Power (kW):
-
20 kW
-
Weight (KG):
-
900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Joint Rubber Conveyor Belt
-
Name:
-
Conveyor Belt Splicing Vulcanizing Press
-
Keywords:
-
conveyor belt splicing press
-
Weight:
-
1T
-
Power(W):
-
10-30KW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
STEADY
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
1785x950x1050mm
-
Power (kW):
-
20 kW
-
Weight (KG):
-
900 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Joint Rubber Conveyor Belt
-
Name:
-
Conveyor Belt Splicing Vulcanizing Press
-
Keywords:
-
conveyor belt splicing press
-
Weight:
-
1T
-
Power(W):
-
10-30KW
Product Description
Product Application

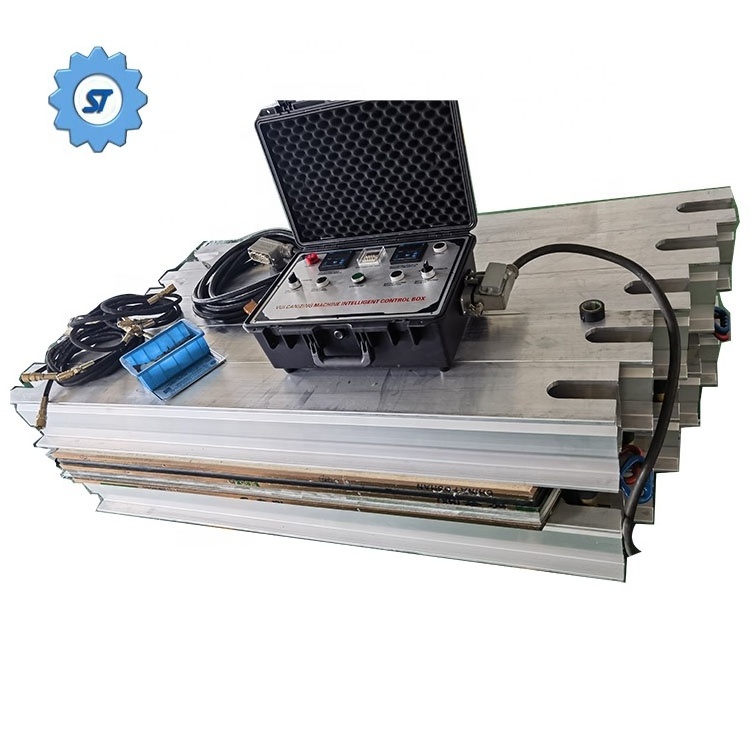

Rubber Conveyor Belt Hot Splicing Vulcanizing Press Machine
is mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field.
1.Machine Maximum size: from 300MM-6000MM;
2.Voltage: 220V 380V 415V 660V 50HZ;
3.Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4.Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5.The temperature difference of sulfide surface: ±2°c.
6.Temperature adjustment range: 0~300°c.
7.Vulcanizing pressure: 0~2.5 MPa (details refer to users' specifications and factory markings);
8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10. rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11. Users could order spare electric pumps additionally according to requirements.
Model for Choice( or Just me your belt size, belt type)
Main Features
1) Rubber Conveyor Belt Hot Splicing Vulcanizing Press Machine is simple structure, ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) The conveyor belt splicing press adopts high strong guide screw .
4) The rubber belt vulcanizing joint press is durable in use, not easy cause problem.
Work in overseas factory.
Detailed Images
Machine Parts
Name: Control Box
Brand: steady
Original: china
Domestic famous engines, CHNT, stable and accurate in work, easy use and maintenance.
Main Features
Name:
Rubber Pressurizing Chamber
Brand: steady
Original: china
strong, no leakage, and easy add pressure, demount pressure.
Machine Parts
Name:
Heating Element
Brand:
steady
Original:
China
Even heating effect, easy use and maintenance.
Main Features
Name:
Electronic Pump
Model: QL280
Original: China
Domestic famous engines, strong driving force, with pressure gage.
Product Paramenters
|
Model
|
Belt Width
|
Splicing
Dimension(mm) |
Heating
Plate Size(mm) |
Power(kw)
|
Overall
Dimension(cm) |
Weight
(kg) |
|
ST-650
|
650
|
650x830
|
810x830
|
10
|
140x83x63
|
440
|
|
|
|
650x1000
|
810x1000
|
12
|
140x100x63
|
530
|
|
ST-800
|
800
|
800x830
|
960x830
|
12
|
150x83x63
|
515
|
|
|
|
800x1000
|
960x1000
|
14
|
150x100x63
|
630
|
|
ST-1000
|
1000
|
1000x830
|
1160x830
|
15
|
170x83x63
|
600
|
|
|
|
1000x1000
|
1160x1000
|
17
|
180x100x63
|
715
|
|
ST-1200
|
1200
|
1200x830
|
1360x830
|
17
|
192x83x75
|
800
|
|
|
|
1200x1000
|
1360x1000
|
20
|
198x100x75
|
912
|
|
ST-1400
|
1400
|
1400x830
|
1560x830
|
20
|
215x83x75
|
885
|
|
|
|
1400x1000
|
1560x1000
|
23
|
220x100x75
|
1050
|
|
ST-1600
|
1600
|
1600x830
|
1760x830
|
22
|
240x83x80
|
1130
|
|
|
|
1600x1000
|
1760x1000
|
26
|
245x100x80
|
1325
|
|
ST-1800
|
1800
|
1800x830
|
1960x830
|
25
|
260x83x90
|
1420
|
|
|
|
1800x1000
|
1960x1000
|
29
|
265x100x90
|
1630
|
|
ST-2000
|
2000
|
2000x830
|
2160x830
|
27
|
280x83x90
|
1560
|
|
|
|
2000x1000
|
2160x1000
|
32
|
285x100x90
|
1824
|
|
ST-2200
|
2200
|
2200x830
|
2360x830
|
30
|
300x83x98
|
1720
|
|
|
|
2200x1000
|
2360x1000
|
35
|
305x100x98
|
2030
|
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Parameters discussion.
* Draft drawing making for size and shape confirmation
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Customer Photos
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
1800 (L) * 850 (W) * 900 (D)mm
|
|
|
Weight
|
0.8T
|
|
|
Packaging Details
|
The package is fumigation free wooden box(Size: L*W*H as per model purchased).
Especially for export use.
|
|
|
Packaging
|
|
|
|
Size
|
5690 (L) * 2230 (W) *2200 (D)
|
|
|
Weight
|
15T
|
|
|
Packaging Details
|
If the purchase quantity is big, then we'll adopts full container load delivery
|
|
