Quick Details
-
Voltage:
-
220V/240V/380V/440V
-
Dimension(L*W*H):
-
960*960*600mm
-
Weight:
-
160 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
stainless steel
-
layer:
-
single layer
-
mesh size:
-
60mesh
-
function:
-
sorting /screening
-
diameter:
-
800mm
-
used for:
-
sifting bee pollen
-
feature:
-
easy replace mesh screen
-
HS code:
-
8474100000
-
customized:
-
available
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YongQing
-
Voltage:
-
220V/240V/380V/440V
-
Dimension(L*W*H):
-
960*960*600mm
-
Weight:
-
160 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
stainless steel
-
layer:
-
single layer
-
mesh size:
-
60mesh
-
function:
-
sorting /screening
-
diameter:
-
800mm
-
used for:
-
sifting bee pollen
-
feature:
-
easy replace mesh screen
-
HS code:
-
8474100000
-
customized:
-
available

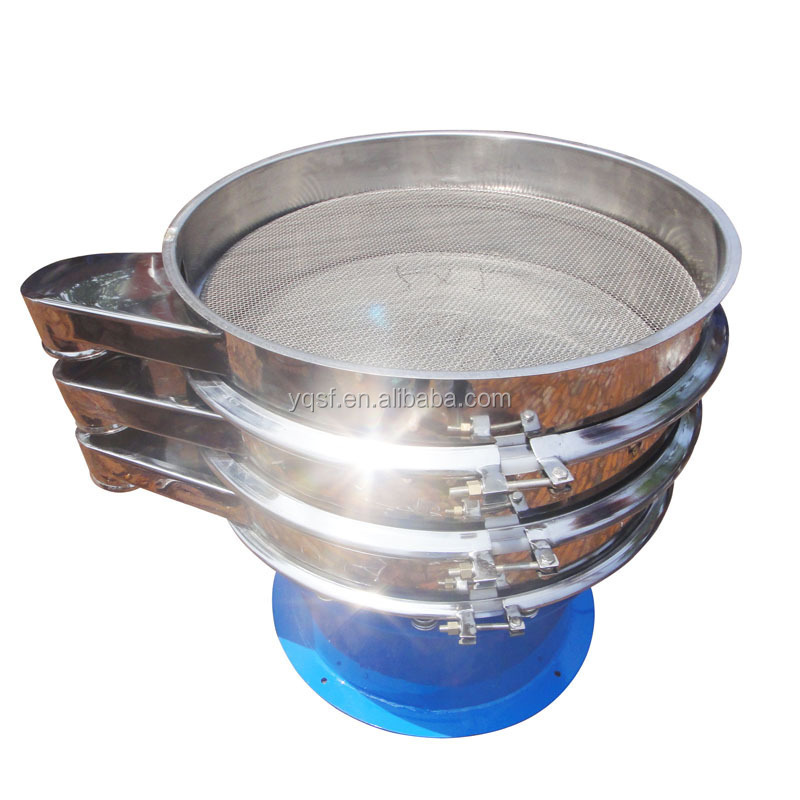

Electric Vibrating Sieve for Bee Pollen Granules
Introduction of Pollen Screen Shaker
XZS series electric shaking screen is used for sizing/ separating /grading /sifting granule or powder materials . For sifting bee pollen , removing undersize or oversize impurities and get cleaning pollen granules . when you need to sieve the pollen granules twice , a double layers screen machine will be you best choice .
Features of Bee Pollen Sieve:
1. high efficiency , high accuracy vibrating screen machine ;
2. with food grade silicon bouncing ball , no mesh blockage ;
3. fast release clamp , fast and easy to replace screen mesh ;
4. can realized total-enclosed production , reduce air pollution ;
5. factory direct supply , reasonable price and high quality ;
6. can be designed according to requirement .
Different Models of Pollen Sieve Machine
|
Model |
XZS-500 |
XZS-600 |
XZS-800 |
XZS-1000 |
XZS-1200 |
XZS-1500 |
XZS-1800 |
XZS-2000 |
|
Dia (mm) |
500 |
600 |
800 |
970 |
1170 |
1470 |
1770 |
1970 |
|
Deck |
1-5 |
1-5 |
1-5 |
1-5 |
1-5 |
1-3 |
1-2 |
1-2 |
|
Screen Dia (mm) |
430 |
530 |
730 |
900 |
1100 |
1400 |
1700 |
1900 |
|
Mesh Size |
2-500mesh |
|||||||
|
Maximum particle size(mm) |
<20 |
<20 |
<30 |
<30 |
<50 |
<50 |
<50 |
<50 |
|
rotating speed |
1440rpm |
|||||||
|
Power(kw) |
0.25- 0.55 |
0.25-0.55 |
0.55-0.75 |
0.75-1.5 |
1.1-1.8 |
1.5-2.2 |
2.2 |
2.2 |
How to Select Suitable Model Sieve Machine?
Please advice following information , then exact sieving solution will be offered :
1. what is your process material ?
2. what is your process capacity per hour ?
3. how many screen decks you need ?
4. what mesh size you need for each deck ?
Other Application:
This vibrating sieve machine has a wide application , suitable for powder and granular materials' screening/sieving/sifting/grading/separating/sorting /filtering ,
used for food screening process : salt , sugar , spice , flour , starch , coca powder , milk powder , food additives etc .
mineral screening process : quartz sand , lime powder , silica , mica etc .
chemical screening process : paint , coating , cosmetic , pigment , battery lead powder etc .
