Quick Details
-
Material:
-
hollow fibers, PVDF
-
Weight (KG):
-
5 kg
-
membrane material:
-
PVDF
-
bore diameter:
-
0.1micron
-
Product name:
-
MBR membrane sheet
-
Application:
-
Wastewater Treatment
-
Type:
-
Package MBR WWTP
-
Usage:
-
Biological Industry
-
Function:
-
Food Industrial Ect
-
Use:
-
Water Treatment Technologies
-
Name:
-
Marine Sewage Treatment Plant
Quick Details
-
Core Components:
-
UF membrane
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YOUBER
-
Material:
-
hollow fibers, PVDF
-
Weight (KG):
-
5 kg
-
membrane material:
-
PVDF
-
bore diameter:
-
0.1micron
-
Product name:
-
MBR membrane sheet
-
Application:
-
Wastewater Treatment
-
Type:
-
Package MBR WWTP
-
Usage:
-
Biological Industry
-
Function:
-
Food Industrial Ect
-
Use:
-
Water Treatment Technologies
-
Name:
-
Marine Sewage Treatment Plant
Membrane Bioreactor combines membrane technology with biochemical reaction technology, through filtration and spoil disposal, to increase the concentration of the microorganism, greatly enhancing the biochemical efficiency, and degrading sewage. Successfully applied in the treatment of domestic sewage, fine chemical wastewater, food wastewater, washes, pharmaceutical wastewater, hospital wastewater, landfill leachate, coking wastewater, textile wastewater, printing and dying waste water and many other kinds of fields.

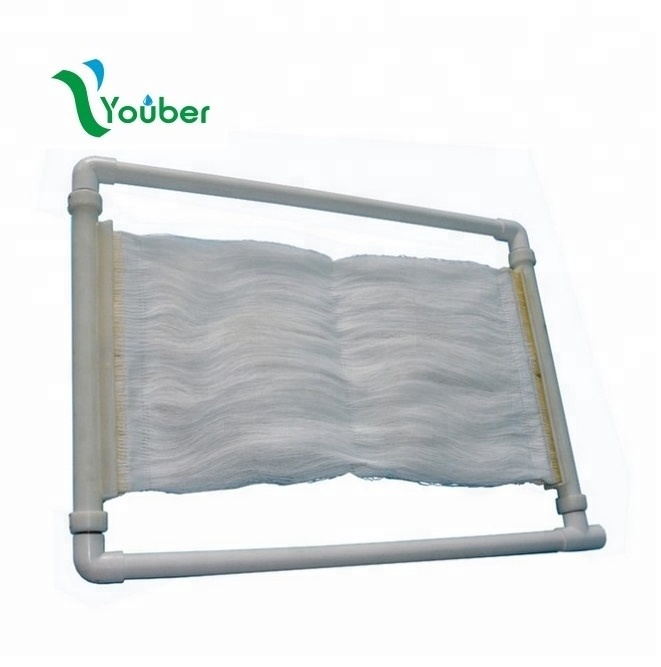

MBR Membrane Biological Reactor for waste water treatment
The technical characteristics of MBR membrane and MBR system:
(1) High mechanical strength, the membrane fiber is not easy to break off in the process of high strength aeration and chemical cleaning;
(2) Good chemical stability, it can be washed using the strong acid and alkali;
(3) It can effectively reduce COD, BOD, ammonia nitrogen, etc. The water output can reach municipal sewage reuse water standard;
(4) The suspend solid of feed water can reach up to 8000MG/L;
(5) High equipment integration degree, compact structure, small occupation space, no need civil work pool, short construction period, transportation, installation and debugging is simple;
(6) The equipment can be customized; the MBR integration equipment is acceptable from 10 to 6 TPD.
Applications:
It can be used for municipal sewage and industrial waste water treatment and substitute for secondary sedimentation tank in removing suspended particles, so as to increase nitrogen removal rate and organics degradation rate.
PP material MBR membrane sheet technical parameters:
|
Model |
MBR-PP-8 |
MBR-PP-16 |
|
Module length |
810MM |
1050MM |
|
Module width |
525MM |
534MM |
|
Outlet diameter |
DN15 |
DN25 |
|
Module membrane area |
8M² |
16M² |
|
Interception pore diameter |
0.1-0.2micron |
0.1-0.2micron |
|
Turbidity of water output |
<1NTU |
<1NTU |
|
Tolerance range of temperature |
1-40℃ |
1-40℃ |
|
Tolerance range of PH value |
1-14 |
1-14 |
|
Flow of producing water |
1-1.2M³/D |
2-2.5M³/D |
|
Max transmembrane pressure (TMP) |
-0.05MPA |
-0.05MPA |
|
Type of water output |
Negative pressure suction |
|
|
Chemical cleaning agents |
Citric acid / sodium hydroxide / sodium hypochlorite |
|
|
1. Technical parameters in the table are factory inspection value under standard testing conditions; 2. The flow is producing water flow when the product is used in MBR sewage treatment. |
||
PVDF material MBR membrane sheet technical parameters:
|
Model |
MBR-PVDF-4.5 |
MBR-PVDF-10 |
MBR-PVDF-16 |
|
Module length |
750MM |
980MM |
1500MM |
|
Module width |
530MM |
650MM |
850MM |
|
Outlet diameter |
25MM |
32MM |
40MM |
|
Module membrane area |
4.5M² |
10M² |
16M² |
|
Interception pore diameter |
0.1micron |
0.1 micron |
0.1 micron |
|
Turbidity of water output |
<1NTU |
<1NTU |
<1NTU |
|
Tolerance range of temperature |
5-45℃ |
5-45℃ |
5-45℃ |
|
Tolerance range of PH value |
2-12 |
2-12 |
2-12 |
|
Flow of producing water |
1-1.5 M³/D |
2.4-6 M³/D |
3.5-9 M³/D |
|
Max transmembrane pressure(TMP) |
-0.05MPA |
-0.05MPA |
-0.05MPA |
|
Type of water output |
Negative pressure suction |
||
|
Chemical cleaning agents |
Citric acid / sodium hydroxide / sodium hypochlorite |
||
|
1. Technical parameters in the table are factory inspection value under standard testing conditions; 2. The flow is producing water flow when the product is used in MBR sewage treatment; |
|||
Advantage of MBR:
1. High quality output water
It doesn’t need other solid liquid separation equipment as membrane has already removed SS and colloid, output water can be reused without further treatment.
2. Small space
High biological concentration in reactor improved the volume, high efficiency of membrane reduces the water residence time, reduce its cover space. Besides, as MBR do not need setting pond and specialized workshop, it’s about 60% of traditional solution on size.
3. Low operating cost
MBR reduces the running time and power consumption of aeration device, save much money. And using membrane to remove germs, do not need additional sterilize chemical and flocculant and other chemicals, lower the operating cost.
MBR classification:
MBR contains membrane and biological reactor, difference on the combination mode and their own character make different MBR system. From membrane character, MBR are divided into internal pressure and external pressure type. Internal pressure means water permeate from membrane inside to outside, and external pressure just the reverse. In practical projects, external pressure type is more popular because internal pressure type is to easy to the blocked, water treatment effect is not well.
Technology content:
Membrane Bioreactor combines membrane technology and biochemical reaction technology, through filtration and spoil disposal, to increase the concentration of the microorganism, enhancing the biochemical efficiency greatly, and degrading sewage.
Flat sheet MBR membrane sheet
Material: PVDF
Size: 220*320*6 mm
YB-3 series f lat sheet MBR membrane technical parameters
YB -3A flat sheet MBR membrane:
|
No |
Item |
Technical parameters |
|
1 |
Effective membrane area |
1.0( M2/piece) |
|
2 |
Length*width*thickness |
1200*510*5(MM) |
|
3 |
Fibers pore size |
0.1micron |
|
4 |
Weight |
3.6(KG/PCS) |
|
5 |
Membrane material |
PVDF |
|
6 |
Supporting frame material |
ABS |
|
7 |
Aeration flow rate Q(L/min.piece) |
≥11 |
|
8 |
Output water turbidity |
≤1NTU |
YB-3B flat sheet MBR membrane:
|
No |
item |
Technical parameters |
|
1 |
Effective membrane area |
1.5( M2/piece) |
|
2 |
Length*width*thickness |
1800*510*5(MM) |
|
3 |
Fiber pore size |
0.1micron |
|
4 |
Weight |
4.9(KG/PCS) |
|
5 |
Membrane material |
PVDF |
|
6 |
Supporting frame material |
ABS |
|
7 |
Aeration flow rate Q(L/min.piece) |
≥11 |
|
8 |
Output water turbidity |
≤1NTU |
Hollow fiber UF membrane:
Small moveable Sea water desalination machines :
YB-SWRO-500LPD YB-SWRO-1000LPD YB-SWRO-2000LPD
YB-SWRO-5000LPD YB-SWRO-10000LPD
Portable gravity UF water filter for outdoor camping, travelling, emergency drinking, life rescue:
UF filter +Carbon filter straw water filters
(please click the below pictures for more information)
Portable water fitler kettle:
Model: YB-Y-N-60G
The UF system No need electricity, use a hand pump to provide power;
Its pore size 0.01um, can turn surface water into drinking water, flow rate 60 gallon per hour;
The UF machine can be backwashed for recoverying flow rate;
The size of the moveable UF machine is very small, only 45*35*54cm, 22KG;
The small UF system has wheels and handle for easy move and carry around.
