Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*1600*2000mm
-
Weight:
-
2000kg
-
Warranty:
-
1 Year
-
Product name:
-

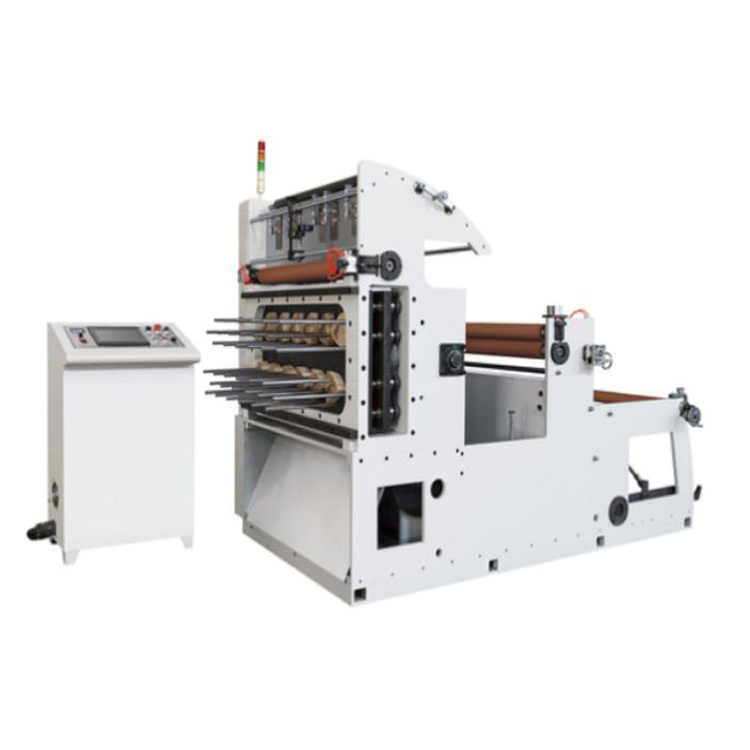

High Quality Automatic Paper Cup Die Cutting Machine
-
Model:
-
OR-C850mm
-
Paper weight:
-
100-500gsm
-
Raw material:
-
Art paper/aluminzed paper/offset paper/PE coated paper/etc.
-
Cut size:
-
1.5-32oz(can be customized)
-
Roll diameter:
-
Max 1400mm
-
Roll width:
-
Max 850mm
-
Speed:
-
170-230times/min(600-1000pcs/min)
-
Machine type:
-
Die Cutting Machine
-
Size:
-
3500*1600*2000mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
Die-cutting Machine
-
Production Capacity:
-
170-230times/min
-
Max. workable width:
-
850mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*1600*2000mm
-
Weight:
-
2000kg
-
Warranty:
-
1 Year
-
Product name:
-
High Quality Automatic Paper Cup Die Cutting Machine
-
Model:
-
OR-C850mm
-
Paper weight:
-
100-500gsm
-
Raw material:
-
Art paper/aluminzed paper/offset paper/PE coated paper/etc.
-
Cut size:
-
1.5-32oz(can be customized)
-
Roll diameter:
-
Max 1400mm
-
Roll width:
-
Max 850mm
-
Speed:
-
170-230times/min(600-1000pcs/min)
-
Machine type:
-
Die Cutting Machine
-
Size:
-
3500*1600*2000mm
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Certification:
-
CE Certificate
Main Parameters of High Quality Automatic Paper Cup Die Cutting Machine
| Model | OR-C850 |
| Raw material | art paper/aluminzed paper/offset paper/PE coated paper/etc. |
| Paper weight | 100-500gsm |
| Cut size | 1.5-32oz(or customized) |
| Speed | 170-230times/min (600-1000pcs/min) |
| Roll diameter | Max 1400mm |
| Roll width | Max 850mm |
| General power | 8.5KW |
| Voltage supply | 220v50hz/380v50hz or customized |
| Weight | 2000kg |
| Dimension | 3500*1600*2000mm |
*Features Of Automatic Paper Cup Die Cutting Machine
- Servo Motor.
- High speed ,600-1000 pcs/min.
- Cut the roll paper directly , control the waste.
- Automatic lubricating system.
- Strong frame ,easy operate.
- Automatic and request less labour.
- One year warranty.
| Packing: normal standard packing/as your requirement | ||||
| Shipping (normally arrive port time in work days) | ||||
| Destination |
Express
Fedex/DHL/TNT |
By sea | By air | By EMS |
| North Ameria | 3-10days | 15-25days | 5-7days | 10-15days |
| South Ameria | 3-10days | 15-25days | 5-7days | 10-15days |
| European Countries | 5-10days | 15-30days | 5-7days | 10-15days |
| Asia Countries | 3-10days | 20-30days | 5-7days | 10-15days |
| Africa Countries | 5-10days | 35-45days | 5-7days | 10-15days |
| The Middle East | 5-10days | 35-40days | 5-7days | 10-15days |
| Australia | 3-7days | 25-35days | 5-7days | 10-15days |
