Quick Details
-
Type:
-
Sit-Down Counterbalance Forklift Trucks (IC)
-
Engine:
-
Japanese engine ISUZU /Nissan
-
Loading Capacity:
-
3 tonne / 6000 lbs
-
lift height:
-
2-stage 3.3m/3.5m/4m mast; 3-stage4.5m/5m/5.5m/6m/7.3m mast
-
Tire:
-
Pneumatic tires (solid/air)
-
Options:
-
full enclosed Cab with heater/ air conditioning
-
Attachments:
-
Side-shifter/Rotator/Push / Pull /Paper Roll clamps / fork positioner
-
Mast:
-
Duplex mast or Triplex mast
-
Related products:
-
3.5 ton /5 ton/7 ton/10 ton forklift
-
montacargas accesorios:
-
montacargas accesorios / aditamento
-
Certification:
-
CE
Quick Details
-
Max. Lifting Load:
-
3 ton
-
Place of Origin:
-
china
-
After-sales Service Provided:
-
Overseas third-party support available
-
Type:
-
Sit-Down Counterbalance Forklift Trucks (IC)
-
Engine:
-
Japanese engine ISUZU /Nissan
-
Loading Capacity:
-
3 tonne / 6000 lbs
-
lift height:
-
2-stage 3.3m/3.5m/4m mast; 3-stage4.5m/5m/5.5m/6m/7.3m mast
-
Tire:
-
Pneumatic tires (solid/air)
-
Options:
-
full enclosed Cab with heater/ air conditioning
-
Attachments:
-
Side-shifter/Rotator/Push / Pull /Paper Roll clamps / fork positioner
-
Mast:
-
Duplex mast or Triplex mast
-
Related products:
-
3.5 ton /5 ton/7 ton/10 ton forklift
-
montacargas accesorios:
-
montacargas accesorios / aditamento
-
Certification:
-
CE

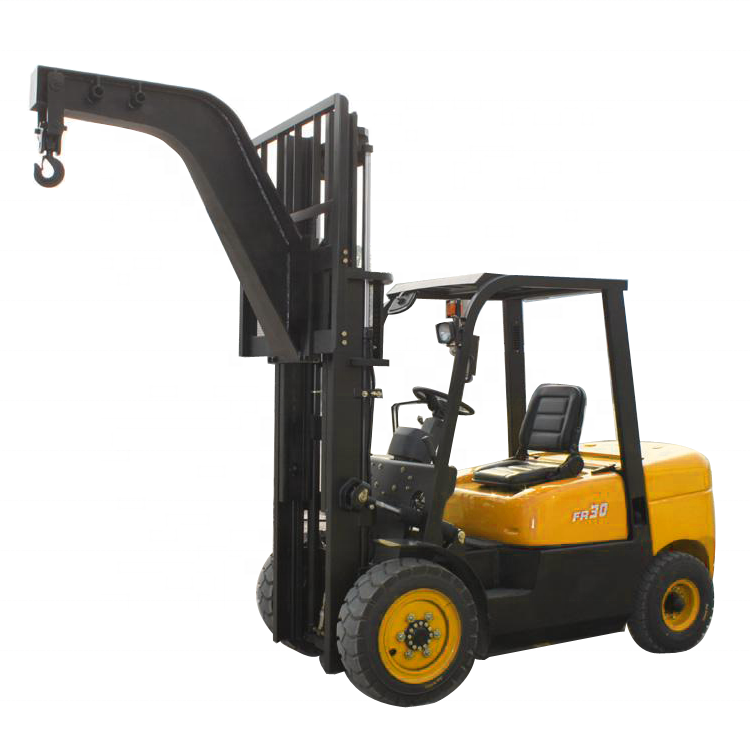

Supply NEW Forklift Jib Crane Attachment
Supply forklifts with various attachments
Feartures
♦ Powerful engine
♦ Low center of gravity, small turning radius, more stable and reliable
♦ Comfortable seat for long-time operation
♦ Safe overhead guard
♦ Rear light for working in the dark
♦ Dual air filter
♦ Streamline balance weight
♦ Side shifter is optional
♦ Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6m/7.3m mast.
♦ Optional engine: EURO II/III China engine; DEUTZ-DACHAI engine; ISUZU engine;
YANMAR engine.
Technical Parameters
| General | Model | CPCD30 | |
| Rated capacity | kg | 3000 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 80 | |
| Turning radius | mm | 2500 | |
| Overall length | mm | 3800 | |
| Overall width | mm | 1230 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2110 | |
| Fork length | mm | 1220 | |
| Fork width | mm | 125 | |
| Fork thickness | mm | 45 | |
| Performance | Max. driving speed (with/without load) | km/h | 18/20 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15.5/10.5 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles(forward/backward) | ° | 6/12 | |
| Service weight | kg | 4320 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 39 | |
| Rated speed | rpm | 2650 | |
| Displacement | L | 2.67 | |
| No. of cylinder | 4 | ||
| Wheel | Front overhang | mm | 465 |
| Wheel base | mm | 1700 | |
| Front tread | mm | 1000 | |
| Rear tread | mm | 970 | |
| Front tire | 28x9-15 | ||
| Rear tire | 6.50-10 |
Nude Package loaded and fixed firmly in 20 gp or 40 gp container
Reference Photos:
Ralated Products
2 tonne 3.5 tonne 5 tonne 7 tonne 10 tonne diesel forklift
Various Attachments to your needs
