Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GENIUSPY
-
Model Number:
-
H27-W-PT
-
Power Supply(V):
-
DC12V
-
Alarm Action:
-
FTP Photo,Email Photo,Local Alarm
-
Supported Mobile Systems:
-
Android,IOS
-
Lens (mm):
-
3.3-97mm
-
app:
-
camhi
-
keyword:
-
wifi camera module
-
senor:
-
imx307
-
sd card slot:
-
128g max
-
keyword2:
-
wireless camera module
Quick Details
-
Special Features:
-
NIGHT VISION, Vandal-proof, Motion Detection, One-way Audio
-
Function:
-
RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, One-way Audio, Vandal-proof
-
Customized support:
-
Online technical support, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GENIUSPY
-
Model Number:
-
H27-W-PT
-
Power Supply(V):
-
DC12V
-
Alarm Action:
-
FTP Photo,Email Photo,Local Alarm
-
Supported Mobile Systems:
-
Android,IOS
-
Lens (mm):
-
3.3-97mm
-
app:
-
camhi
-
keyword:
-
wifi camera module
-
senor:
-
imx307
-
sd card slot:
-
128g max
-
keyword2:
-
wireless camera module
APP:CamHi
How to Programming Return Home position:
76+set+1+call for Turn on Return Home position
76+set+2+call for Turn on Return Home position
When this function is turned on, after waiting for 5 minutes, the PT bracket will automatically return to the Home position
74+set+1+call :The bracket turns on the self-check function when the power is connected or after the power is turned off and restarted
74+set+2+call : The bracket turns off the self-check function when the power is connected or after the power is turned off and restarted
94+call :reset restart bracket
82+call :Reset P/T bracket
2MP IP Camera adopts highly integrated GK7205V200 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard on vif Protocol, support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;
Support English, Italian, Russian, Japanese
The bracket support 270° horizontal rotation and Vertical 60° rotation (Pelco-d ,9600,1)
|
Model:H27-W-PT |
|
|
Operating system |
embedded LINUX |
|
Main processor |
GK7205V200 |
|
Image Sensor |
s ony IMX307 1/2.8" Ultra Low Illumination CMOS Sensor |
|
Day and night mode |
Support |
|
Compression standard |
|
|
Compression standard |
Video compression algorithm supports H.265, H.264 High Profile, H.264 Main Profile and H.264 Baseline |
|
Audio compression algorithm |
G.726/G.711 |
|
Compressed transport stream |
32Kbps-6144bps, can be customized, default 1536Kbps |
|
Images |
|
|
Maximum image size |
2MP (1920*1080) |
|
Sharpness |
First stream:2MP (1920*1080) |
|
D1 (704*576 or 640x480), QQ720P (800x448 or 640x352) can be set |
|
|
Video frame rate |
25fps (50HZ),25fps (60HZ) |
|
Character overlay |
Support OSD name,time and date information overlay |
|
Image settings |
Brightness, contrast, saturation, exposure, up and down reverse, left and right mirroring adjustable |
|
Network Function |
|
|
Storage function |
Supports up to 128G Micro SD card storage and supports scheduled video storage |
|
Motion detection |
Four independent detection areas can be set (sensitivity 1-100 can be set) |
|
Alarm linkage |
alarm sends the picture to the specified mailbox; the alarm uploads the picture and the video is uploaded to the FTP server; |
|
Network Protocol |
Supports TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP |
|
Access Protocol |
Supports on vif 2.4 Protocol |
|
Interface |
|
|
Audio input |
support External MIC |
|
Audio output |
External speaker |
|
LAN interface |
RJ45 10Base-T/100Base-TX, and 2.4G WIFI/802.11b/g/n wireless connection |
|
IR night distance |
support |
|
LEN |
30x zoom,3.3-97mm |
|
waterproof level |
indoor |
|
WIFI |
2.4G WIFI/802.11b/g/n wireless |
|
Working temperature |
-40 to +85 Celsius |
|
power |
DC12V 2A |
|
Working Humidity |
-10-95% |
Humanoid recognition algorithm based on deep learning.
Based on hua wei's deep learning humanoid recognition algorithm V2.0, it provides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth tracking of the camera.

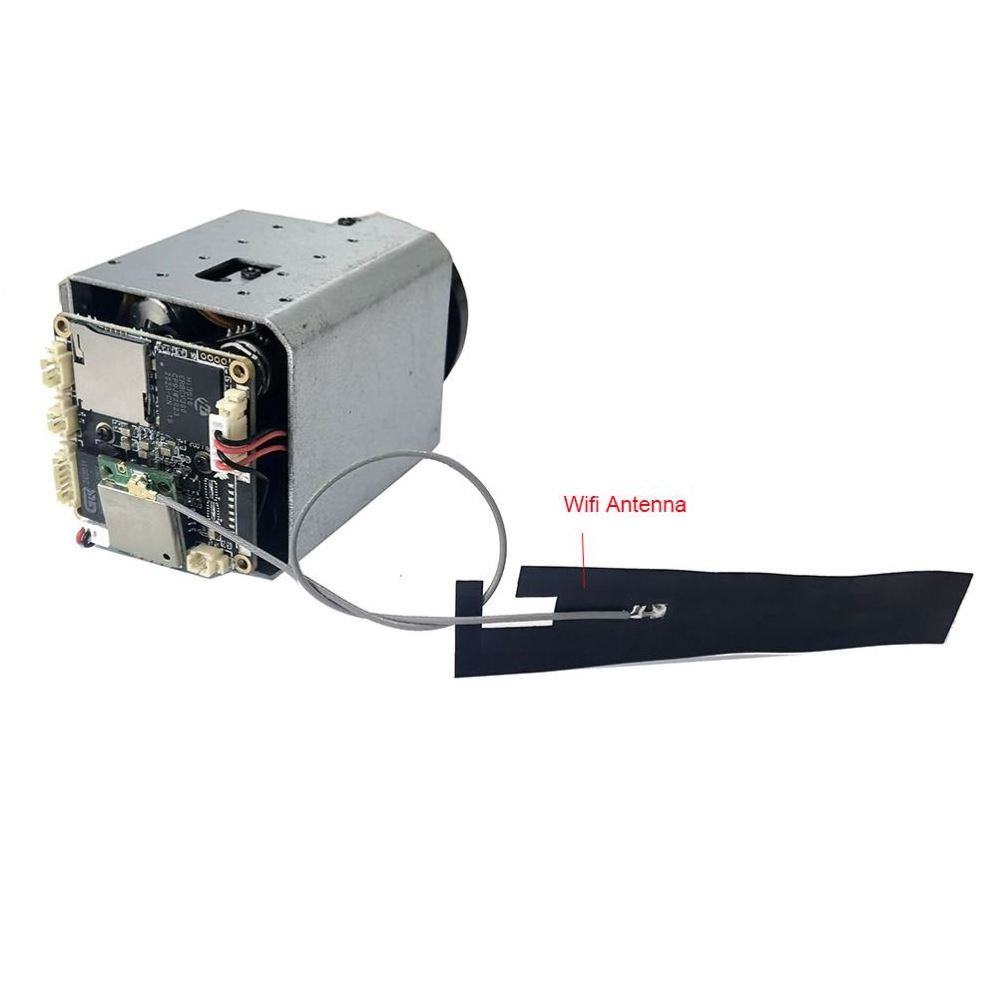

1X 30x zoom wireless IP CAMERA
1X P/T bracket
1X wifi antenna
1X Manual
