Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-SG01A
-
Name:
-
Electric sliding gate opener
-
Output Power:
-
220V AC
-
Output Torque:
-
25N.m
-
motor power:
-
370W
-
Max. gate weight:
-
1000KG / 1500kg
-
Motor Speed:
-
1400r/min
-
Gate speed:
-
12m/min
-
Noise:
-
<=56dB
-
Limit switch:
-
Spring / Magnetic , NO/NC
-
Gear teeth:
-
17T/19T
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RISESAT
-
Model Number:
-
RS-SG01A
-
Name:
-
Electric sliding gate opener
-
Output Power:
-
220V AC
-
Output Torque:
-
25N.m
-
motor power:
-
370W
-
Max. gate weight:
-
1000KG / 1500kg
-
Motor Speed:
-
1400r/min
-
Gate speed:
-
12m/min
-
Noise:
-
<=56dB
-
Limit switch:
-
Spring / Magnetic , NO/NC
-
Gear teeth:
-
17T/19T
Product Description
Product Paramenters
Features:

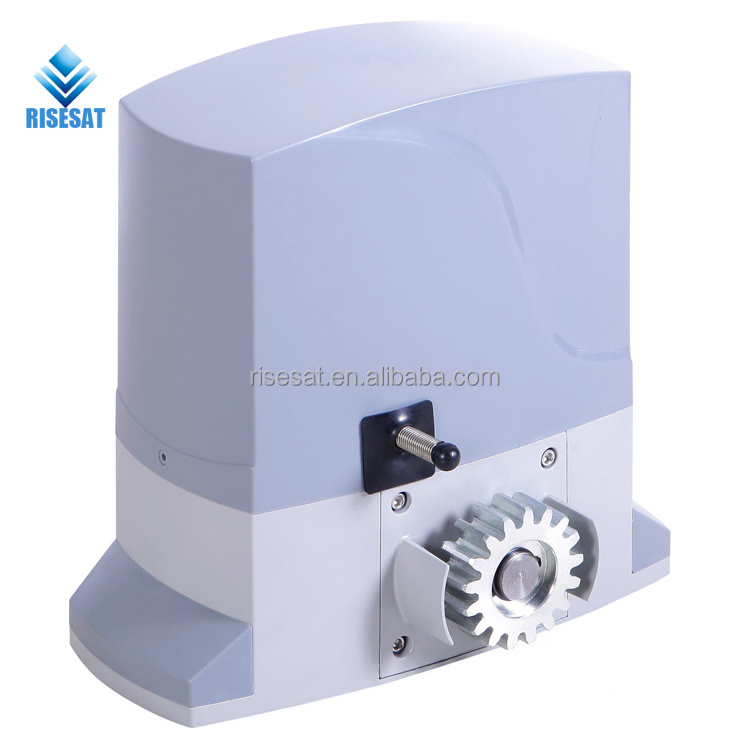

RS-SG01 is the new sliding gate opener.
The open door weighs up to 500kgs and is used in homes .
The motor will be automatically cut off when the temperature reaches the rate value.
Gear with end cover protection, more secure and reliable.
Turbo worm transmission mechanism, transmission stability.
Auto-shuttering back the door against touching, soft start and soft stop.
Convenient installation, when power failure can open the clutch, manual opening.
|
Item No.
|
RS-SG02A
|
RS-SG02B
|
|
Input voltage
|
220V AC / 50Hz
|
220V AC / 50Hz
|
|
Motor speed
|
1400r/min
|
1400r/min
|
|
Output torque
|
25N.m
|
32N. m
|
|
Motor power
|
370W
|
550W
|
|
Max. gate weight
|
1000kg
|
1500N
|
|
Speed
|
12m/min
|
12m/min
|
|
Limit switch
|
Spring/Magnetic NO/NC
|
Spring/Magnetic NO/NC
|
|
Temperature
|
-45 ~ + 65 degree
|
-45 ~ + 65 degree
|
|
Noise
|
<=56dB
|
<=56dB
|
|
Gear Teeth
|
17T/19T
|
17T/19T
|
