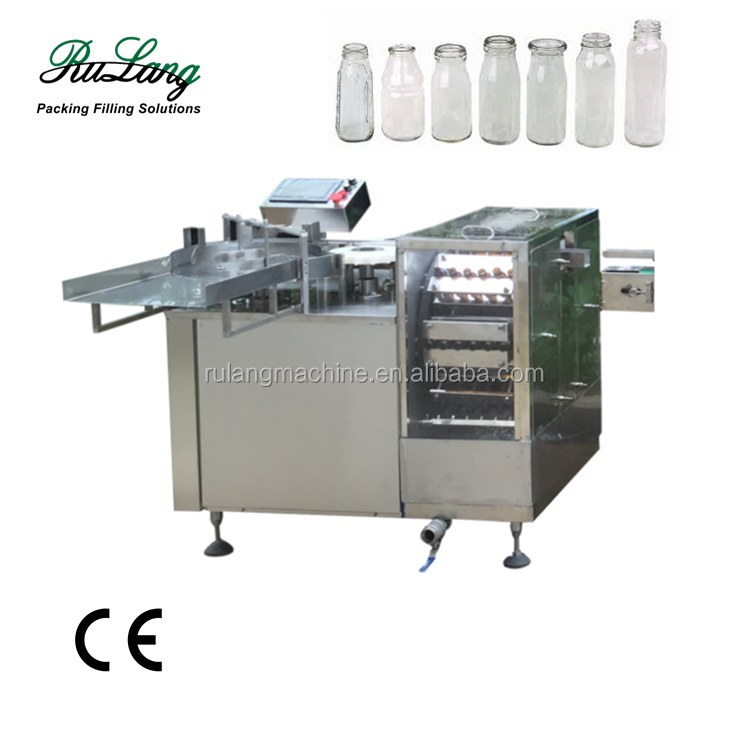

This machine is suitable for the cleaning of 1~1000ml glass bottles. It is used for the drum structure, and bottle feeder to supply the bottle. The bottle separator to send the bottle. Bottles are cleaned by the water, purify the water and purify the compressed air alternately rinse to complete the bottle washing (two water and one gas). This machine adopts touch screen, frequency control and PLC control. The structure is simple, the action is reliable, and it meets the requirements of GMP. It is an ideal equipment for pharmaceutical companies and health care product manufacturers.
|
Model
|
RL-90XP
|
|
Bottles filling speed
|
10~120 bottles/min
|
|
Suitable bottle size
|
1~1000ml, customized
|
|
Return water flow
|
2m3/h, depends
|
|
Return water pressure
|
0.3~0.5MPa
|
|
Injection water consumption
|
1m3/h Pressure
|
|
Injection water pressure
|
0.2 ~ 0.25MPa
|
|
Ultrasonic power
|
2kw depends
|
|
Machine weight
|
Customized
|
|
Power supply
|
220V/380V accept customization
|
Machine is suitable for automatic various glass or plastic bottles simple cleaning before filling. Can connected with bottles filling machine to combine whole packing line.
Name:
touch screen
Our machine touch screen is very good and mature brand.
Can adjust the speed on the touch screen
Optional function: adjust filling volume on touch screen
Name:
bottle feeder
This table can automatic arrange bottles and feeder to washing parts
cleaning water and compressed air is conncted to the tube, then used to cleaning the bottle
Your reliable and fist choose machine supplier
* Inquiry and consulting support.
* Free samples testing
* View our Factory.
* Full sets spare parts
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 7*24 hours online free services
|
Packaging
|
|
|
|
Size
|
2600 (L) * 1500 (W) * 2200 (D)
|
|
|
Weight
|
500kg
|
|
|
Packaging Details
|
The normal package is packed by standard export ply wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
We have machine can automatic feeding plastic/glass bottless to filling machine.
Machine can finish automatic bottles filling and capping/crimping. Can add dust cover as demands.
Labeling machine is suitable for various bottles and adjustable. We also have one side or two side labeling machine for choose
We adopts peristaltic pump for small 1~30ml small bottle filling and capping.
We adopts plunger pump for high density paste filling. Also equiped with mixture and heating devices for some special paste.
For bigger size bottles or higher speed demands, we can customize more filling nozzle and capping nozzle machine as demands.
Q1. How to customize
glass jar rinsing machine
A: Firstly, Show us all your bottles size and shape, and the washing speed you need. Secondly, we offer you suitable solutions for choose. Thridly, Make decisions and begin machine production.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and after machine finished and machine checking TT70% before delivery.
Q3. Do I need send samples bottles for testing?
A: Certainly, it is necessary for machine customiztion.
Q4. How about your delivery time?
A: Generally, it will take 30-45 days after receiving your deposit payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or drawings.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery, we will also show you video before shipment.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit; All machines is well tested before delivery. Full videos and manual book teaching using machine.
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
