Quick Details
-
Voltage:
-
380V 50HZ or customized
-
Power:
-
8.5KW
-
Dimension(L*W*H):
-
6900*3900*2650(mm)
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Video technical support
-
Usage:
-
furniture paint room
-
Application:
-
Furniture products
-
Certificate:
-
CE and ISO
-
Heating system:
-
Infrared lamps or diesel burner for option
-
Wallboard:
-
EPS or rock wool
-
Filteration:
-
3 process
-
Lighting:
-
LED or others
-
Weight:
-
3-8t
Quick Details
-
Machine Type:
-
Water curtain paint booth, Spray Booths, Painting Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Qiangxin
-
Voltage:
-
380V 50HZ or customized
-
Power:
-
8.5KW
-
Dimension(L*W*H):
-
6900*3900*2650(mm)
-
Weight (KG):
-
2000
-
After-sales Service Provided:
-
Video technical support
-
Usage:
-
furniture paint room
-
Application:
-
Furniture products
-
Certificate:
-
CE and ISO
-
Heating system:
-
Infrared lamps or diesel burner for option
-
Wallboard:
-
EPS or rock wool
-
Filteration:
-
3 process
-
Lighting:
-
LED or others
-
Weight:
-
3-8t
Sale CE Approved Water Curtain Type Paint Booth For Furniture Factory
Advantages:
1.Factory direct sale
2.One year warranty
3.100% inspection before deivery,100% trade assurance protection
4.Advanced stable electric control system
5.Can be add drying baking room
6.Installation instruction service
7.Experienced in shipping
8.CE/ISO/RCM certificate
Contact Jessica now for further information.
| Inside Dimenions | 6900×3900×2650(mm)(LxWxH) |
| Outside Dimenions | 7000×5200×4000(mm)(LxWxH) |
| Entrance Door | Aluminum alloy binding framework(thickness: 1.8mm),1 set side hung door size: 2000*2000(mm)(W*H) |
| Wallboard | 50mm EPS(epispastics polystyrene )insulation material with S=0.476mm two side steel panel |
| Roof | 50mm EPS(epispastics polystyrene )insulation material with S=0.476mm two side steel panel |
| Floor | anti-rust galvanized grille plus beam channel steel. |
| Lighting | Lamp boxes are 45° fixed on upper two side,with 8 groups*4pcs=24pcs 20w energy saving LED lamp |
| Air Ventilation |
2 sets intake air fans,each set parameter:RRX-180.1.5kw.12500m3/h
|
| Filteration |
-Air inlet with prefilter.
|
| Electric control box | Painting , Breakdown Indicator, Power Switch, Emergency Stop Switch |
| Voltage Frequency | 380V 50HZ three phase |
| Total power | 8.5KW |
| Remarks |
welcome to contact Jessica for latest information~ NOTES:we produce this paint booth according to customers' requested dimension and requipments,we hope you can send us this information in your inquiry message. |

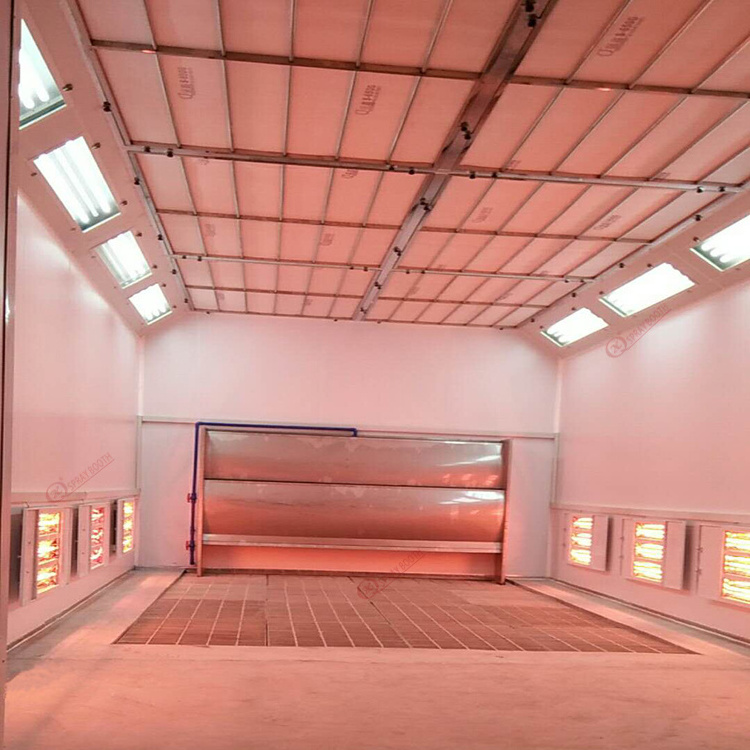

Our project photo for reference.Photo are all rights reserved.
One set be loaded in one 20GP container.
