Quick Details
-
Local Service Location:
-
None
Quick Details
-
Brand Name:
-
BANGLONG
-
Type:
-
horizontal double piston
-
Model Number:
-
BW850-2B
-
Local Service Location:
-
None
Product Description
Specification
Function:
Mainly used for 200-600 meters depth big hole drilling for water and geologic well mud pumping service, may speed up the drilling
speed.
Structure feature:

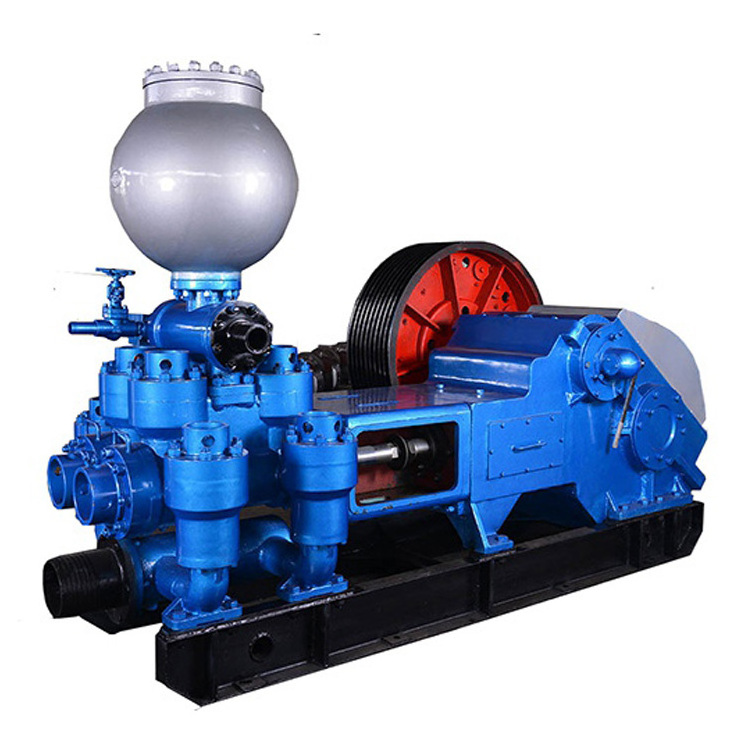

The BW850-2B model mud pump is a horizontal double piston and double action pump, with simple structure and size, leading lower
failure rate. Lower noise and working properly, used with bi metal liner for longer working life.
Main data list:
speed.
Structure feature:
The BW850-2B model mud pump is a horizontal double piston and double action pump, with simple structure and size, leading lower
failure rate. Lower noise and working properly, used with bi metal liner for longer working life.
Main data list:
|
Liner dia （mm）
|
150
|
|
Piston stroke （mm）
|
180
|
|
Rated flow rate （L/min）
|
600 850
|
|
Rated pressure (MPa)
|
3 2
|
|
stroke (min-1)
|
58 82
|
|
I.D.sunction pipe (mm）
|
127
|
|
I.D.discharge pipe （mm）
|
64
|
|
Input speed (r/min)
|
470
|
|
Input power （kw）
|
40
|
|
Overall dimensions (mm)
|
2000×1030×1400
|
|
Weight (without motor) (kg)
|
1500
|
